HG32 Pipe Production Line

HG32 Pipe Production Line thumbnail-1
HG32 Pipe Production Line photo-1
US$ 44,444 - 777,777 MOQ: 1 Set
Key Specifications
Get Latest Price
Type:
Other, Pipe Production Line, Pipe production line
Pipe Material:
Carbon Steel
Application:
Drain Pipe
Contact Supplier Request Quote Chat Now
Shijiazhuang Zhongtai Pipe Technology Development Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjin
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Type Other, Pipe Production Line, Pipe production line
Pipe Material Carbon Steel
Application Drain Pipe
Place of Origin Hebei, China
Brand Name ZTZG
Model Number HG32

Specifications

Commodity: Pipe production line
Pipe OD: 10mm-32mm
Square tube: 10mm*10mm -25mm*25mm
Thickness: 0.6mm-2.0mm

Commodity: Pipe production line



I. Brief introduction:

HG32  welded pipe making machine is designed to produce welded pipes of 10mm-32mm in OD and 0.6mm-2.0mm in wall thickness, as well as corresponding square and rectangle tube.



Its  Basic Technical Information:

II. Specification of pipes

Pipe OD: 10mm-32mm                  Thickness: 0.6mm-2.0mm

Square tube: 10mm×10mm -25mm×25mm, Thickness: 0.6mm-1.5mm

Length: 6 -12m                         Length Tolerance: ±3mm

2. Raw Material:

Material:  Carbon steel coil(GB Q195-Q345); Alloy steel coil; API 5L X42-X80

 3. Tube mill:

Production Speed:  20-80 m/min

Direction:

left to right or right to left from operator`s side decided by customers.



III. The technical flow of the production line

Uncoiling→Shear & butt welding→Cage looping (Accumulating)→Forming → HFwelding→Removing outsied Bead →Cooling→Sizing→Cutting off→Conveying →Downloading → Packing →Warehousing



IV. Makeup of tube mill line

1. Double-reel Mechanical Uncoiler

2. Shear & Butt Welder

3. Cage Loop(Accumulator)

4. Tube mill

5. Solid State H.F. welder

6. NC Flying Saw

7. Output Rollway

8. Rollers

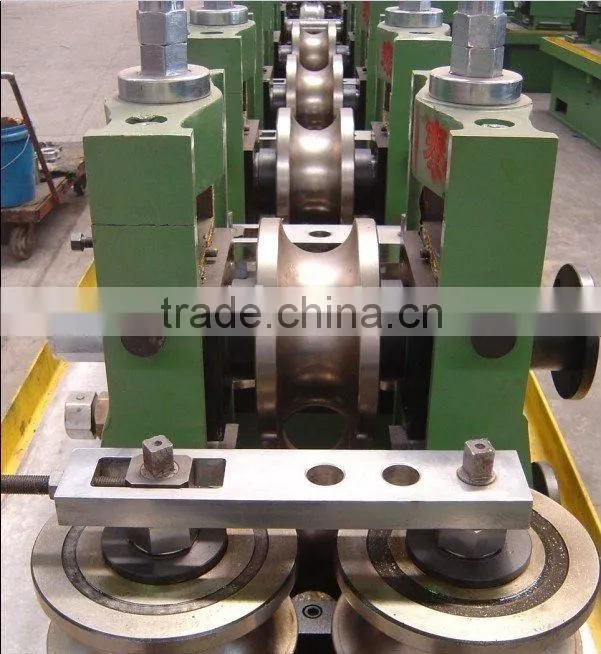

HG32 pipe production line
