Specifications
wireless transmission equipment1.Modulation:COFDM
2.Frequency:300-860MHz
3. Transmission power:1.5w
1.5w cctv outdoor wireless transmission equipment
Products Preview:
ST6000TM-1.5W wireless transmission equipment
Main Features:
1.COFDM modulation, Stable transmission
2.MPEG-2 video compression, DVD video quality
3.Mobile and NLOS(Non line-of-sight) transmission
4.High strength aluminium enclosure, dustproof, waterproof and shockproof

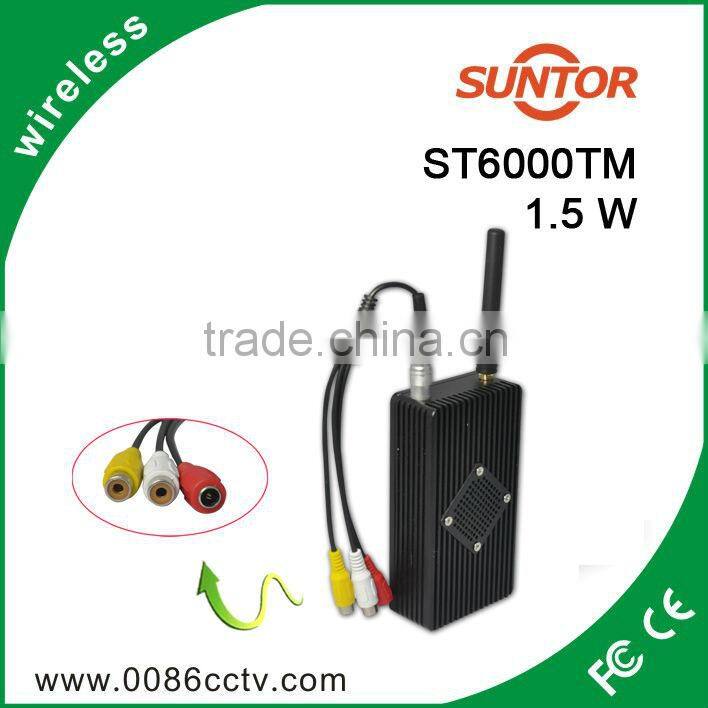

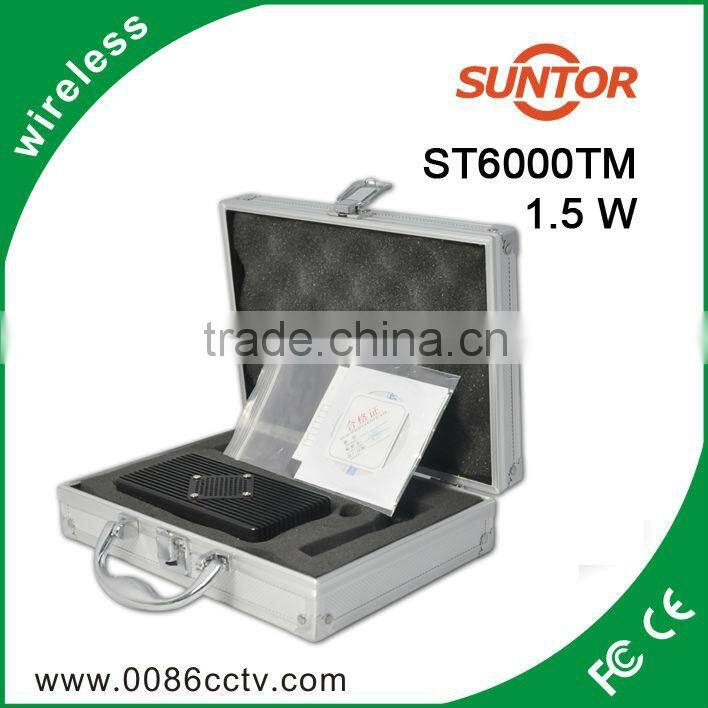

Products picture
ST6000TM-1.5W wireless transmission equipment

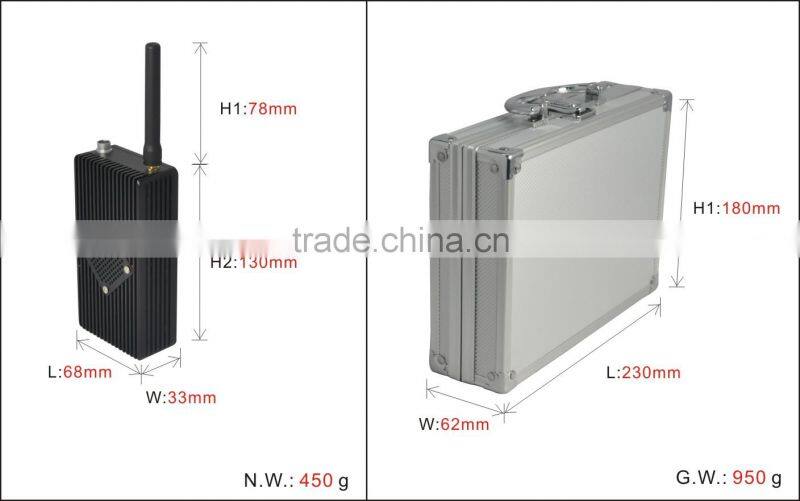

The dimension picture
ST6000TM-1.5W wireless transmission equipment
Transmitter Specification:
ST6000TM-1.5W wireless transmission equipment
Modulation |
COFDM |
Transmitter power |
1.5W |
Bandwidth |
(optional) MHz 2/4/8 |
Constellation |
64QAM , 16QAM, QPSK |
Guard Interval |
1/4, 1/8, 1/16, 1/32 |
Video Signal |
PAL, 1Vp-p@75Ω |
Resolution |
720×576 @ 8MHz, 352×288 @ 1.25MHz |
Video Compression |
MPEG-2 (4:2:0) / MPEG-4 (optional) |
Frequency |
300MHz-399MHz,400-500MHz (customized), |
560MHz-760MHz,760MHz-860MHz (customized) | |
Frequency is adjustable continuously | |
TransmissionRange |
LOS: more than 10kms (mini transmitter works only) |
NLOS: more than 1km (mini transmitter works only) | |
Working Voltage |
AC 220V /DC12V |
Motion Speed |
180km/hMore than |
Power Interface |
Standard |
RF Interface |
Standard N female |
Protection |
Antirust and shockproof |
Power Output |
22dBm-24dBm (up to 33 dBm with the amplifier) |
Battery |
50 minutes continuous working time |
Temperature |
50°C~+-20°C |

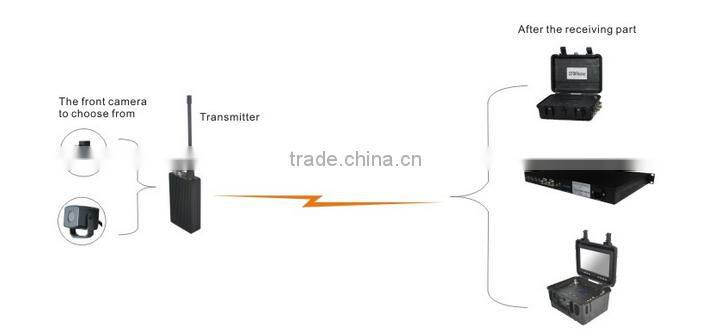

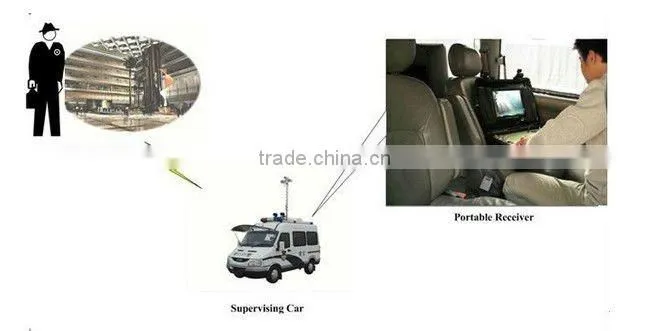

Product application
ST6000TM-1.5W wireless transmission equipment
Professional manufacturer with more than 7 years experience in wireless transmission area
Factory show
Certification show
1.All goods are packaged strictly . No worry issues which happen in shipping .
2.DHL , UPS , TNT , FeDex , EMS and Aramex are used according to customers requirement . Goods could be shipped to all countries in time .
3.Samples could be shipped in 3-5 workdays .
1. we accept all terms of trade
2. we provide professional system design and construction
3. lifelong maintenance
4. 24-hour technical support
5. we have 7 years experience in wireless transmission area, we are professional factory, so we can provide you :
> high quality products,
> better product pre-sales and after-sales service,
>competitive prices,
> and shorter delivery.
COFDM Wireless mobile video transmission equipment
Outdoor digital wireless network bridge transmission equipment
Long-range analog wireless video transmission equipment
Portable mini wireless AV transmitter receiver
Wireless PTZ command & data transmission equipment
3G Wireless Video Transmission Equipment
Welcome to contact us for any question anytime, we will provide more details for you.
