Main Features:
- COFDM modulation, Stable transmission
- MPEG-2 video compression, DVD video quality
- Mobile and NLOS(Non line-of-sight) transmission
- High strength aluminium enclosure, dustproof, waterproof and shockproof
- Lithium battery for power supply(continuous working time of every battery is an hour)
- Modular design and highly integrated
- Adjustable working frequency

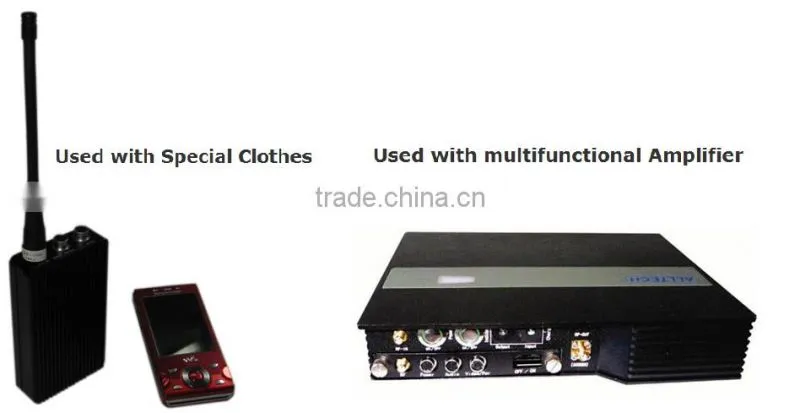

- Can be used conveniently with the specially designed clothes
- Transmission security by encryption of AES 128 bit/ ALLTECH Basic Scrambling

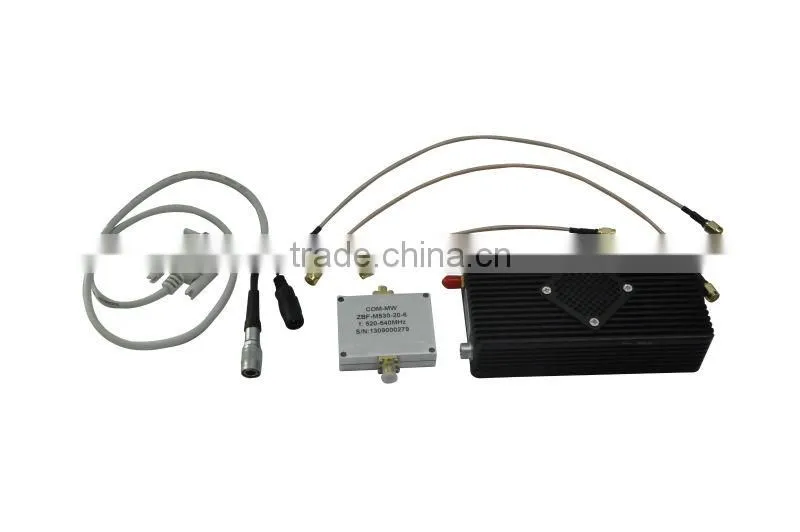

- Matched with multifunction amplifier for longer range requirement. The transmission range can be up to 80km in LOS (line-of-sight) condition
Specification:
| Transmitter : | |
| Modulation | COFDM |
| Bandwidth | 2/4/8MHz (optional) |
| Constellation | QPSK,16QAM,64QAM |
| FEC | 1/2,2/3,3/4,5/6, 7/8 |
| Guard Interval | 1/4, 1/8, 1/16, 1/32 |
| Video Signal | 1Vp-p@75Ω,PAL |
| Resolution | 720x576 @ 8MHz, 352x288 @ 1.25MHz |
| Video Compression | MPEG-2 (4:2:0) / MPEG-4 (optional) |
| Frequency | 300MHz-399MHz,400-500MHz (customized), |
| 560MHz-760MHz,760MHz-860MHz (customized) | |
| Frequency is adjustable continuously | |
| Transmission rage | LOS: more than 20kms (mini transmitter works with amplifier) |
| NLOS: more than 1000-2000m (mini transmitter works with amplifier) | |
| Working Voltage | AC 220V /DC12V |
| Motion Speed | more than 180km/h |
| Power Interface | Standard |
| RF Interface | Standard N female |
| Protection | Antirust and shockproof |
| Power Output | 22dBm-24dBm(up to 33dB with the amplifier) |
| Latency | ≤80ms |
| Battery | 50 minutes continuous working time |
| Temperature | -20°C~+50°C |
| Humidity | ≤95% |
| Encryption | AES 128 bit / ALLTECH Basic Scrambling (RS232 serial port) |
| Second Harmonic | ≤-43dB |
| Dimension | Mini transmitter 130*68*35mm |
| Power amplifier 151*195*47mm | |
| Weight | 0.35kg (mini transmitter + battery) |
| Receiver | |
| Bandwidth | MHz (optional) 2/4/8 |
| RF Level | -94dBm~-20dBm |
| RF Impedance | 50Ω |
| Receive Frequency | 170-860MHz VHF&UHF |
| DC Output | DC 10.5V+/-0.5V |
| Constellation | 64QAM (optional),16QAM,QPSK |
| FEC | 5/6, 7/8 (optional),3/4,2/3,1/2 |
| Carrier | 2K |
| Decryption: | AES 128 bit / ALLTECH Basic scrambling |
| RS232 serial port for configuration | |
| Guard Interval | 1/4 (optional),1/8,1/16,1/32 |
| Video Decoding | ISO/IEC13818-2 (MPEG2 video) MP@ML |
| Aspect Ratio | 4:3, 16:9 |
| Resolution | 720 x576 |
| Audio Output | Stereo unbalanced (300/200 mV) |
| AV Output | 2 audio+2 video |
| Video Record | H.264 |
| USB Interface | USB 2.0 (Flash memory disk can be connected ) |
| Control Protocol | PELCO-P/D |
| Control Frequency | 433MHz |
| Control Modulation | GFSK |
| Power Supply | 2A<AC220V/DC12V |
| Working Current | @DC 12.5V2.5A< |
| Temperature | 50°C~ +-20°C |

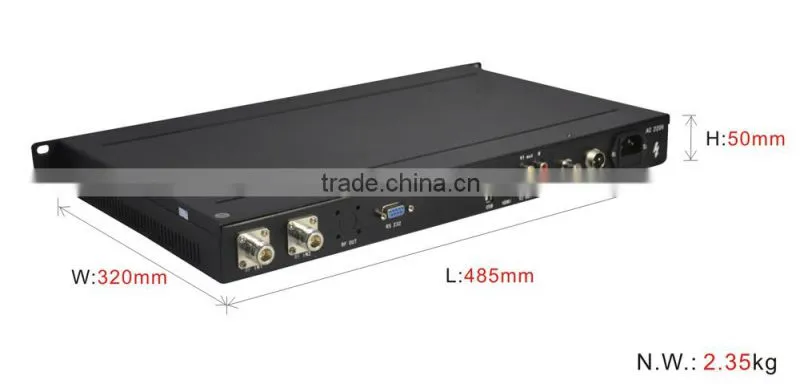

| Dimension | )1U Aluminium alloy box(480*260*45 |
| Weight | 2.5kg |

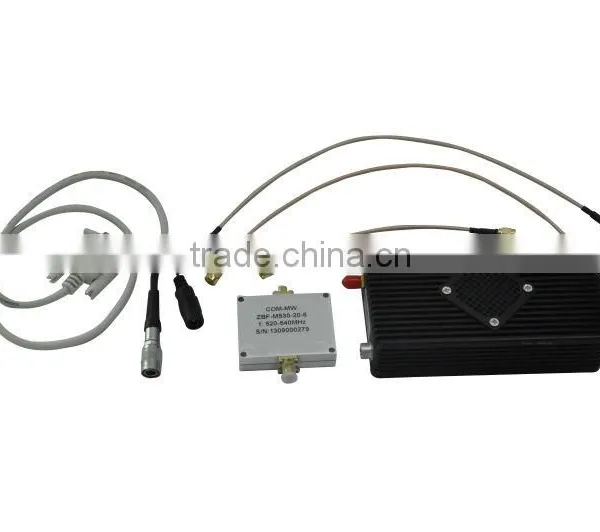

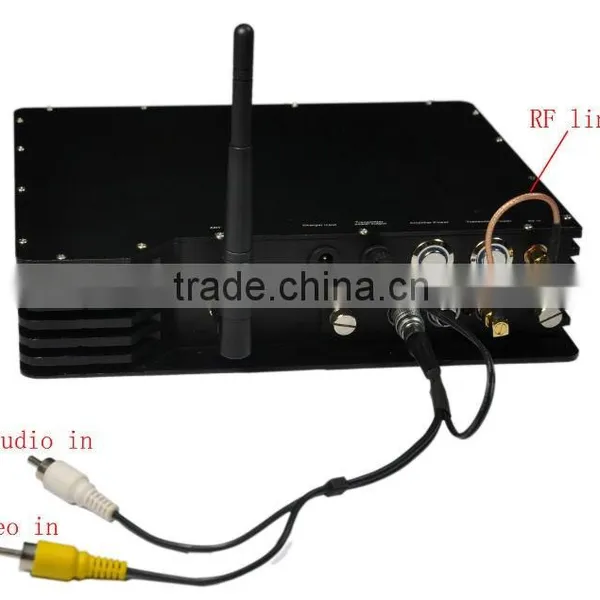

Product show:

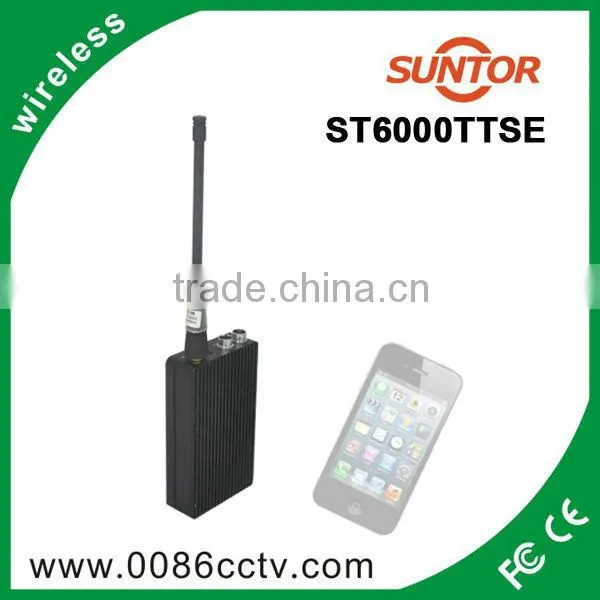

ST6000TTSE COFDM wireless hdmi video transmitter

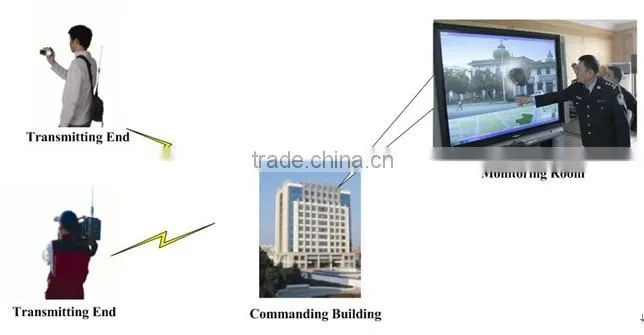

Application:
ST6000TTSE COFDM wireless hdmi video transmitter
The product is an ideal solution in remote surveillance, designed specially for the covert intelligence gathering market. By using a pinhole camera, the first responder can catch live scenes at the accident ground. Then the mini transmitter sends real-time images to the receiving center.
The COFDM mini transmitter is a new concept in remote surveillance, designed specially to meet the special requirements of covert missions. This product is modular design and highly integrates the antenna, digital modulation and AV compression into one. Every lithium battery can support the system to work for an hour continuously .If used with the multifunctional amplifier, longer transmission range can be up to 80kms in LOS (line-of-sight) environment. In the receiving center we use a portable multifunctional receiving suitcase(MV2025R/YJBK) that can record the real-time video by USB interface and control the PTZ in NLOS (non line-of-sight) condition.

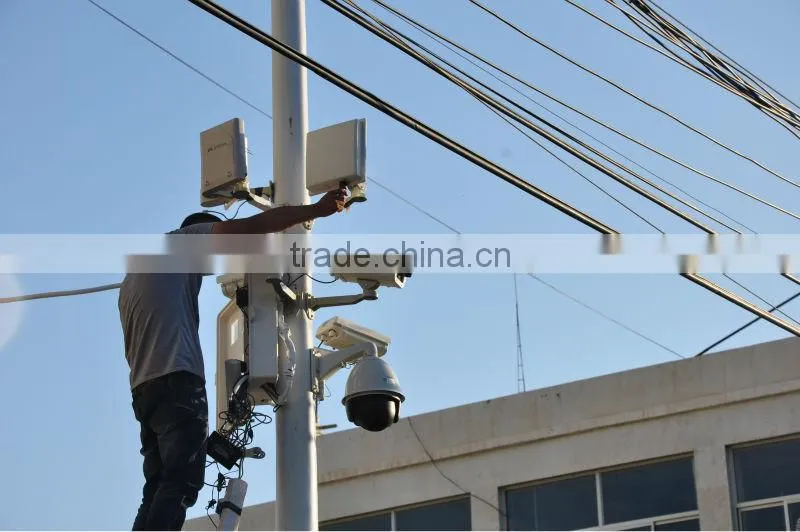

Project cases

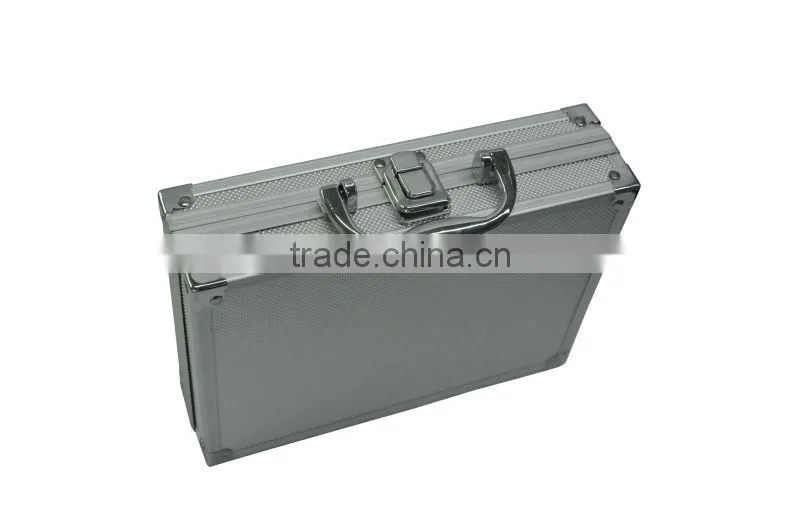

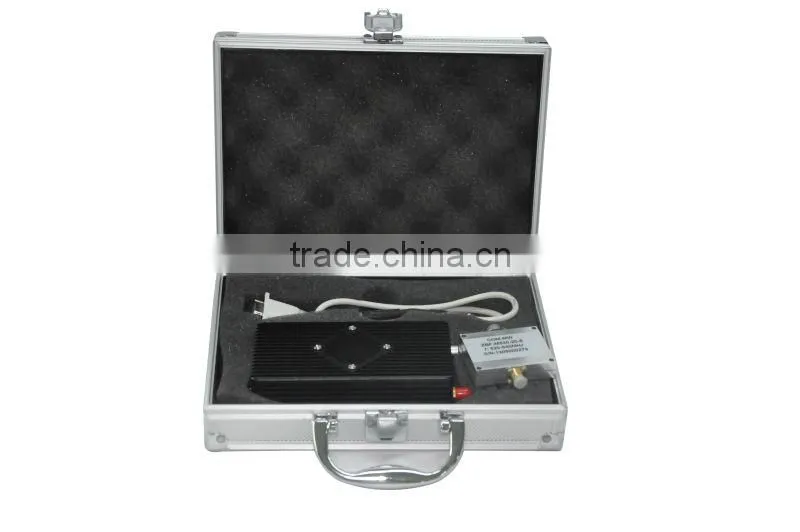

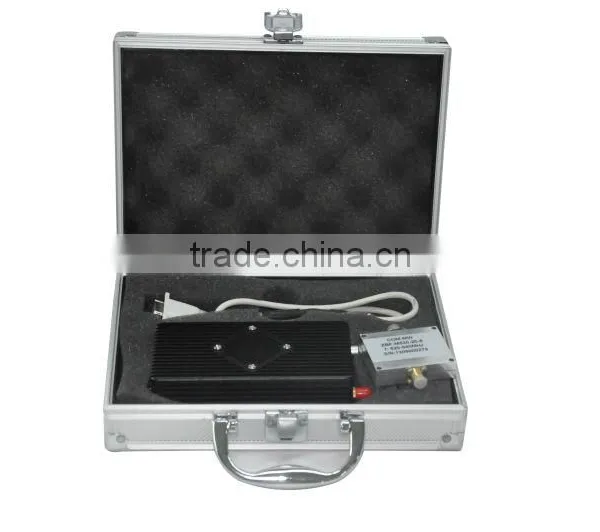

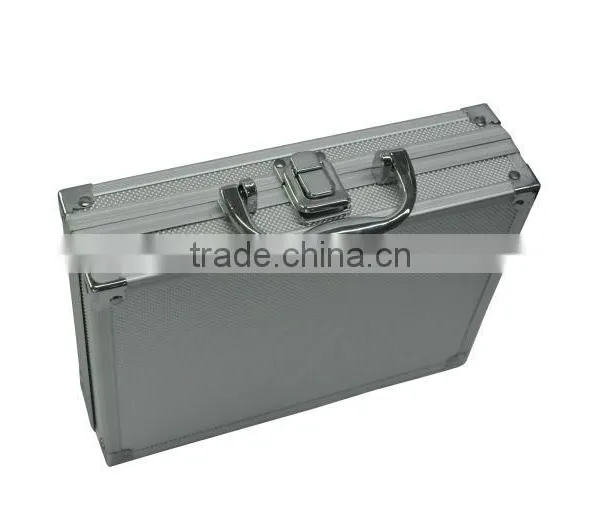

Package:
Packing details:
- 1 X Tx
- 1 X user manual
- 1 X Tx Antenna
- 1 X Audio cable
- 1 X Video cable
- 1 X Li battery
- 1 X Tx battery charger
- 1 X RS232 data control cable
