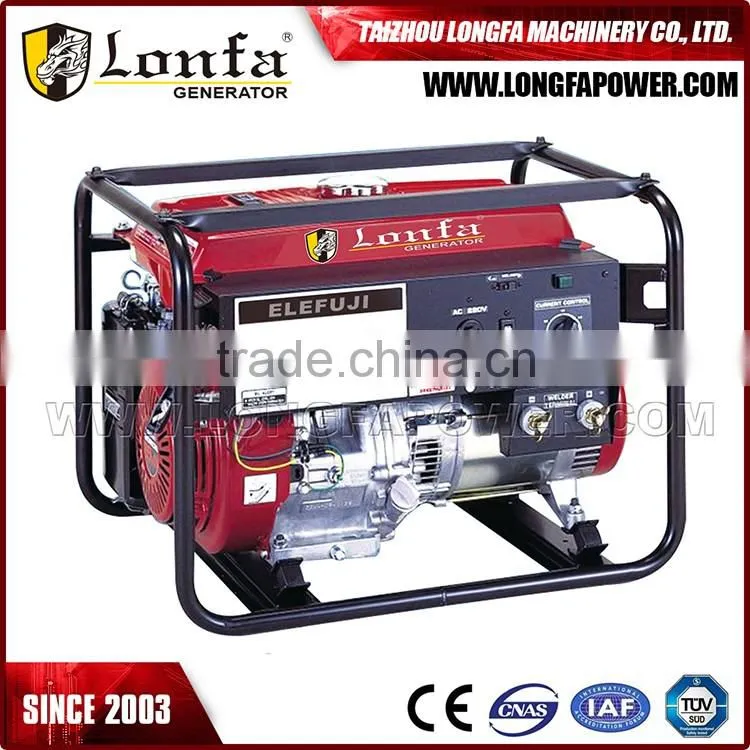

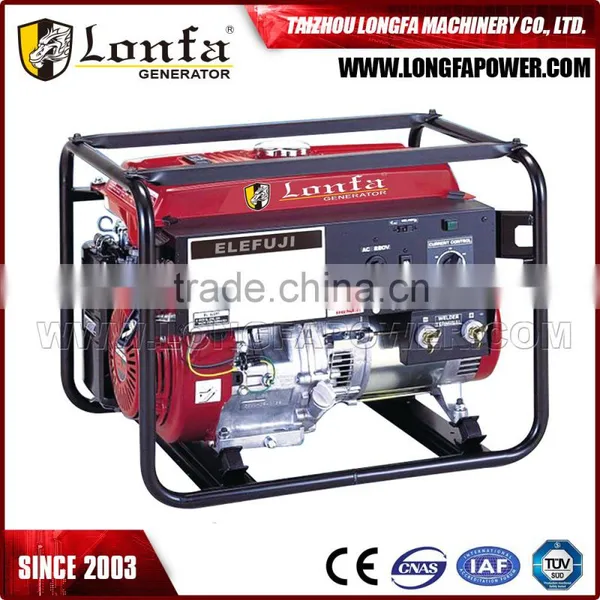

GX390 Honda Welding Generator SHW190 Gasoline Welding Machine Generator

GX390 Honda Welding Generator SHW190 Gasoline Welding Machine Generator photo-1
US$ 468 - 502 MOQ: 50 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
LONFA/ ANDITIGER
Model Number:
SHW190
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Zhejiang, China
Brand Name LONFA/ ANDITIGER
Model Number SHW190
Voltage 220(AC)
Current 50-190A
Rated Capacity 17L
Rated Duty Cycle 50%-100%
Dimensions 690x510x520mm
Weight 86kg
Usage Welding Machine
Certification CE, ISO9001, SONCAP, EPA
After-sales Service Provided Overseas service center available
Gasoline Generator

GX390 Honda Welding Generator SHW190 Gasoline Welding Machine Generator

Related Products

GX390 Honda Welding Generator SHW190 Gasoline Welding Machine GeneratorGX390 Honda Welding Generator SHW190 Gasoline Welding Machine Generator

GX390 Honda Welding Generator SHW190 Gasoline Welding Machine GeneratorGX390 Honda Welding Generator SHW190 Gasoline Welding Machine Generator

Products Parameter

GX390 Honda Welding Generator SHW190 Gasoline Welding Machine Generator

NAME ITEM SHW190
Engine Engine Model GX390
Type 4-Stroke,OHV,1cylinda
Displacement(CC) 389
Bore x Stroke(mm) 88x64
Cooling system Air cooling
Ignition system Transistorized magneto ignition
Start system Recoil/Electric
Generator Rated voltage(V) 220(AC)
Rating frequency(Hz) 50/60
Rated current 9.1A(AC)
Rated output 50Hz 2.5kVA(AC)
Rated output 60Hz 3kVA(AC)
Rated power factor 0.8/1.0
Phase Single
Type 2-pole,rotating type
DC Welder Rated Max.current(A) 140
Load voltage(V) 27.2
Current range(A) 50-190
Max.current duty cycle(%) 50
Applicable welding rod diameter(mm) 2.5-5.0
Rated Revolving Speed(r/min) 3600
No-load voltage(A) 70
Idle control Automatic
Rectifier type Six phase half wave rectifier
Other Fuel tank capacity(L) 17
Length x  width x height(mm) 690x510x520
Net weight(kg) 86



Products Overview

GX390 Honda Welding Generator SHW190 Gasoline Welding Machine Generator  GX390 Honda Welding Generator SHW190 Gasoline Welding Machine Generator

GX390 Honda Welding Generator SHW190 Gasoline Welding Machine Generator



Company Information

GX390 Honda Welding Generator SHW190 Gasoline Welding Machine Generator

Packaging & Shipping

GX390 Honda Welding Generator SHW190 Gasoline Welding Machine Generator

FAQ

GX390 Honda Welding Generator SHW190 Gasoline Welding Machine Generator

1.Q:What is the Quality Warranty for the products?

A:We offer 1 year quality warranty for all of our products.



2.Q:Where is your factory located? How can I visit there?

A: Our factory is located in Taizhou City, Zhejiang Province, China, about 2 hours train from Shanghai . All our clients, from home or abroad, are warmly welcome to visit us!



3.Q:What is the material of your products?

A: Only New material can be used for our products.

Materials for Generator: 100% Pure Crankcase, 100% Pure Copper Wire

Materials for Water Pump: 100% Pure Auminium Pump body and Crankcase



4.Q:What is Minimum Order quantity?

A: MOQ 50/100 pieces for different products.

You are welcomed to consult for details.



5.Q:How does your factory do regarding quality control?

A: From the internal parts to the outside packing, we not only make standard quality test,but also think ahead for a better solution. Except company QC system, We have achieved CE & SONCAP certificate.
