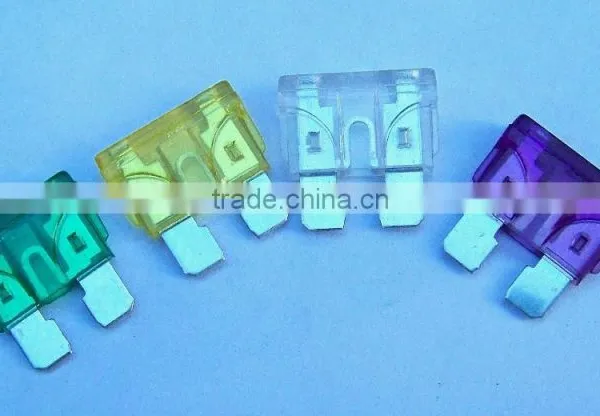

Max Car Fuse

Max Car Fuse thumbnail-1
Max Car Fuse photo-1
US$ 0.25 - 0.3 MOQ: 1000 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
ANDU
Model Number:
MAX-40A
Contact Supplier Request Quote Chat Now
Dongguan Andu Electronic Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
YANTIAN
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name ANDU
Model Number MAX-40A
Usage Automotive
Breaking Capacity High
Safety Standards IEC
Dimensions (mm)



Specifications
Voltage Rating: 63 VDC
Interrupting Ratings: 1000A @ 63 VDC
Operating Temperature Range: -40C to +125C
Terminals: Ag plated zinc alloy
Housing Material: PA66
Complies with: SAE J 1888
ISO 8820-3:2002(E)
Time-Current Characteristics
% of Rating Opening Time
MINI MAX
100 4H /
135 60S 1800S
200 2 S 60 S
350 0.20S 7S
600 0.040S 1S
Ratings
TYPE Rating Current(A) Rating Voltage(V) Typ. Voltage Drop(mV) Cold Resistance
(mΩ)		 I2t Color
MAX-20 20A 32V/48V/63V 76 3.10 1100 yellow
MAX-25 25A 32V/48V/63V 75 2.39 2087 Grey
MAX-30 30A 32V/48V/63V 77 1.95 4070 green
MAX-40 40A 32V/48V/63V 75 1.71 6032 amber
MAX-50 50A 32V/48V/63V 75 1.42 8450 red
MAX-60 60A 32V/48V/63V 73 1.10 11300 blue
MAX-70 70A 32V/48V/63V 77 0.89 15300 brown
MAX-80 80A 32V/48V/63V 61 0.64 6900 white
MAX-100 100A 32V/48V/63V 52 0.45 9600 brown

Time-Current Characteristic Curves

 Temperature Rerating Curve
