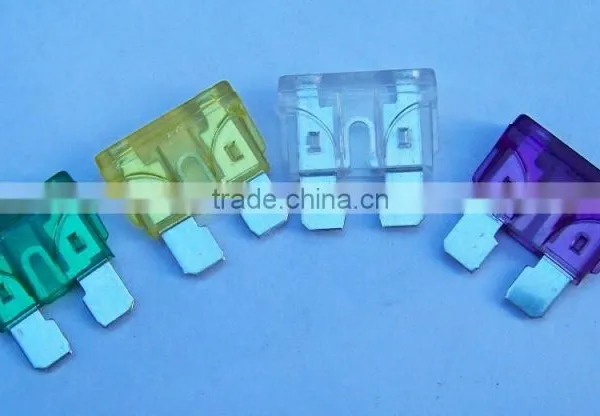

Car Fuse

Car Fuse thumbnail-1
Car Fuse photo-1
US$ 0.025 - 0.3 MOQ: 1000 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
ANDU
Model Number:
car fuse
Contact Supplier Request Quote Chat Now
Dongguan Andu Electronic Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
YANTIAN
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name ANDU
Model Number car fuse
Usage Automotive
Breaking Capacity High
Safety Standards IEC

Dimensions (mm)



Specifications
Interrupting Rating: 1000A @ 63 VDC
Voltage Rating: 63 VDC
Operating Temperature Range: -40 C to +125 C
Terminals: Ag plated zinc alloy
Housing Materials: PA66
Complies with: Meets SAE J2077
 ISO 8820
 UL 248 Special Purpose Fuses

Time-Current Characteristics

% of Rating Opening Time
Nennstrom		 Opening Time Min / Max (s)
100 35~40 360,000 s / –
110 1~30 360,000 s / –
135 1~2
3~40		 500Ms~600ms
0.75 s / 600 s
200 1~2
3~40		 100ms~5s
0.15 s / 5 s
350 1~40 0.080 s / 500ms
600 1~40 100ms / 150ms

Ratings

Prt Number Rating Current(A) Rating Voltage(V) Typ.
Voltage Drop
(mV)		 ColdResistance
Kaltwiderstand
(mΩ)		 I2t Color
ATC-01 1A 32V/48V/63V 176 123 0.4 Blue Ash
ATC-02 2A 32V/48V/63V 141 53.5 1.4 celandine
ATC-03 3A 32V/48V/63V 137 31.1 7.4 Purple
ATC-04 4A 32V/48V/63V 136 22.8 14 Pink
ATC-05 5A 32V/48V/63V 128 17.85 26 Orange
ATC-075 7.5A 32V/48V/63V 116 10.91 60 Tan
ATC-10 10A 32V/48V/63V 109 7.70 115 Red
ATC-15 15A 32V/48V/63V 102 4.80 340 Blue
ATC-20 20A 32V/48V/63V 98 3.38 520 Yellow
ATC-25 25 32V/48V/63V 92 2.52 1080 Natural
ATC-30 30A 32V/48V/63V 84 1.97 1510 Green
ATC-35 35A 32V/48V/63V 87 1.61 2280 Purp red
ATC-40 40A 32V/48V/63V 96 1.44 3310 Dark red
