Specifications
Rigid PVC Profile PlantCE&ISO
full automatic
single screw extruder
pipe diameter:16-63mm
Rigid PVC Profile Plant
Description:
This line mainly includes extruder, die(mould), vacuum calibration, haul-off, cutter and electric system. This line is mainly used for producing ppr pipe using in the fields as follows:
- Building hot and cold water systems, including central heatig systems.
- Building heating systems, including floor, wall and and radiant heating systems.
- Can be directly used in purified water drinking water supply systems.
- Central(concentration)air conditioning systems
- Transfer or discharge of chemical media,such as industrial nining system
PPR/PP pipe machine process flow:
Main parameter of PPR pipe machinery
Model | PP-R-32 | PP-R-63 | PP-R-110 |
Specifications of extruder | SJ65/30 | SJ90/30 | SJ120/28 |
Pipe Type(mm) | φ 20- φ 32 | φ 40- φ 63 | φ 75- φ 110 |
Production line speed(m/min) | ≥ 3~10 | ≥ 2~6 | ≥ 1.2~4 |
Air pressure(≥ 0.6MPa)(m3/min) | 0.3 | 0.3 | 0.5 |
Cooling water flow rate(m3/h) | 2 | 4 | 8 |
Total power(kw) | 72 | 115 | 150 |
Dimension(mm) | 20000*4000*1700 | 26000*4500*1750 | 30000*5000*1750 |
Weight(kg) | 3500 | 4000 | 4500 |
Hot saled pipe extrusion machine
1.Loader

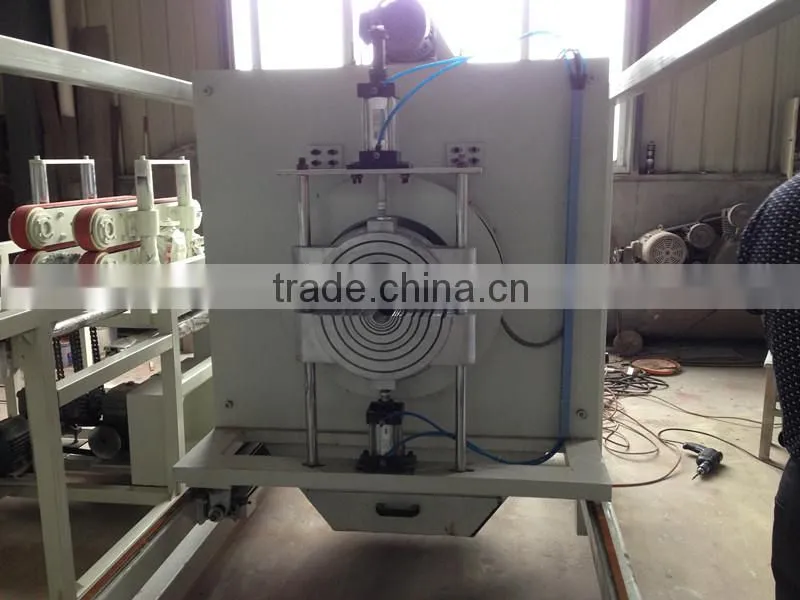

2. Pipe Die Head/Moulds
3. Vacuum Calibrating Water Spraying Cooling Tank
4. Haul off Machine
5. Cutter

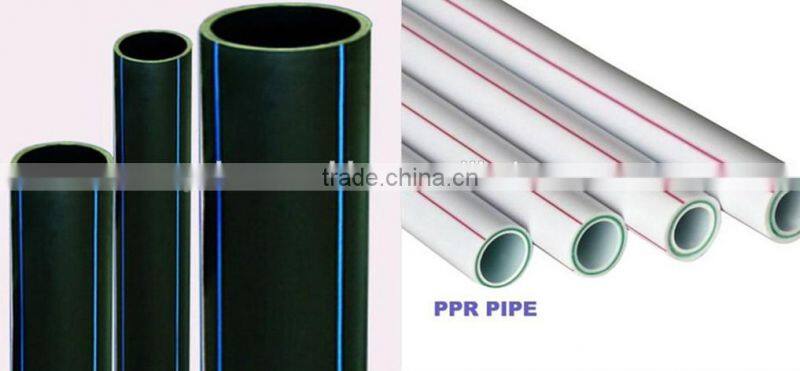

PPR pipe(very clear)
If you are interested in our Rigid PVC Profile Plant ,please feel free to contact us.
Of course, welcome to visit our company!
Contactor:Shirley
Skype:shirley_machine
Send Inquiry to This Supplier
