Specifications
Plastic profile making machinefull automatic

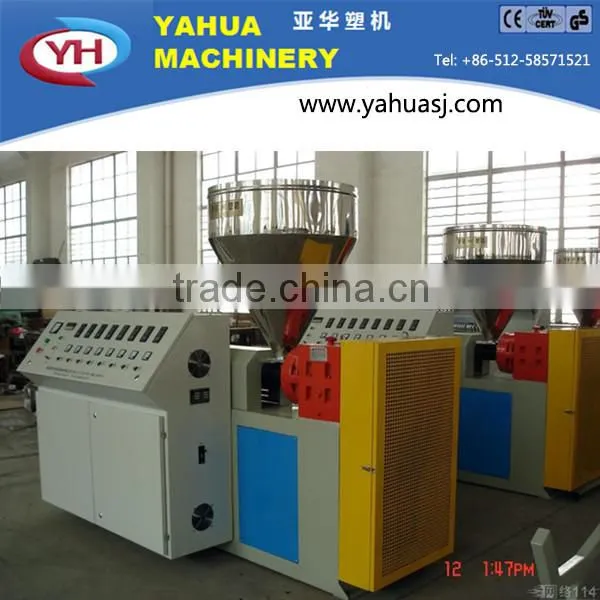

single screw extruder
pipe diameter:16-63mm
Manufacturers for Plastic profile making machine
Description:
This line mainly includes extruder, die(mould), vacuum calibration, haul-off, cutter and electric system. This line is mainly used for producing ppr pipe using in the fields as follows:
- Building hot and cold water systems, including central heatig systems.
- Building heating systems, including floor, wall and and radiant heating systems.
- Can be directly used in purified water drinking water supply systems.
- Central(concentration)air conditioning systems
- Transfer or discharge of chemical media,such as industrial nining system
process flow:
Main parameter of Plastic profile making machine
Model |
PP-R-32 |
PP-R-63 |
PP-R-110 |
Specifications of extruder |
SJ65/30 |
SJ90/30 |
SJ120/28 |
Pipe Type(mm) |
φ 20- φ 32 |
φ 40- φ 63 |
φ 75- φ 110 |
Production line speed(m/min) |
≥ 3~10 |
≥ 2~6 |
≥ 1.2~4 |
Air pressure(≥ 0.6MPa)(m3/min) |
0.3 |
0.3 |
0.5 |
Cooling water flow rate(m3/h) |
2 |
4 |
8 |
Total power(kw) |
72 |
115 |
150 |
Dimension(mm) |
20000*4000*1700 |
26000*4500*1750 |
30000*5000*1750 |
Weight(kg) |
3500 |
4000 |
4500 |
Pictures
1.Loader
2. Pipe Die Head/Moulds
3. Vacuum Calibrating Water Spraying Cooling Tank
4. Haul off Machine
5. Cutter
If you are interested in our Plastic profile making machine ,please feel free to contact us.
Of course, welcome to visit our company!
