Low Price Metal Corrugated Flexible Hose Pipe

Low Price Metal Corrugated Flexible Hose Pipe photo-1
Low Price Metal Corrugated Flexible Hose Pipe photo-2
Low Price Metal Corrugated Flexible Hose Pipe photo-3
Low Price Metal Corrugated Flexible Hose Pipe photo-4
Low Price Metal Corrugated Flexible Hose Pipe photo-5
Low Price Metal Corrugated Flexible Hose Pipe photo-6
US$ 0.19 - 0.49 MOQ: 1000 Meters
Key Specifications
Get Latest Price
Standard:
ASTM, AISI, DIN, EN, GB, JIS
Place of Origin:
Jiangsu, China
Brand Name:
Kingsun
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai Port
Delivery Detail:
Delivery time depends on order quantity.
Standard ASTM, AISI, DIN, EN, GB, JIS
Place of Origin Jiangsu, China
Brand Name Kingsun
Model Number 304
Type Seamless
Steel Grade 300 Series
Application Oil, Electric Cable Wire
Certification ISO
Welding Line Type Seamless
Thickness 1mm-40mm
Outer Diameter 6-630mm
Product Description

 Low Price metal corrugated flexible hose pipe

This stainless steel flexible pipe is used for wire protection at railways,engines, traffic system engineering,air-conditioners, various machineries,automatic controlling equipment,power plants, chemical industries, power distribution system,communication system, vessels, mansions, factory buildings as well as the outdoors' exposed locations.

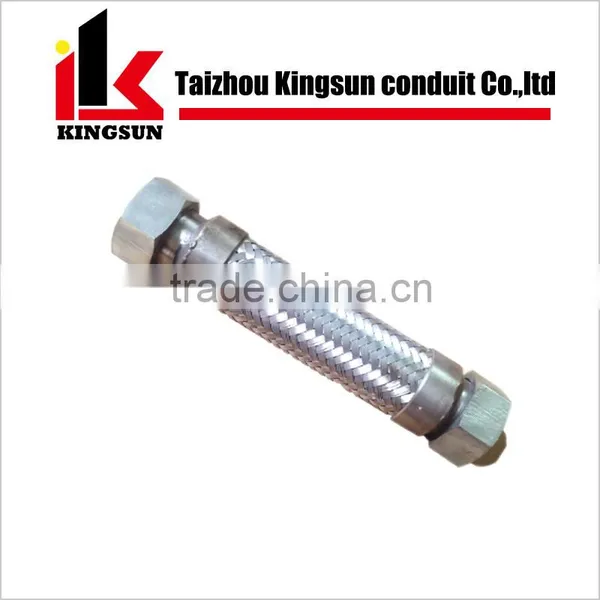

Detailed Images

 Product property:

1.The flexible pipes have extremely good waterproof,insulating and pull resistance.
2.The structure is buckle structure,which enhances the pull resistance and is not liable to crack or deform.
3.Good bending performance,The inner smoothness makes the entry of wires very easy.


Product usage:

Protecting wires/cables and provide insulation, waterproofing as well as beautiful outlook of the wiring.


How to use:

Put the wires/cables through the pipes before fitting correspondent type of DPJ joints.


Product parameter:

Item No.
Specifications
Outer diameter and tolerance
(mm)
Natural curve(mm)
Max.axial pull(kG)
Packaging unit(meter)
Metric
G system
JS-JSBXG-6
ø6
3/16’’
9.00±0.25
40
336
200
JS-JSBXG-8
ø8
1/4’’
11.8±0.30
45
470
200
JS-JSBXG-10
ø10
5/16’’
14.5±0.30
55
590
100
JS-JSBXG-12
ø12
3/8’’
16.5±0.35
60
710
100
JS-JSBXG-13
ø13
3/8’’
17.5±0.35
65
765
100
JS-JSBXG-15
ø15
1/2’’
.20.2±0.35
80
885
100
JS-JSBXG-16
ø16
1/2’’
21.2±0.35
85
940
100
JS-JSBXG-19
ø19
3/4’’
24.5±0.40
95
1120
50
JS-JSBXG-20
ø20
3/4’’
25.5±0.40
100
1180
50
JS-JSBXG-25
ø25
1’’
31.7±0.45
120
1450
50
JS-JSBXG-32
ø32
1  1/4’’
39.6±0.50
150
1885
25
JS-JSBXG-38
ø38
1  1/2’’
46.6±0.60
180
2240
25
JS-JSBXG-51
ø51
2’’
59.5±1.00
220
3000
20
JS-JSBXG-64
ø64
2  1/2’’
73.5±1.50
310
3770
10
JS-JSBXG-75
ø75
3’’
84.5±2.00
350
4400
10
JS-JSBXG-100
ø100
4’’
109.0±3.0
410
4700
10
Packing & Delivery

Packing Details : Film Packing,box or wooden case,according your requirements.
Delivery Details : 7-10 days after we get deposit.

Our Company

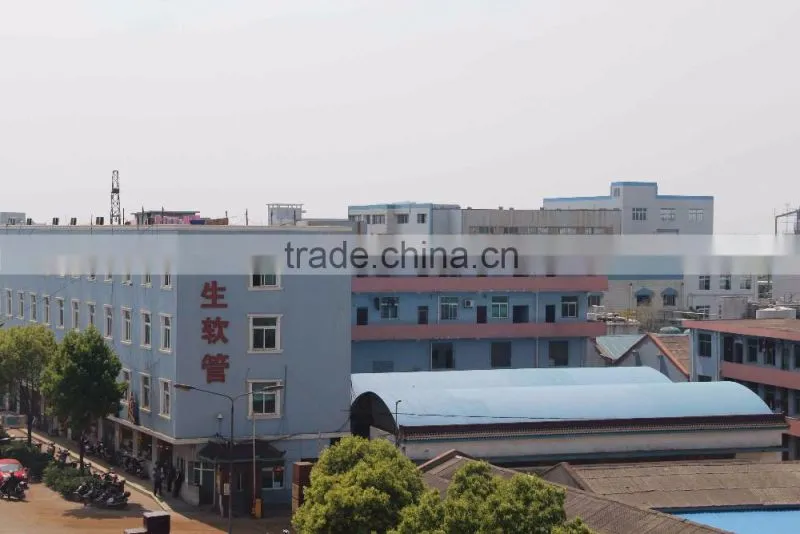

Our factory

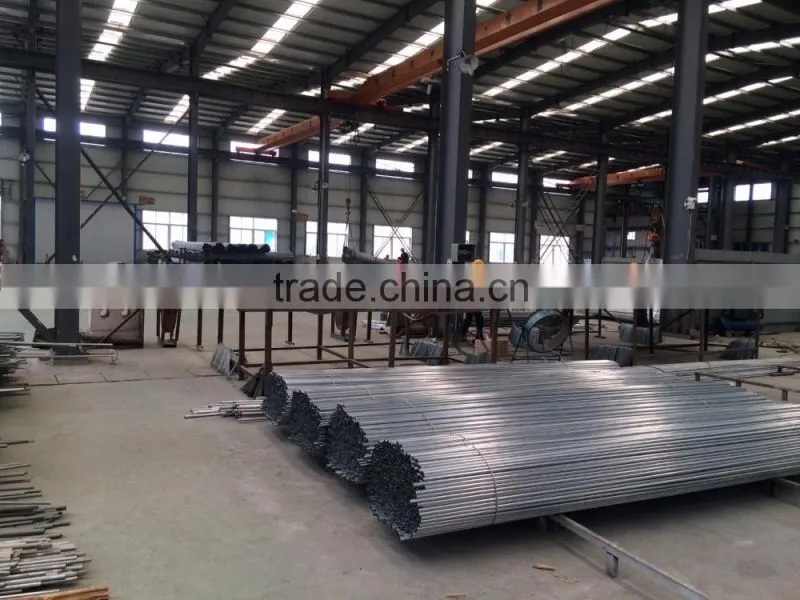

Workshop
