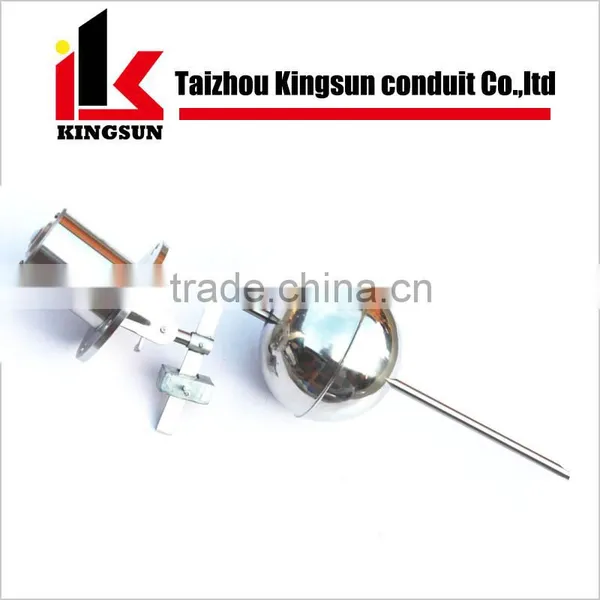

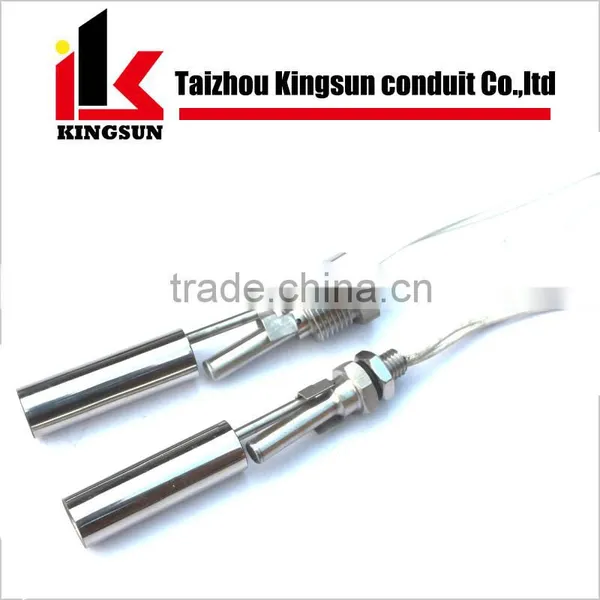

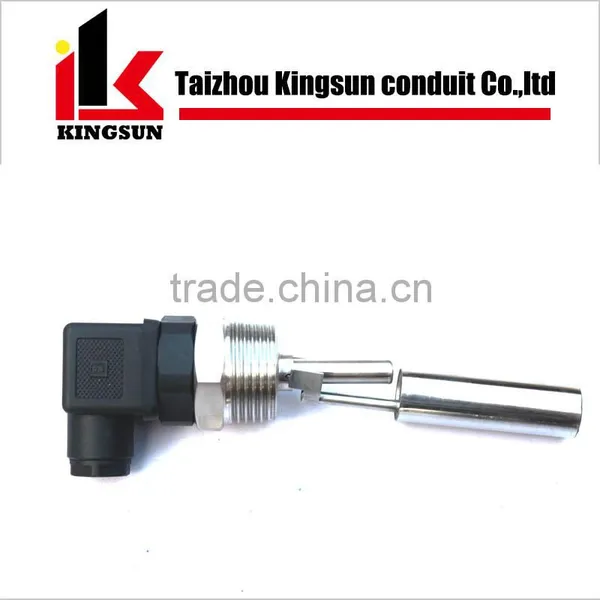

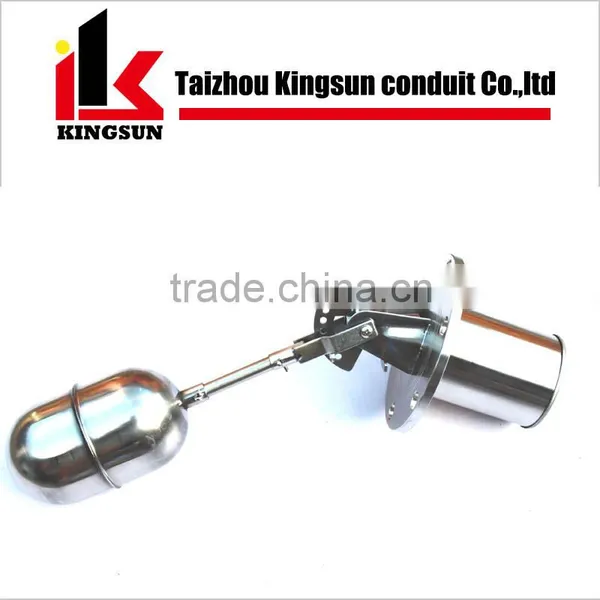

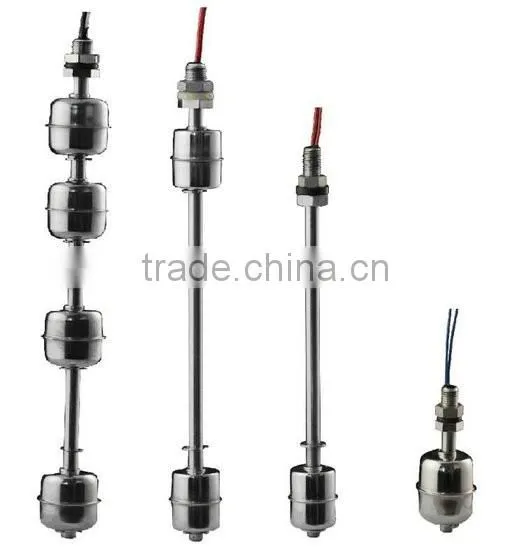

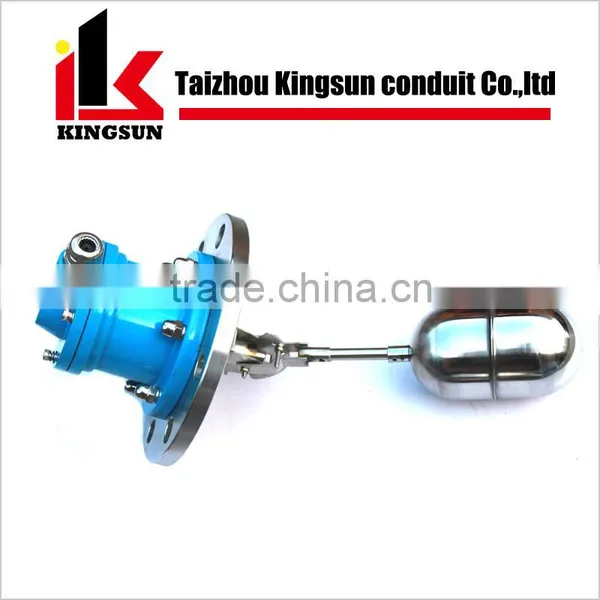

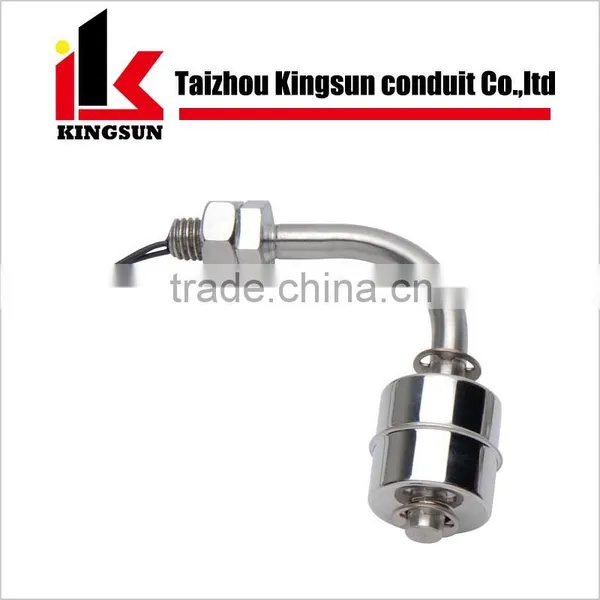

High temperature Stainless Float liquid level controllor
Continuous level float switch can real-time monitoring of liquid level, measurement
accuracy is 4 mm, output can be resistance change value, also can converted into
analog output (current, voltage) and digital output (RS 485 and RS 232) by transmitter.
- Contactless operation
- Customer can defined measuring range
- Long service life, high accuracy, flexible installation
- Diversity signal output
Application of float controller:
- Auto oil tank, oil depot
- Industrial control
- Sewage treatment
- Hydrology monitoring
Main technical parameter for float controller:
| Connection: | flangeDN50~DN150 RF | sanitary DIN cassette | G1", G1/2", G3/8" thread |
| Pipe diameter: | 20mm, 14mm | 20mm, 14mm | 20mm, 14mm |
| Maximum lehgth: | 6000mm, 3000mm | 6000mm, 3000mm | 6000mm, 3000mm |
| Resolution: | 10mm(recommend), 20mm,5mm |
| Float ball: | φ24~φ120 (according to pressure,density,installtion type) |
| Operating temperature: | -40~80°C, -40~120°C |
| High temperature type: | 150°C |
| Medium density: | ≥0.5g/cm3 |
| Output signal: | 2 wire 4~20mADC |
| Power supply: | 16~30VDC |
| Operating pressure: | PN2.5~PN25 |
| Electrical connection: | M20x1.5 female thread |
| Vertical mounting angle: | ≤25° |
| Protection class: | IP65 |
| Explosion-proof grade: | ExiaIICT5 or ExdIICT5 |
Nomal Packaging: Use KINGSON brand wrapping plastic film or brand carton box in condition.
Delivery Detail: 5-15days after we receive all the payment.
