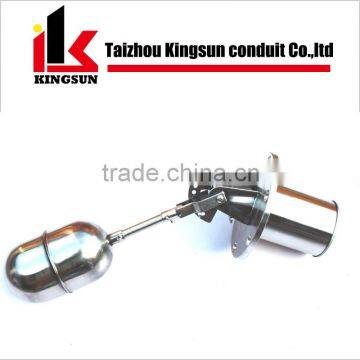

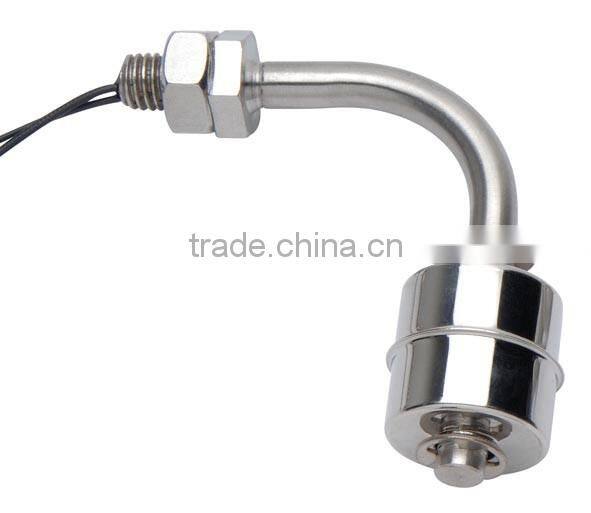

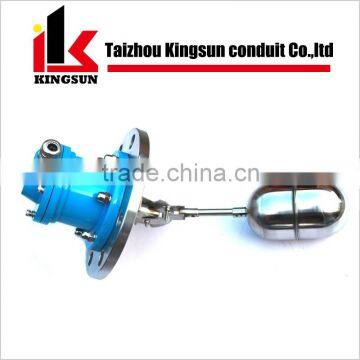

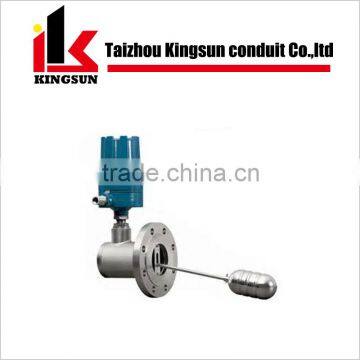

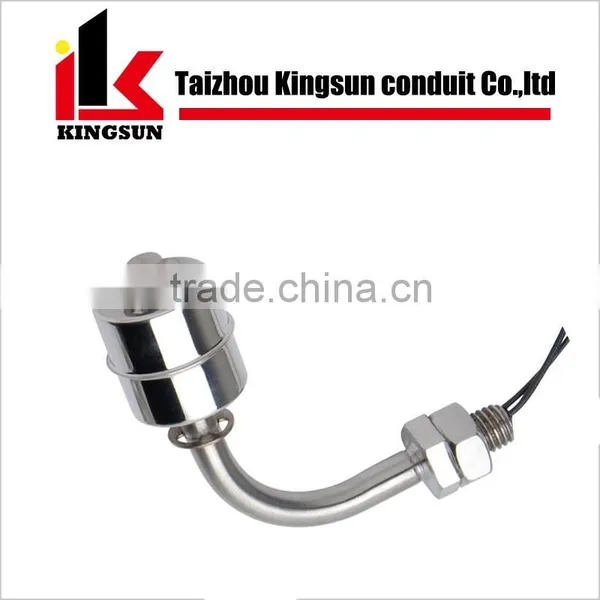

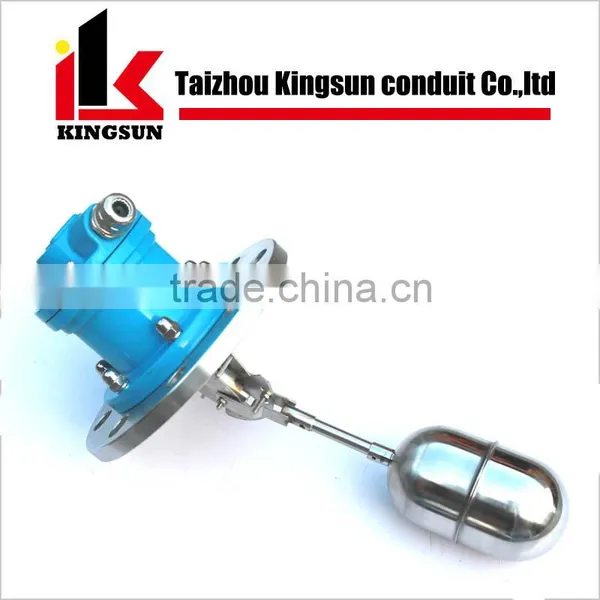

magnetic float level switch water level float controller
Operation manual: float switch valve is mainly composed of magnetic reed switch and float.the float has magnetic material.when the float moves up and down with the measured liquid level,the magnetic reed switch is ON/OFF,and the liquid level position would be checked out.
Use: household appliances(pure water machine,drinking machine,Water dispenser,humidifier,dehumidifier,boiler,air conditioning equipment,Household direct drinking water supply system),industrial equipment(oil press machine,air cooler,hydathode,lubricating oil system),garden equipment,medical equipment,cosmetology equipment,aquaculture,automatic door control system,etc.
Main technical parameter for float controller:
Model |
LSS2A24 |
|||
Installation |
Top or bottom perpendicular instal |
|||
Mounting dimension |
M10 |
|||
Operating characteristic |
N.O/N.C (optional) |
|||
Material Specification |
Electrical Specification |
Physic Specification |
||
Float ball |
SUS304/316 |
Contact form |
A |
Min shock: 30G on board |
Float body |
SUS304 |
Max contact rating |
50W |
Min Vibration: 1.5mm (10-55HZ) |
Cap nut |
SUS304 |
Max switching voltage |
220VDC |
Temp Rating: -30-+125°C |
O-ring |
Silicon |
Max breakdown voltage |
300VDC |
Max pressure: 0.2MPa |
E-ring |
SUS304 |
Max switching current |
1.5A |
|
Filling |
EPOXY(ROHS) |
Max carry current |
3A |
|
Wire |
UL1015 22AWG |
Max contact resistance |
100Ω |
|
Working Life |
100,000,000 |
|
||
Nomal Packaging: Use KINGSON brand wrapping plastic film or brand carton box in condition.
Delivery Detail: 5-15days after we receive all the payment.
