Stainless Steel Float Switch Liquid Level Controller
- 5000 Piece / Pieces per Month
- Shanghai
- T/T Credit Card
Product Details
Place of Origin: | Jiangsu, China | Brand Name: | Kingsun | Model Number: | UQK |
Product Description

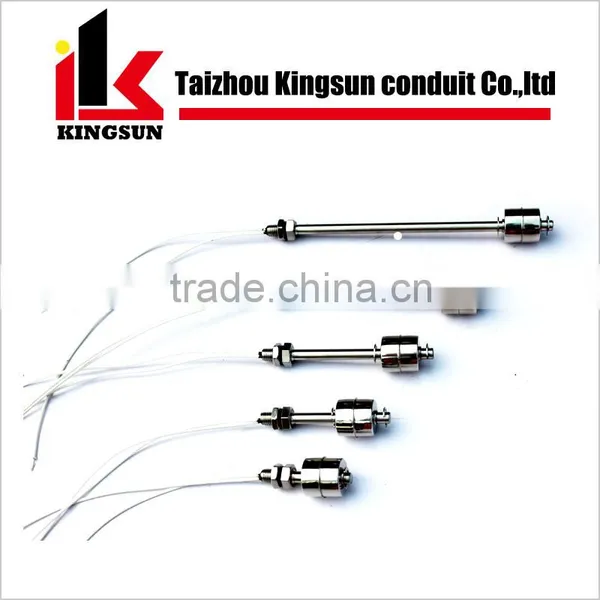

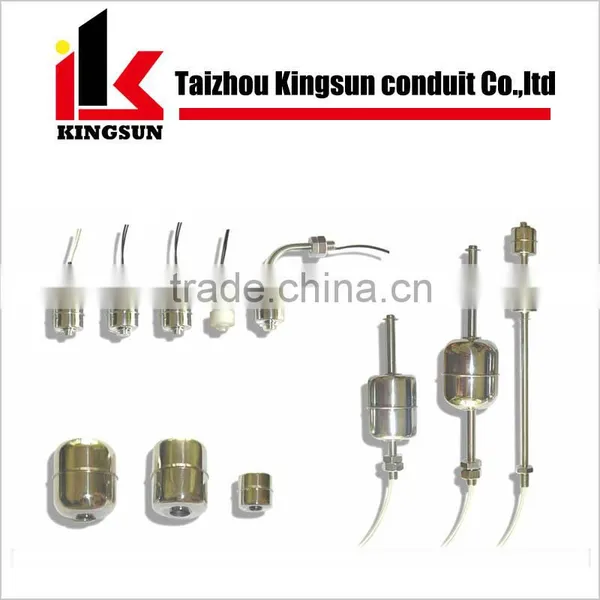

Stainless Steel Float Switch Liquid Level Controller
Continuous level float switch can real-time monitoring of liquid level, measurement
accuracy is 4 mm, output can be resistance change value, also can converted into
analog output (current, voltage) and digital output (RS 485 and RS 232) by transmitter.
- Contactless operation
- Customer can defined measuring range
- Long service life, high accuracy, flexible installation
- Diversity signal output
Application of float controller:
- Auto oil tank, oil depot
- Industrial control
- Sewage treatment
- Hydrology monitoring
Main technical parameter for float controller:
Connection: | flangeDN50~DN150 RF | sanitary DIN cassette | G1", G1/2", G3/8" thread |
Pipe diameter: | 20mm, 14mm | 20mm, 14mm | 20mm, 14mm |
Maximum lehgth: | 6000mm, 3000mm | 6000mm, 3000mm | 6000mm, 3000mm |
Resolution: | 10mm(recommend), 20mm,5mm |
Float ball: | φ24~φ120 (according to pressure,density,installtion type) |
Operating temperature: | -40~80°C, -40~120°C |
High temperature type: | 150°C |
Medium density: | ≥0.5g/cm3 |
Output signal: | 2 wire 4~20mADC |
Power supply: | 16~30VDC |
Operating pressure: | PN2.5~PN25 |
Electrical connection: | M20x1.5 female thread |
Vertical mounting angle: | ≤25° |
Protection class: | IP65 |
Explosion-proof grade: | ExiaIICT5 or ExdIICT5 |
Nomal Packaging: Use KINGSON brand wrapping plastic film or brand carton box in condition.
Delivery Detail: 5-15days after we receive all the payment.
Taizhou Kingsun Conduit Co,.Ltd
Established in the year 1988,Kingsun International Co.,ltd is a leading manufacture and exportor of EMT,Flexible conduits and Accessories.Recently,it forms a complete network for sales in domestic,and established good business relationships with clients in Japan,South America and West Europe.
Our company is a professional producer of flexible pipes,flexible pipe joints,cable joints,plastic coated metal flexible pipes and metal pipe joints.Strict quality management and advanced production guarantee the quality of our products and contribute to the rapid development of our enterprise.Moreover,our enterprise has passed the evaluation of ISO9001:2000 certification and our cable joints and flexible pipes have passed ROHS environmental protection test.Our products are widely applied to such fields as electric engines,automobile cables,machinery,automatic instruments and meters and motors for tobacco equipment and installation engineering.
