Home > Products > Rental LED display > Guangzhou supplier easy movable best performance p10 Outdoor Full Color led video stage led screen rental

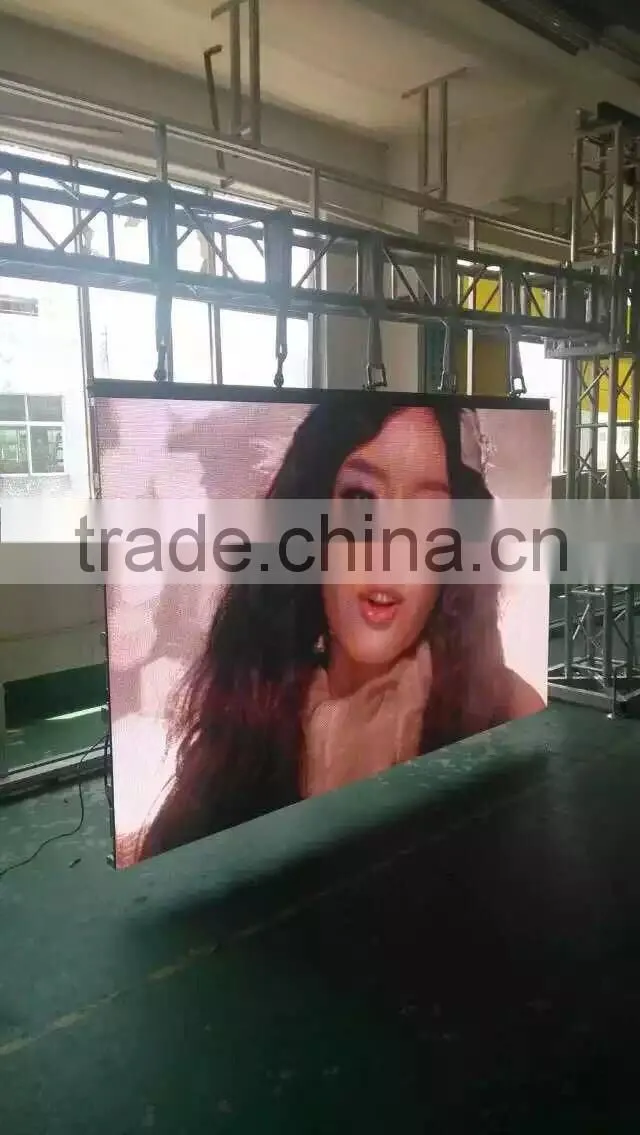

Guangzhou supplier easy movable best performance p10 Outdoor Full Color led video stage led screen rental
- 1000 Square Meter / Square Meters per Month
- Guangzhou Shenzhen
- Credit Card
- 60W UL CE LED Canopy Lamp with aluminum frame Ex-factory price from Shenzhen
- 80W Energy-Saving Gas Station LED Canopy Lamp hot sale from Shenzhen
- 60W UL CE Energy Saving LED Canopy Lamp with 3 years warranty from Shenzhen
- 2014 new design, led flood light, led Gas Station Lamp, LED canopy light 100w
- Led flood light, led Gas Station Lamp, LED canopy light 100w
- 120W High power cree led canopy lamp Wholesale from Shenzhen for gas staton
Product Details
Place of Origin: | Guangdong, China | Brand Name: | Cheng Wen | Model Number: | P10 Outdoor Full Color |
Usage: | Outdoor | Tube Chip Color: | Full Color | Display Function: | Video |
Pixels: | 10mm | Screen Dimension: | for buyers |
Product Description
Product Description Of p10 led screen rental
Description | Technical parameter | |
Unit module | Module size | 160*160mm |
Pixel pitch | 10mm | |
Pixel density | 10000dots/m2 | |
Pixel configuration | 1R1G1B | |
Led specification | 346 | |
Pixel resolution | W:16dots*H:16dots | |
Cabinet | Dimension | 960mm*960mm*150mm |
Quantities of module | 36pcs | |
Power supply | 4pcs | |
Thermal discharge | Fan*2pcs | |
Total weight | 50kg | |
Best viewing angle | 10-300m | |
Temperature | Storage: -35°C~+85°C | |
Working: -35°C~+85°C | ||
Thickness | 15cm can adjustable | |
Remarks: cabinet size can changed, upon project need. | ||
Power | Working voltage | AC220V/110V±10% |
Average power consumption | 600W | |
Max. Power consumption | ≤1000W/sqm | |
Current | ≤20mA(single LED) | |
Control system | CPU | Pentium4 or above |
Operating system | WIN98/2000/NT/XP | |
Control method | Synchronization | |
Main technical parameter | Driving device | 1/4 scanning |
Drive type | Constant Current driver IC | |
Refresh frequency | ≥400Hz | |
Grey scale/colors | 256 levels of each color(R/G/B)/16.7M color | |
Brightness of white balance | More than 7000cd/sqm | |
Brightness adjustment | 256 levels of each color(R/G/B)by software | |
Operating ambient humidity | 10%--95% | |
Video signal | PAL/NTSC | |
Control system | DVI display card+full color controller card | |
MTBF | ≥10,000hours | |
Life span | ≥100,000hours | |
Flatness | Tolerance of interpixel ≤0.3mm | |
Tolerance of modules clearance≤0.6mm | ||
Power switch | Automatic switch | |
Display mode | 1024*768 | |
Communication distance | Unshielded twisted pair net line transmission distance 100m, max transmission distance 200m. Multi-mode Optic fiber transmission distance 500m;Single-mode optic fiber transmission distance 10KM | |
Software | LED media player |
Specifications
1.p10 outdoor led display
2.best view distance:30m
3.1years warranty
4. High brightness 12000nits and energy-saving
5. Good viewing angle
6. Low power
The warranty of p10 led screen rental
The p10 outdoor led display is under 1 year's warranty (from the delivery date), during the warranty,if any product found not working after you received your order:
1.If failures occur due to quality defects of the display body within the warranty period,maintenance and repair service are provide for free;
2.If the damage caused by man made factors of customers,only charged maintenance service are provided.
To shorten the time on maintenance and repair,Guton Technology provides some free spare parts.
Our services
1.We guarantee all our display, modules, spare parts (Silan Chip) for ONE years.
2.We provide technology training for free, which contains the operation and maintenance training of the LED screens in the factory.
3.After warranty , we also can offer you the parts for replacement at our bottom price.
4.After sales, if you have any problem about our product, you can inform us by Email, we will reply you at once when we get it and offer you a good solution to solve the problem.
5.We also could solve problems for you until it recovers well by remote control!
FAQ
1. How to choose the rational product model of the LED display Corresponding with the LED display’s best viewing distance, size, application & installation, there will be many optional product models fit for each specific project. ROI & Budget is also very important factors.
2. What is best viewing distance, how to calculate the best viewing distance of the LED display Best viewing distance refers to the distance from the LED display, where the people can see a whole and clear picture of the image on the LED display. There’s 2 ways to calculate the best viewing distance: one is by the pixel pitch, one is by the diagonal. There’s also the reason why there’s different viewing distance for same model LED display, also different viewing distance for same size LED display.
3. Why there's different viewing distance for same model of the LED display & different viewing distance for same size of the LED display. There’s 2 ways to calculate the best viewing distance: one is by the pixel pitch, one is by the diagonal. There’s also the reason why there’s different viewing distance for same model LED display, also different viewing distance for same size LED display.
Picture Show
FAQ
If you have any questions,please contact me.Thank you!
Welcome to you come to our company~
contact me:skype,huaxiu lai
App:huaxiu lai
wechat,1097856592
phone number ,86 13022013144
Thank you!
Guangzhou Cheng Wen Photoelectric Technology Co.Ltd
Addrss:Guangzhou city .shijing zhen chaoyangcun.shimen Baiyun distric Ting shi road no.137three or four floor
