p5 full color indoor stage rental led display
specification
Item |
Specifications | |
| LED Lamps | Type | SMD 3528 (3-in-1) |
| Arrangement | 1R,1G,1B | |
| Red Wavelength | 625nm(+2.5nm) | |
| Green Wavelength | 525nm(+2.5nm) | |
| Blue Wavelength | 470nm(+2.5nm) | |

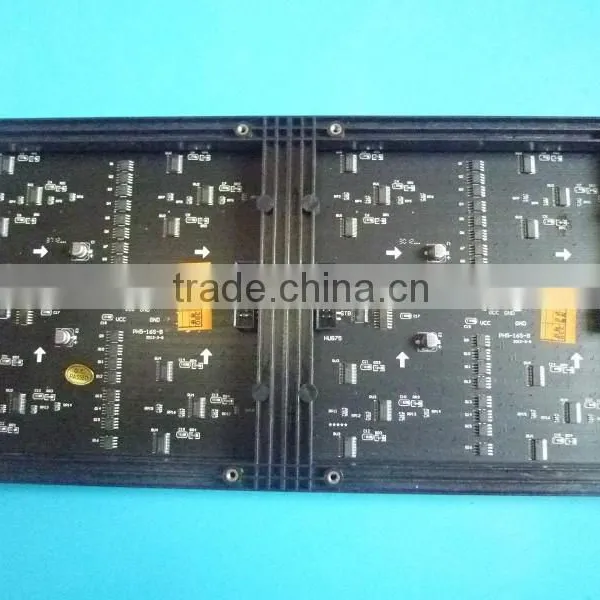

| LED Module | Pixel Pitch | 5mm |
| Module Dimension | 160mm(W)*160mm(H) | |
| Module Resilution | 32pixel(W)*32pixel(H) | |
| LED Cabinet | Pixel Density | 40000 pixels/sq.m |
| Cabinet Dimension | 640*640mm | |
| Cabinet Resolution | 96*96pixel | |
| Cabinet Matrials | Sealed Iron Cabinets | |
| Brightness | 2000cd/sqm | |
| Viewing Angle | 160(Horizontal),90(Vertical) | |
| Best Viewing Distance | 4m~100m | |
| Power Consumption (Max) | 800 w/sq.m | |
| Power Consumption (Average) | 400 w/sq.m | |
| Weight | less than 50Kgs/sq.m | |
| Frame Frequency | no less than 60 frame/sec | |
| Refresh Rate | no less than 480 HZ/sec | |
| Input Voltage | 220V/110V, 50Hz/60Hz | |
| Output Voltage | 5V,40A | |
| Grey Scale Levels | R(1024bit) x G(1024bit) x B(1024bit) | |
| Grey Colors | 1.07billion | |
| Brightness Adjustment | 256 levels of each color(R,G,B) can be adjusted manually, and 8 levels of | |
| each color can be adjusted automatically | ||
| MTBF | 5000 hours | |
| Life-span | 100,000 hours | |
| Protection Level | IP43 | |
| Malfunction Dot Rate | less than 0.0001 | |
| Assembly Precision Between PCB | <1mm | |
| Working Temperature | -20°C~40°C | |
| Humidity | 35%~85% | |
| Control System | Drive Mode | 1/8 scan, constant current |
| Control Mode | Synchronization | |
| Control System | LINSN Control System (sending card, receiving card, receiving HUB) | |
| Software | LED Studio (LINSN) | |
| Input Signal | MPG/MPEG/MPV/MPA/AVI/VCD/SWF/RM/RA/RMJ/ASF/Composite,etc | |
| PC Operating System | Microsoft Windows 98, 2000, XP and Vista | |
product features
1. Seamless - precision die casting aluminum panel, light weight and more durable.
2. Quality SMD LEDs - with wide viewing angle to ensure vivid and sharp images and video.
3. Energy saving- lower power consumption and protect environment.
4. High refresh rate and high gray scale - ensures the LED display to take on more perfect images.
5. Noiseless - silence with no fan design.
6. Easy and fast installation- no tool assembly and disassembly with patented quick lock for seamless
assembly and performance.

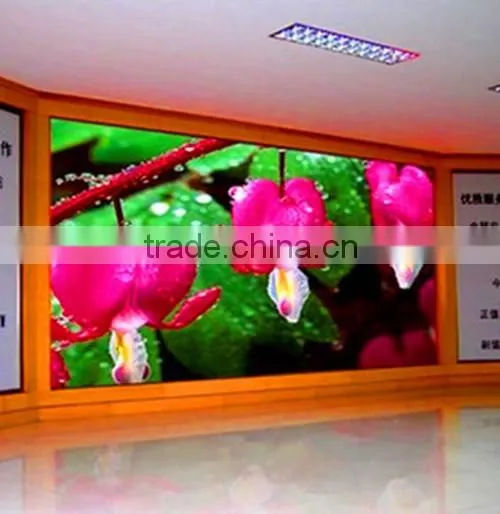

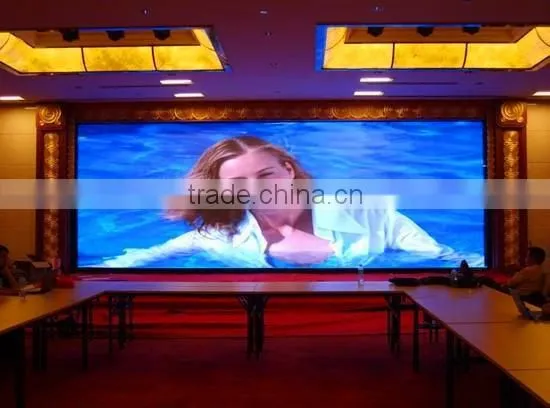

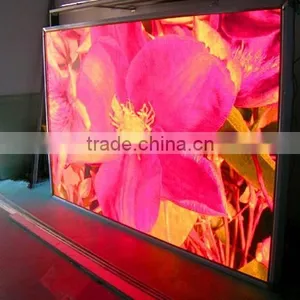

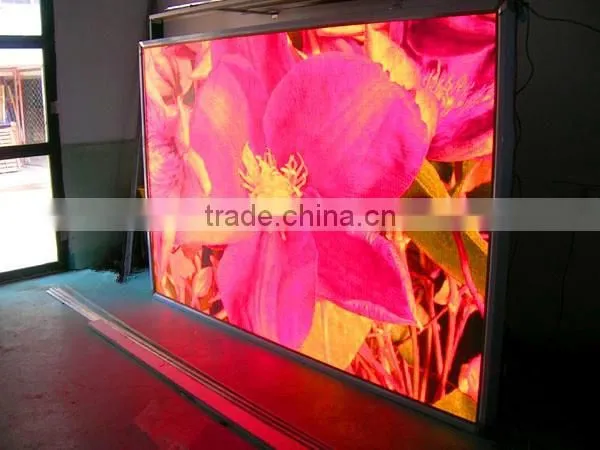

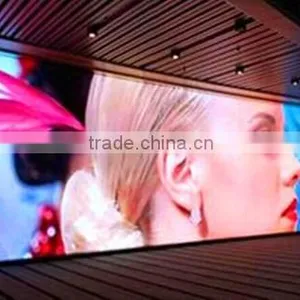

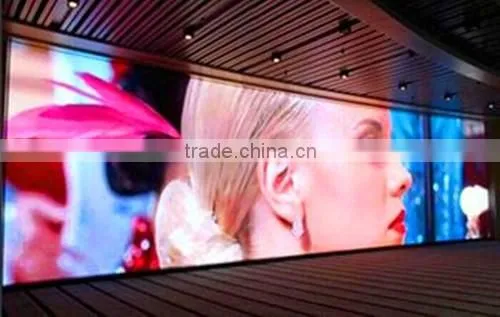

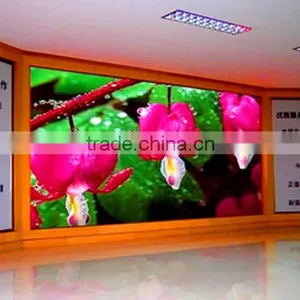

product show
our company
package
display box
our services
1.Your inquiry related to our products or prices will be replied in 24hrs.
2.Well-trained and experienced staffs to answer all your enquires in fluent English .
3.OEM&ODM, any your customized screen we can help you to design and put into product.
4.Distributoer ship are offered for your unique design and some our current models .
5.Protection of your sales area, ideas of design and all your private information .
FAQ
What kind of payment can you choose?
T/T , Western Union
What kind of package can you choose?
wooden case, carton, air flight case, etc.And if you choose wooden case or air flight case ,there will be extra charge.
How long will it take before our delivery?
Less than one week
Can you visit our factory in china?
Warmly welcomed you to visit us ,and the person who is responsible will guide you to scan the workshop every step, you will know the rough producing situation, then you will trust us .
