Home > Industrial Equipment & Components > Cutter & Tongs > Chuck > Two Jaw 210mm Through-hole Hydraulic Lathe Chuck

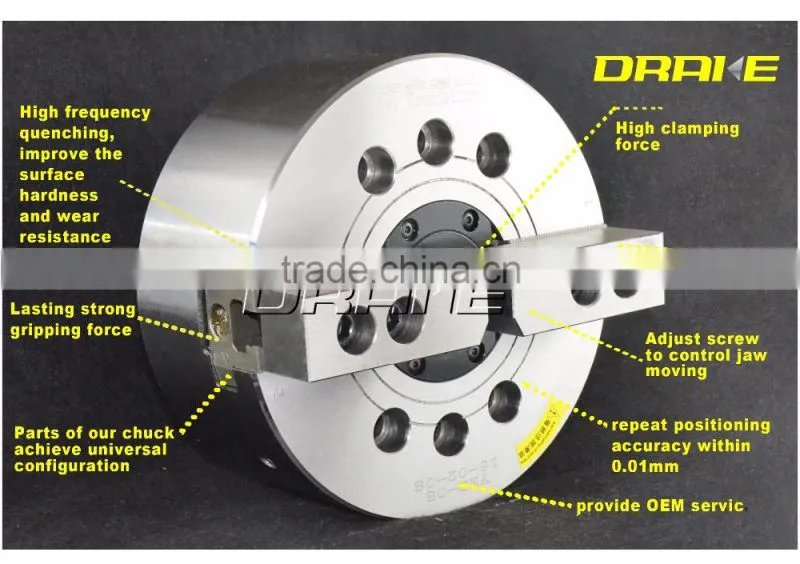

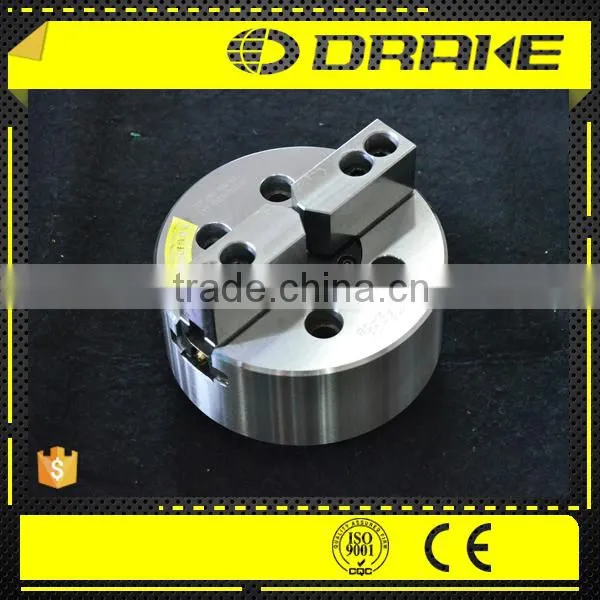

Two Jaw 210mm Through-hole Hydraulic Lathe Chuck

Name: Two Jaw 210mm Through-hole Hydraulic Lathe Chuck
Brand: DRAKE
SKU: 124247385
Availability: InStock

Two Jaw 210mm Through-hole Hydraulic Lathe Chuck thumbnail-1

Two Jaw 210mm Through-hole Hydraulic Lathe Chuck thumbnail-2

Two Jaw 210mm Through-hole Hydraulic Lathe Chuck photo-1

Two Jaw 210mm Through-hole Hydraulic Lathe Chuck photo-2

US$ 191 - 1,500 MOQ: 1 Set

Key Specifications

Get Latest Price

Place of Origin:

Jiangsu, China

Brand Name:

DRAKE

Model Number:

YK2-06"

Contact Supplier Request Quote Chat Now

Changzhou Drake International Trade Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

SHANGHAI

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Jiangsu, China

Brand Name DRAKE

Model Number YK2-06"

Power Hydraulic

Number of Jaws 2

FAQ

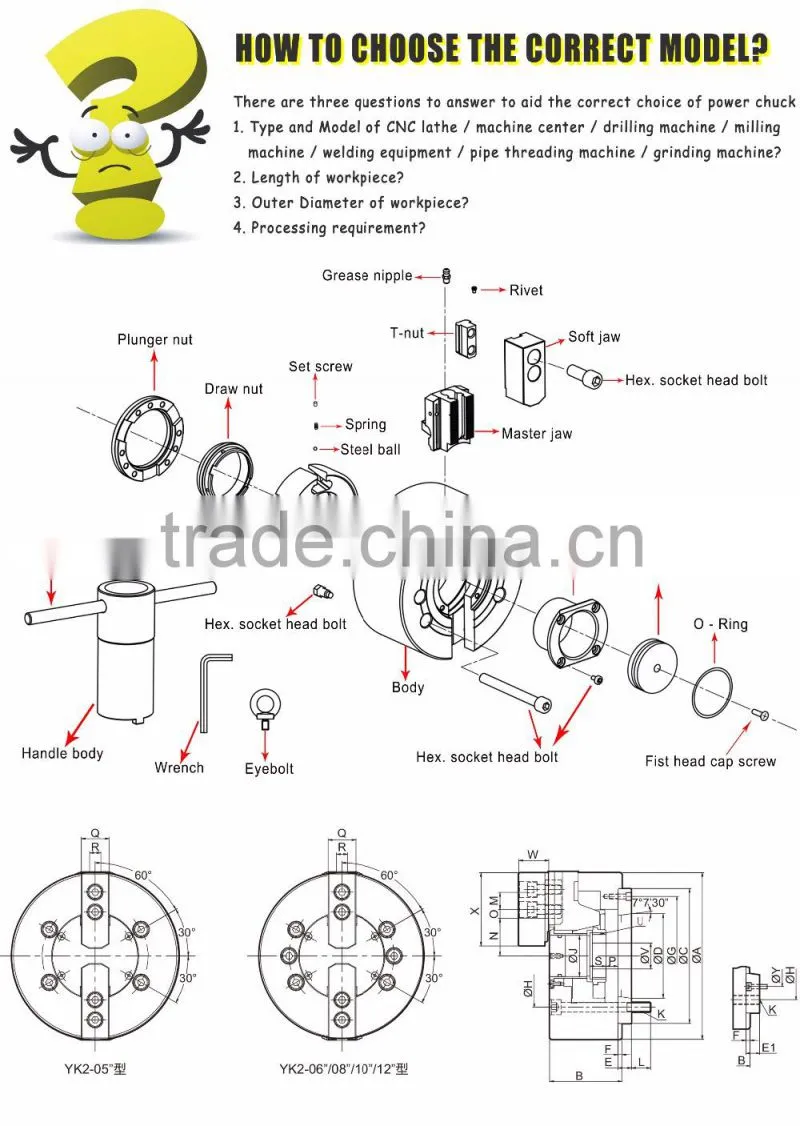

Size Parameters

Model/Spec	A	B	C (h6)	D	E	E1	F	G	H	J	K	L	M
YK2-05"	135	60	110	63.513	20	-	4	96	82.6	33	4-M8×1.5P	15	14
YK2-06"	169	81	140	82.563	15	-	5	116	140.8	45	6-M10×1.5P	16	20
YK2-08"	210	91	170	106.375	17	23	5	150	133.4	52	6-M12×1.75P	18	25
YK2-10"	254	100	220	139.719	18	28	5	190	171.4	75	6-M16×2P	19	30
YK2-12"	304	110	220	139.719	18	-	6	190	171.4	91	6-M16×2P	25	30
YK2-15"	380	133	300	196.869	22	33	6	260	235	117.5	6-M20×2.5P	28	43

Model/Spec	N (max.)	N (min.)	O (max.)	O (min.)	P (max.)	P (min.)	Q	R	S	U	W	X	Y
YK2-05"	26.5	23.8	19	6	1	-9	25	10	20	M40×1.5P	31.5	62	-
YK2-06"	32	29.25	24	7	11	-1	31	12	19	M55×2P	37	73	-
YK2-08"	38.7	35	30	10	14.5	-1.5	35	14	20.5	M60×2P	39	95	104.8
YK2-10"	51	46.6	34	12	8.5	-10.5	40	16	25	M85×2P	43	110	133.4
YK2-12"	61.3	56	46	12	8	-15	50	21	28	M100×2P	51	129	-
YK2-15"	82.7	77.4	46	13	8	-15	62	21	42.5	M130×2P	66	165	-

It is recommended to grease chucks at least twice a day in order to maximize longevity

Performance Parameters

Model/Spec	Nose of spindle	Thru-Hole (Diam) (mm)	Plunger Stroke (mm)	Jaw Stroke (Diam) (mm)	Max. Speed (r.p.m)	Max. Pull Force (kgf)	Max. Gripping Force (kgf)	Max. Hydr. Pressure (kgf/cm²)	Net weight (kg)	Matching Cylinder	Gripping Ranger
YK2-05"	A24	33	10	5.4	7000	1120	2340	19	6.5	TK536	Ø10~Ø135
YK2-06"	A25	45	12	5.5	6000	1420	3770	18.5	13.1	TK646	Ø15~Ø169
YK2-08"	A26 (A25)	52	16	7.4	4800	2240	5710	17	23	TK852	Ø20~Ø210
YK2-10"	A28 (A26)	75	19	8.8	4200	2850	7440	18	35.9	TK1075	Ø25~Ø254
YK2-12"	A28	91	23	10.6	3300	3670	9690	18	56.2	TK1291	Ø30~Ø304
YK2-15"	A211 (A28)	117.5	23	10.6	2500	4790	12130	17	103.2	TK1512	Ø35~Ø381
