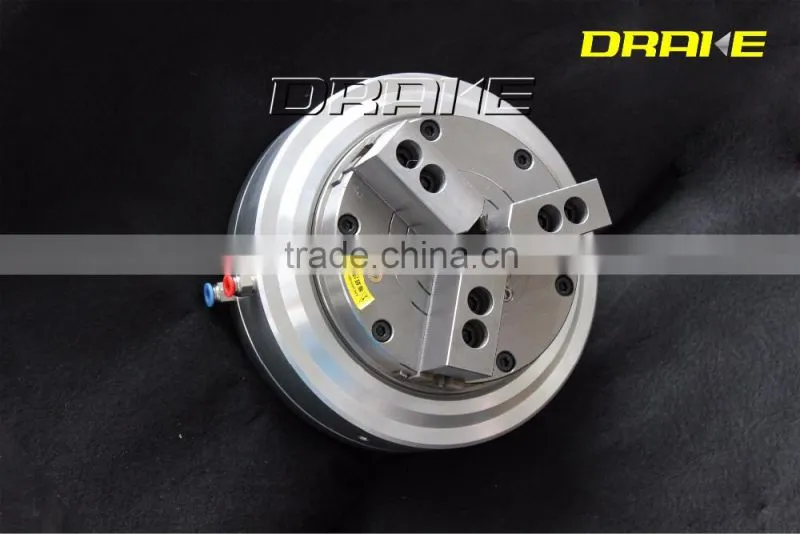

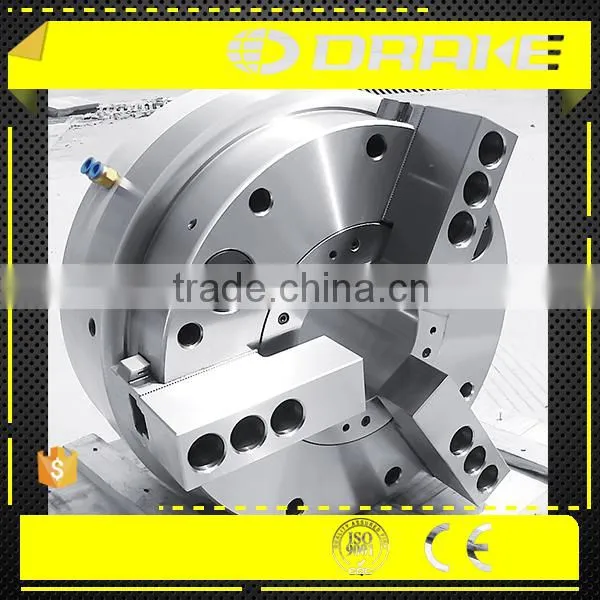

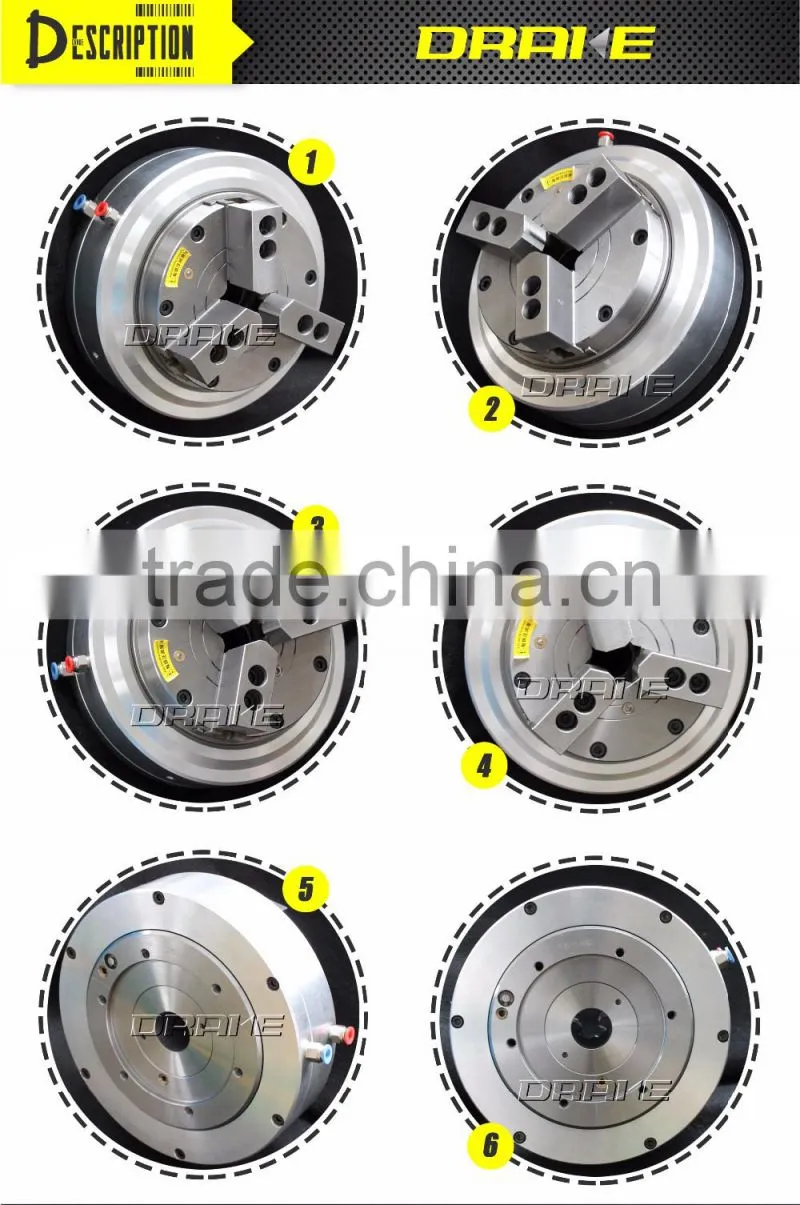

QZ3-10 Front-load Pneumatic Power Lathe Chuck Wood Lathe Tools
lathe chucks air chucklathe chucks air chucklathe chucks air chucklathe chucks air chuck
Technical features:
1. The connecting between the chuck and main shaft complies with the national
standard (short cylinder connecting mode), so user only need to prepare right
connection flange compatible with machine tool and chuck instead of changing
the machine tool structure during installation.
2. The whole installation process is quite easy. The chuck body is the cylinder, with
piston and invertted vavle inside to achieve super-long time pressure-keeping
function (more than 24 hours). The clamping and loosing movement is achieved
by rotary air inlet at the side. The machine will not work before cutting off the gas
supply.
3. The chuck boasts advantages of less weight, big hole diameter, high stroke and high
rotating speed, which is applicable for lathe, pipe thread machine tool and welding
equipments.
4. Note:The chuck is ventilated while it clamps or loosens,and its ex-circle is Clamped
by the special seal on the distributing ring, so principal axis of the lathe should stop
rotating when the chuck clamps or loosens.
5. Two-jaw and four-jaw are available.
There are three questions to answer to aid the correct choice of power chuck:
1. Type and model of CNC lathe.
2. Length of workpiece?
3. Outer diameter of workpiece?
4. Processing requirement?

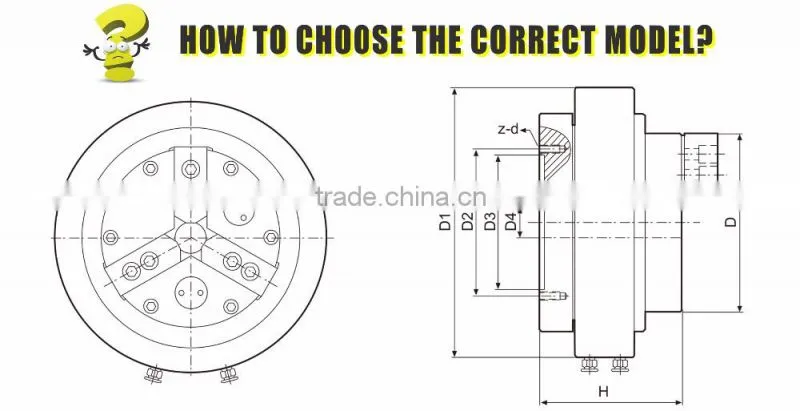

Size Parameters
| Model/Spec | D | D1 | D2 |
D3 | D4 | H | h | z-d |
| QZ3-06" | 175 | 248 | 142 | 130 | 36 | 105 | 4 | 6-M8 |
| QZ3-08" | 210 | 298 | 180 | 165 | 52 | 126 | 5 | 6-M10 |
| QZ3-10" | 250 | 368 | 226 | 206 |
75 | 128 | 6 | 6-M12 |
| QZ3-12" | 320 | 408 | 290 | 270 | 110 | 136 | 6 | 6-M12 |
| QZ3-15" | 400 | 408 | 340 | 310 | 140 | 158 | 6 | 6-M16 |
| QZ3-18" | 460 | 468 | 374 | 310 | 155 | 168 | 7 | 9-M16 |
| QZ3-20" | 510 | 480 | 416 | 380 | 190 | 176 | 7 | 9-M16 |
It is recommended to grease chucks at least twice a day in order to maximize longevity
Performance Parameters
| Model/Spec |
Permissible pressure (Mpa) |
Jaw Stroke (mm) |
Max. static clamping force (kgf) |
Max. rotating speed (r /min) |
| QZ3-06" | 0.4-0.8 | 4 | 42 | 2500 |
| QZ3-08" | 0.4-0.8 | 5 | 56 | 2000 |
| QZ3-10" | 0.4-0.8 | 6 | 75 | 1600 |
| QZ3-12" | 0.4-0.8 | 8 | 92 | 1300 |
| QZ3-15" | 0.4-0.8 | 8 | 116 | 1000 |
| QZ3-18" | 0.4-0.8 | 10 | 128 | 1000 |
| QZ3-20" | 0.4-0.8 | 10 | 139 | 1000 |

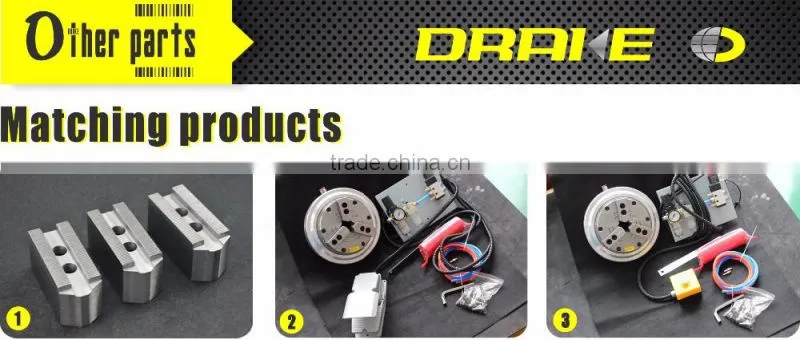

The matching products including:
1. Soft jaws.
2. Oil-water separator, manual solenoid valve, air hose, foot-switch, Hex. socket head bolt
3. Oil-water separator, manual solenoid valve, air hose, manual-switch, Hex. socket head bolt
lathe chuck lathe chuck lathe chuck lathe chuak lathe chuck lathe chuck lathe chuck lathe chuck lathe chuck lathe chuck lathe chuck lathe chuck lathe chuck lathe chuck lathe chuck lathe chuck lathe chuck lathe chuck lathe chuck lathe chuck lathe chuck lathe chuck lathe chuck lathe chuck lathe chuck lathe chuck lathe chuck lathe chuck lathe chuck lathe chuck lathe chuck lathe chuck lathe chuck lathe chuck lathe chuck lathe chuck lathe chuck lathe chuck
