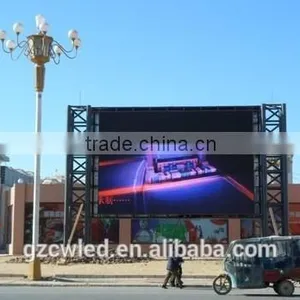

Help CenterGuangzhou Supplier Easy Movable Best Performance p6 Outdoor Full Color Led Video Stage Rental Display Screen
Related Products
-
Supply Stage Rental Indoor Full Color p3 Led DisplayUS$ 1 - 100MOQ: 5 Square Meters -
Professional Manufacturer Top Quality High Quality P13.3 Outdoor Full Color Led Screen for StagesUS$ 1 - 560MOQ: 5 Square Meters
-
Top Quality High Brightness Ph20 Outdoor Full Color Led Screen for Stage RentalUS$ 1 - 615MOQ: 2 Square Meters
-
Supply Stage Rental Indoor Full Color P10 Led DisplayUS$ 1 - 600MOQ: 5 Square Meters
-
Supply Stage Rental Indoor Full Color P5 Led DisplayUS$ 1 - 1,050MOQ: 5 Square Meters
Specifications Of p6 Outdoor full color led screen
p6 Outdoor Led Screen Display
1.High resolution&brightness
2.Low power consumption
3.Long lifespan w/epistar
4.Relatively low cost led module.
5.High brightness,stability.
6.low power consumption.
7.Advanced technology
Production Detail of led screen
| Product type | P6 |
| LED package | SMD3528 |
| Pixel pitch | 6mm |
| Pixel density | 27777 dots/sqm |
| Driver mode | Constant current |
| Scan mode | 1/8scan |
| Brightness max | 1500 cd/ sqm |
| Module resolution | 32 dots * 16 dots |
| Module size | 192 * 96mm |
| Maximum power | 1000W/ sqm |
| Reference average power | 400W/ sqm |
| Viewing distance | above 6m |
| Viewing angle | Horizontal 140°/Vertical 140° |
| Cabinet thickness | Standard cabinet 140;Simple cabinet 100 |
| Control method | Synchronous |
| Frame frequency | above 60Hz |
| Refresh frequency | above 400Hz,max 1000Hz |
| Gray level | above 4K |
| Working temperature | -10 OC — +40 OC |
| Work voltage | AC220V±10%;50Hz |
| Video Interface | VGA,DVI,CVBS,Y/C,YPbPr,SDI/HDSDI,HDMI |
| Counication distance | Network cable equal or less than 100m;Multimode Fiber equal or less than 500m;Single mode fiber ≤10km |
| Service life | 100,000 Hours |
| Contral system | LED special video card + professional LED Contral system |
1. We can provide technology support for the customers, which contains the operation and maintenance training of the LED screens in the factory, If the customer requires so.
2. After warranty , we also can offer you the parts for replacement at our bottom price.
3. After sales, if you have any problem about our products, you can tell us by Email, we will reply you at once and offer you a good solution to solve the problem.
4.Your inquiry related to our products or prices will be replied in 24hrs.
5.Distributor ship are offered for your unique design and some our current models .
Basic knowledge of led screen:
A. What is LED?
LED is the abbreviation leds (LIGHT EMITTING DIODE), it’s emit visible wavelengths led in the led video display industry
B. what is a pixel and pixel pitch?
The pixel is the smallest unit of light-emitting, consists of red, green and blue colors. The same as ordinary computer monitors.
Pixel pitch refers to the center of the distance between two adjacent pixels.
C. what is the DIP, SMT and SMD?
DIP is DOUBLE IN - LINE PACKAGE, dual-in-line assembly
SMT is FACE SURFACE MOUNTED technology, Is currently one of the most popular technology in the electronic assembly industry;
SMD is SURFACE MOUNTED DEVICE.
P2.5 mini led display screen adopt SMD technology
D. what is the LED display module?
The base unit determined by circuit and installation structure, has the display function, can simple assembling.
E. What is 3 in 1? What is its advantages and disadvantages?
is the RGB color of LED chips encapsulation SMT light vertical tied together according to certain spacing.
The advantages are: simple production, display effect is good,
The disadvantage is spectral color separation difficult, high cost;
Warmly welcome to you come to our company~

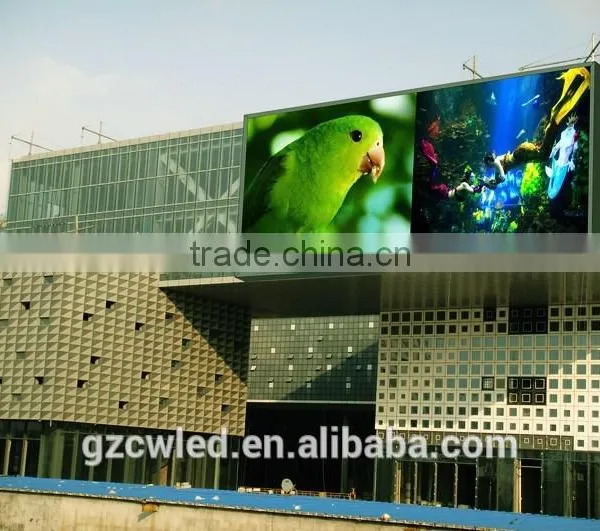

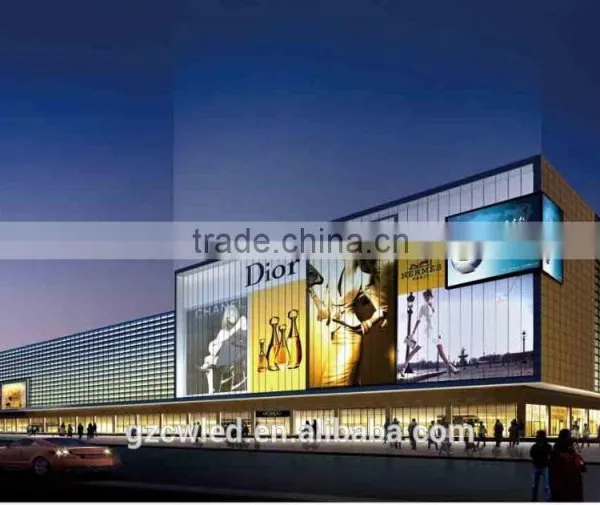

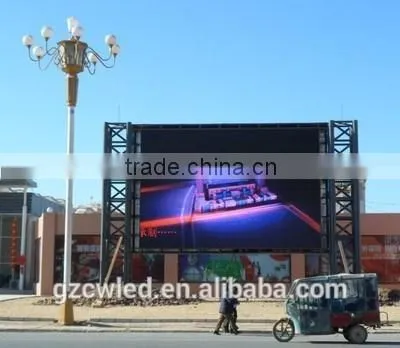

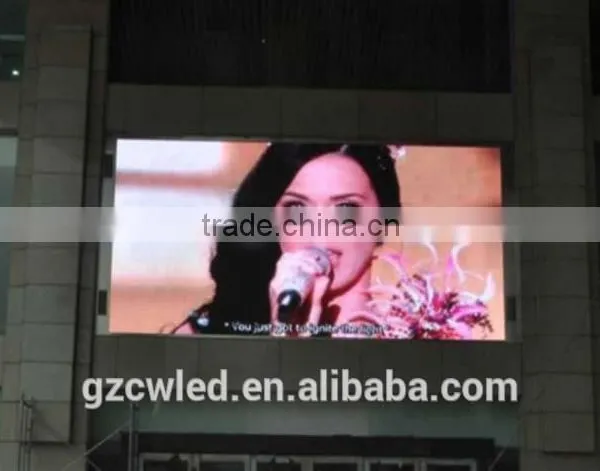

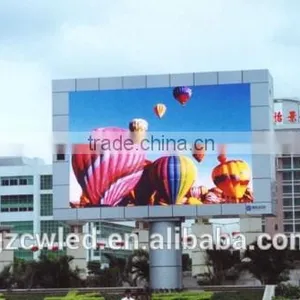

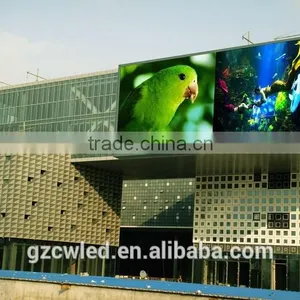

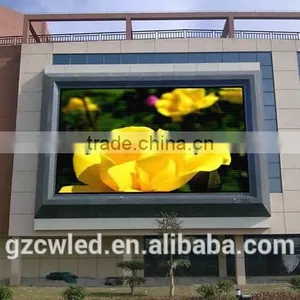

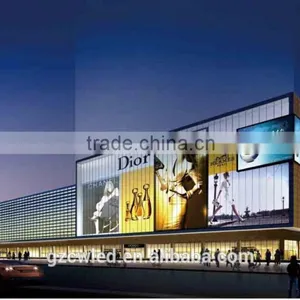

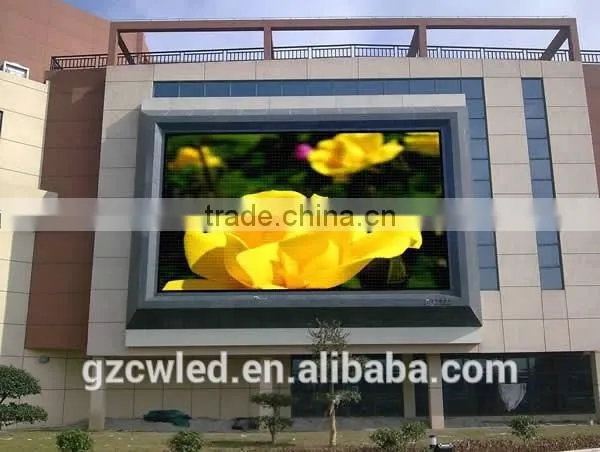

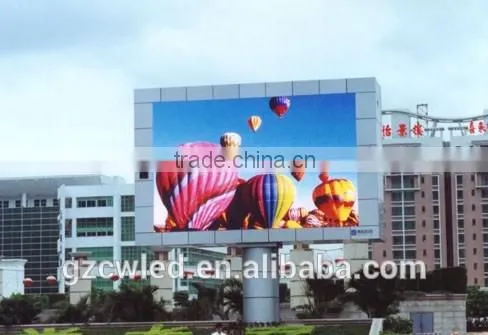

Picture Show

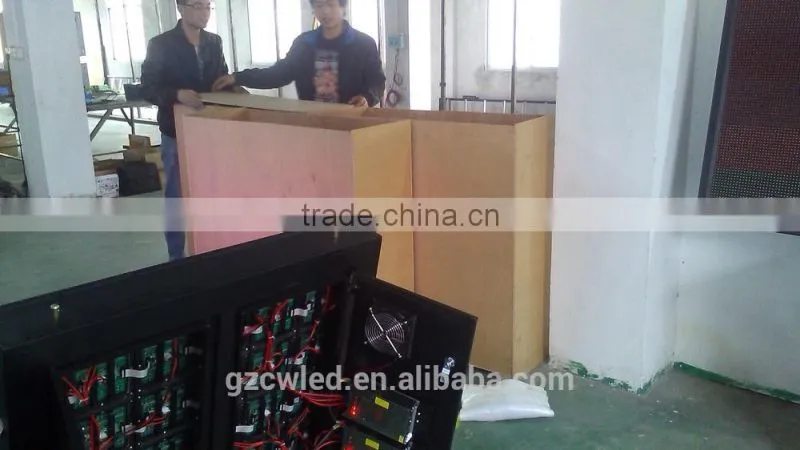

packaging

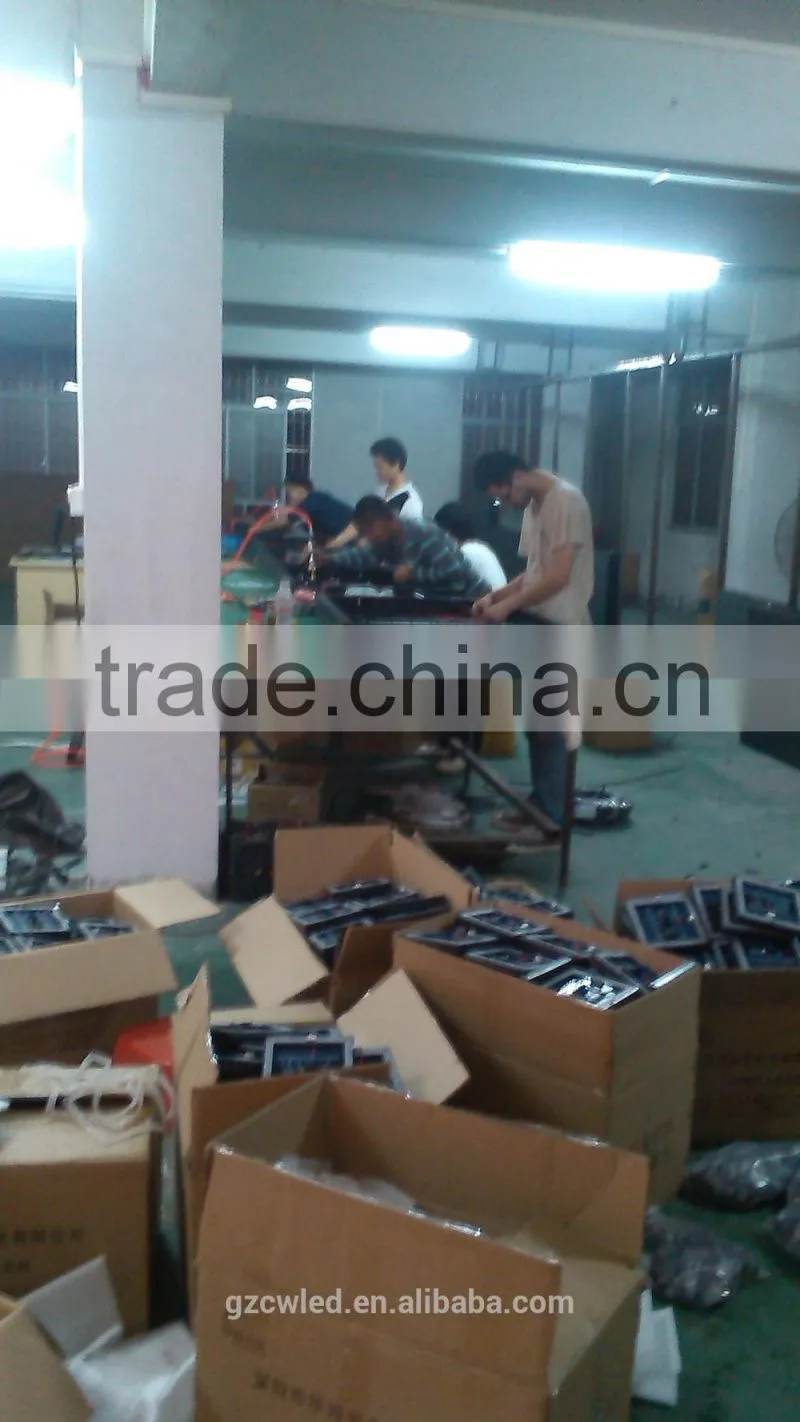

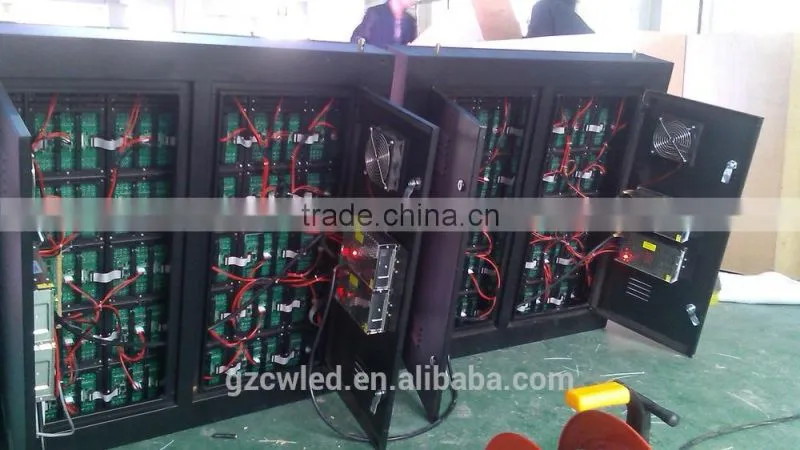

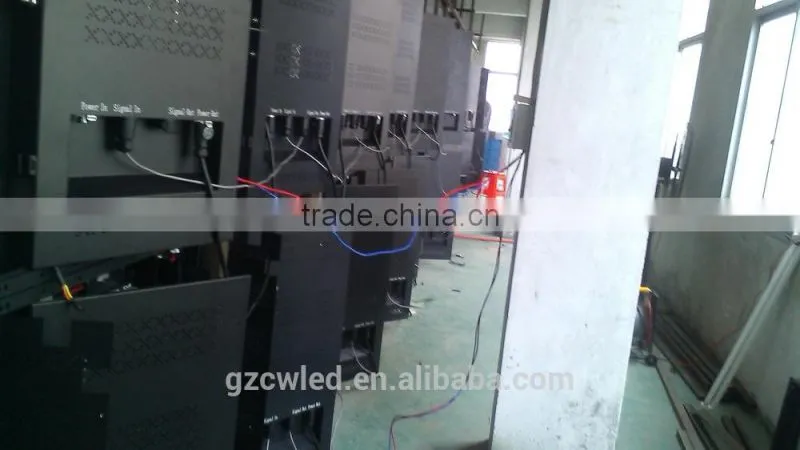

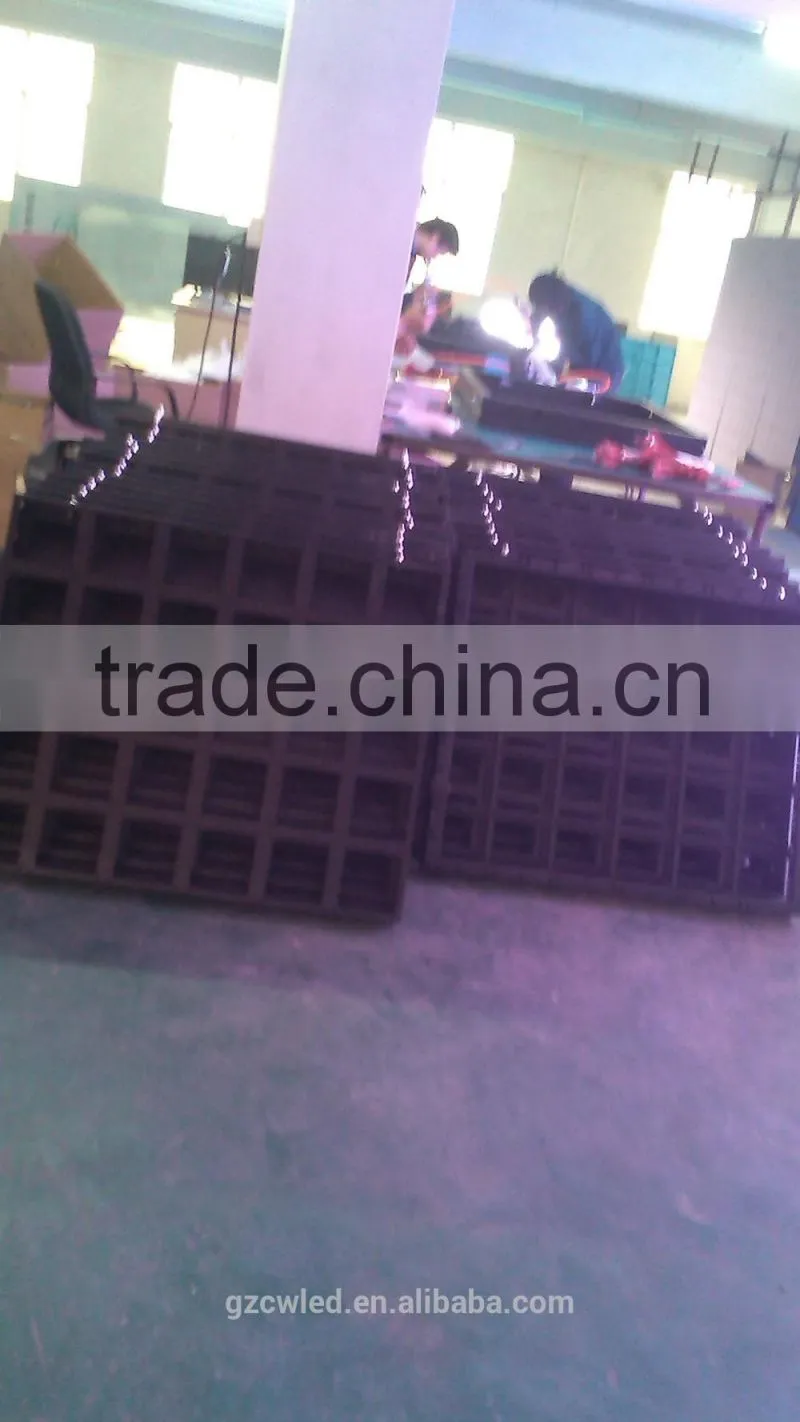

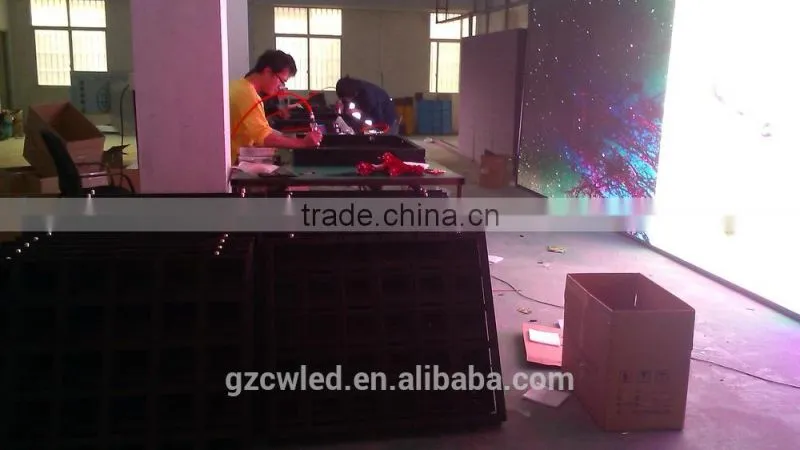

production picture
Welcome to you come to our company~
contact me:skype,huaxiu lai
App:huaxiu lai
wechat,1097856592
phone number ,86 13022013144
Thank you!
FAQ
If you have any questions,please contact me.Thank you!
