outdoor full color p16
specification
Description |
Technical parameter | |
| Unit module | Module size | 256*256mm |
| Pixel pitch | 16mm | |
| Pixel density | 3906dots/sqm | |
| Pixel configuration | 1R1G1B | |
| Led specification | Φ3ellipse | |
| Pixel resolution | W:16dots*H:16dots | |
| Cabinet | Dimension | 1024mm*1024mm*150mm |
| Quantities of module | 16pcs | |
| Power supply | 4pcs | |
| Thermal discharge | Fan*4pcs | |
| Total weight | 65kg | |
| Best viewing distance | 10-100m | |
| Temperature | Storage: -35°C~+85°C | |
| Working: -35°C~+85°C | ||
| Thickness | 15cm can adjustable | |
| Remarks: cabinet size can changed, upon project need. | ||
| Power | Working voltage | AC220V/110V±10% |
| Average power consumption | ≤185W | |
| Max. Power consumption | ≤600W/sqm | |
| Current | ≤20mA(single LED) | |
| Control system | CPU | Pentium4 or above |
| Operating system | WIN98/2000/NT/XP | |
| Control method | Synchronization | |
| Main technical parameter | Driving device | Static constant current |
| Drive type | Constant Current driver IC | |
| Refresh frequency | ≥400Hz | |
| Grey scale/colors | 256 levels of each color(R/G/B)/16.7M color | |
| Brightness of white balance | More than 7500cd/sqm | |
| Brightness adjustment | 256 levels of each color(R/G/B)by software | |
| Operating ambient humidity | 10%--95% | |
| Video signal | PAL/NTSC | |
| Control system | DVI display card+full color controller card | |
| MTBF | ≥10,000hours | |
| Life span | ≥100,000hours | |
| Flatness | Tolerance of interpixel ≤0.3mm | |
| Tolerance of modules clearance≤0.6mm | ||
| Power switch | Automatic switch | |
| Display mode | 1024*768 | |
| Software | LED media player | |
product features
1. Seamless - precision die casting aluminum panel, light weight and more durable.
2. Quality SMD LEDs - with wide viewing angle to ensure vivid and sharp images and video.
3. Energy saving- lower power consumption and protect environment.
4. High refresh rate and high gray scale - ensures the LED display to take on more perfect images.
5. Noiseless - silence with no fan design.
6. Easy and fast installation- no tool assembly and disassembly with patented quick lock for seamless assembly and performance.

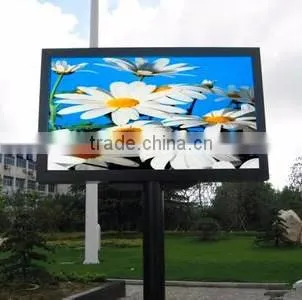

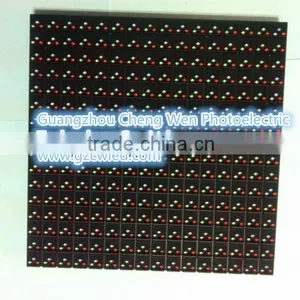

product show
our company
display box
package
our service
1.Your inquiry related to our products or prices will be replied in 24hours.
2.Well-trained and experienced staffs to answer all your enquires in fluent English.
3.OEM & ODM, any your costomized lighings we can help you to design and put into product.
4.Distributers are offered for your unique design and some our current models.
5.Protection of your sales area ,ideas of design and all your private information.
FAQ
What kind of payment can you choose?
T/T ,Western Union
What kind of package can you choose?
wooden case, carton, air flight case, etc.And if you choose wooden case or air flight case ,there will be extra charge.
How long will it take before our delivery?
Less than one week
Can you visit our factory in china?
Warmly welcomed you to visit us ,and the person who is responsible will guide you to scan the workshop every step, you will know the rough producing situation, then you will trust us .
warmly welcomed you to visit us
