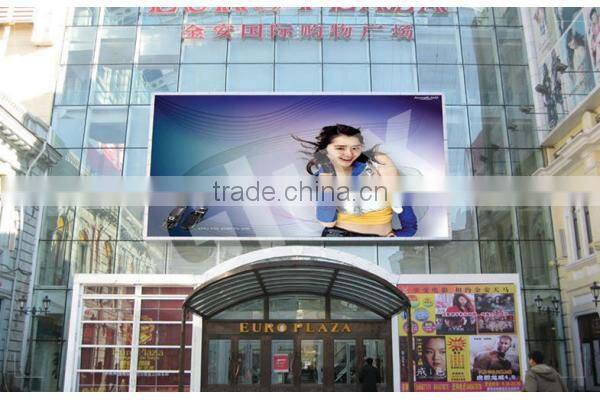

P16 outdoor main technical parameters and pics
|
SERIAL NUMBER |
ITEM | TECHNICAL INDEX |
| 1 | Distance light spot center | 16mm |
| 2 | Pixel wafer compsed | 1R1G1B |
| 3 | Pixel unit box | 16*16 |
| 4 | Unit board size | 256mm*256mm |
| 5 | Pixel density | 3906dots/m² |
| 6 | Drive mode | 1/4 |
| 7 | Life-span | >100000hours |
| 8 | Correspond mode,rate | UART38400 |
| 9 | Screen refresh rate | ≥120Hz |
| 10 | Power Requirements | AC220V±10%,50Hz |
| 11 | Environmental requirements | -5℃-+45℃,35%——85%RH |
| 12 | Entire screen out of control point | <1/1000 |
| 13 | visual angle | Level 110 degree,vertical 45 degree |
| 14 | Visible distance | ≥10 |
| 15 | brightness | ≥9000cd/m² |
| 16 | entire screen flatness | <1mm |
| 17 | Largest,averge power | 400, 200 |
Features of led screen
1,there are two kinds of types about led screen:indoor led screen and outdoor led screen.
case frame is indived into four kinds:simplified iron case,standard case,aluminum case and die casting aluminum case.
Simplified iron case without door ,used in indoor generally.
Standard iron case have door and waterproof, used in outdoor.
Aluminum case and die casting aluminum case are used in indoor stage or outdoor rental.
Ps: above metioned cases only standard iron case have fan.
Video CPU:CW-3000 price:4700RMB/pc
The led screen is consisited by case frame ,power,power line,FPC,module,receiving card,sending card.fan.
IP65:ingress protection 65 means waterproof sunscreen and moistureproof.
Outdoor led screen max power consumption300-500w/s
Indoor led screen max power consumption 250-300w/s
Outdoor led screen max brightness:7500cd/m²
Indoor led screen max brightness :3500cd/m²
Brightness and waterproof are main different between indoor and led screen and outdoor led screen.
Led screen aging test:48hours
Led screen should power off more than 4 hours in a day.
Led screen operation method:computer cable control,WIFI and USB.
wood case or flight case 7-14days
our company Advantages :
1). Price: we have the best competitive High Cost-effective of Price features
2),Own Automatic : From selecting LED chip , led encapsulation, LED module,
are operated by Automatic machine, which can be reduce fault , keep the color of the whole led display
are excellent uniformity , improve showing effect of led screen .
3). Quality: From material to product finished, from design to produce, all steps are controlled
by our workshop, that's the guarantee of the reliability.
4). Service: Warranty is up to 2years, Service time is 24hours x 7 days,
6), Payment :accept : T/T , werstern union.
GuangZhou Chengwen photoelectric Technology Co,.Ltd,is a independent research and development,specializing in the production stage,stage lighting equipment and sales of high-tech enterprises.The company was built in 2012,it has already been widely applied in each domestic domain and has obtained consistent high praise from people of all walks of life both home and abroad by relying on its advanced technology,Company products are exproted mainly sell like hot cake s in :South Korea,Russia,India,Thailand,canbodia,Burma,Vietman,Pakitan,Malaysia and africa,adn many other countries.Hace agent distribution throughout the provinces regional market in china.its remarkable quality ,its stable performance and its first-class service.from the video system ,theathers,to rented performance-it`s brands ChengWen hace already been regarded as the first choice to many important activities,large -scale cultureal parties,dance theaters,telecision stations and other entertainment places,simultaneously,it also continues the OEM sevice for the world -known brand.
We came out each producing procedure according to ISO9010:2000 international quality control system in order to achievezero flaw in product quality All of our products has passed relative quality restriction aging test,and has received CE,BL and the CAS quality authentication.
We hace an ideal dream :The stage will be more splendid with "Cheng Wen"lights!
