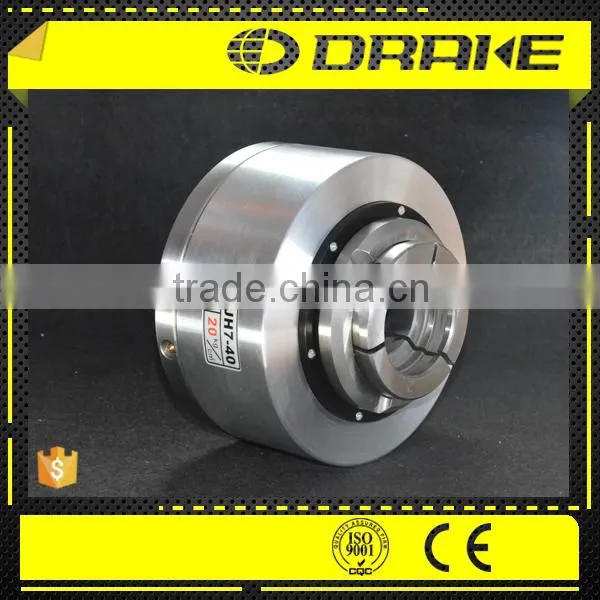

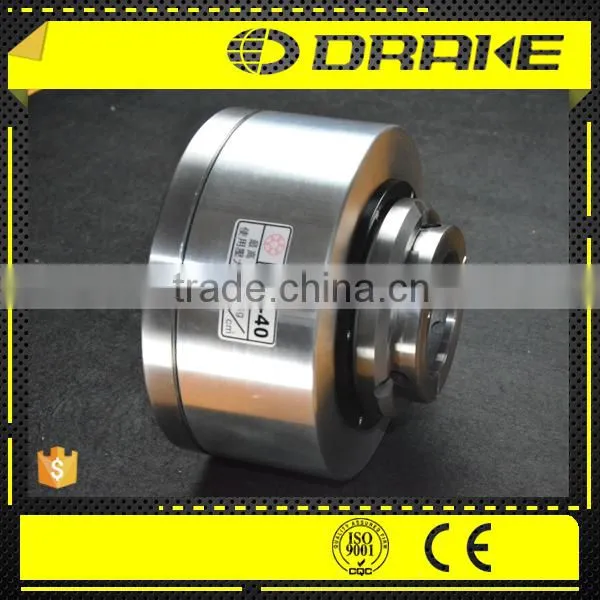

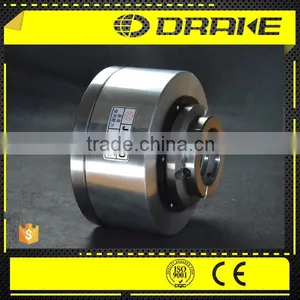

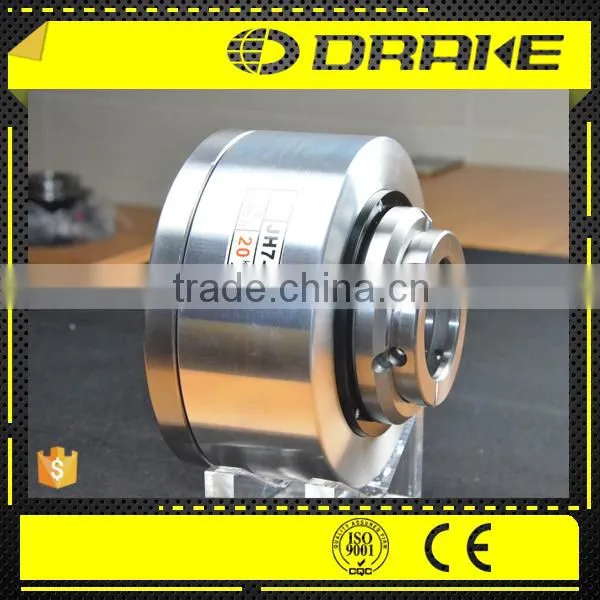

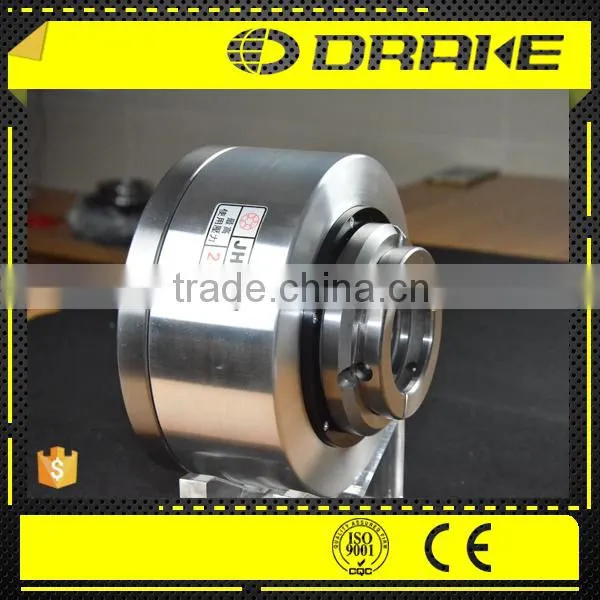

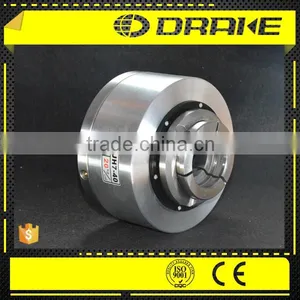

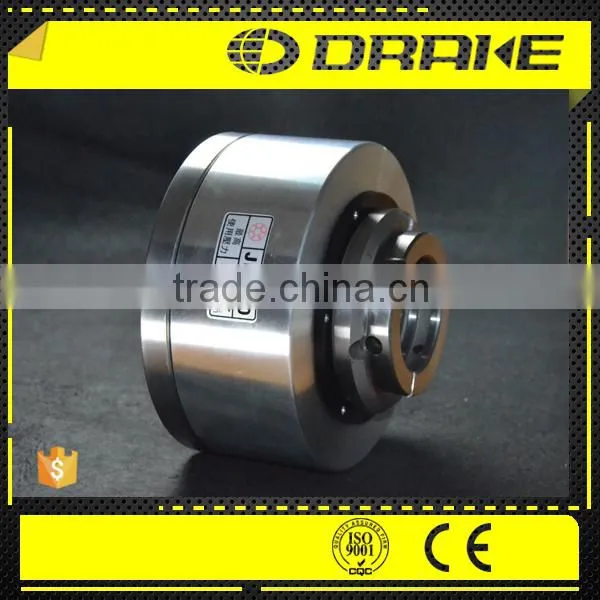

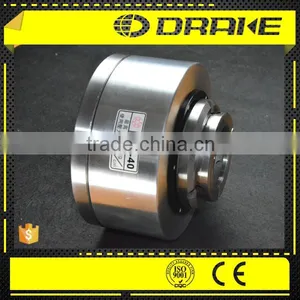

oil powered through-hole rotary hydraulic quick collet lathe chuck
Technical features:
6. Widely applied to convert manual lathe into powered ones.
7. Widely applied to build special purpose machines.
8. Do not spray cutting fluid to the chuck directly.
There are three questions to answer to aid the correct choice of power chuck:
1. Type and model of CNC lathe.
2. Length of workpiece?
3. Outer diameter of workpiece?
4. Processing requirement?
Size Parameters
| Model/Spec | A |
B | C | D | E |
F | G |
H |
I |
J |
| JH5-25" | 135 | 100 | 26 | 4 | 105 | 45 | 68 | 115 | 74 | 3-M8 |
| JH7-40" | 192 | 155 | 46 | 5 | 125 | 65 | 95 | 172 | 74 | 3-M10 |
| JH7-70" | 192 | 155 | 69 | 5 | 139 | 105 | 126 | 172 | 89 | 3-M10 |
| JH9-90" | 230 | 190 | 89 | 6 | 110 | 105 | 136 | 210 | 96 | 3-M12 |
| JH9-120" | 230 | 190 | 120 | 6 | 160 | 140 | 275 | 210 | 105 | 3-M12 |
It is recommended to grease chucks at least twice a day in order to maximize longevity
Performance Parameters
| Model/Spec |
Working pressure (kg/cm²) |
Limit speed (rpm) |
Clamping torque (mm) |
Clamping stroke (mm) |
Through-hole aperture |
Max. chuck diameter |
Net weight (kg) |
| JH5-25" | 10~25 | 1800 | 7 | 1.5 | Ø26 | Ø32 | 6.9 |
| JH7-40" | 10~20 | 1600 | 10 | 1.5 | Ø45 | Ø50 | 13.6 |
| JH7-70" | 10~20 | 1400 | 12 | 1.5 | Ø68 | Ø90 | 21 |
| JH9-90" | 10~20 | 1100 | 15 | 1.5 | Ø89 | Ø90 | 23 |
| JH9-120" | 10~18 | 900 | 18 | 1.5 | Ø120 | Ø132 | 32 |
The matching products including:
1. Connecting bolt
2. Vice jaw
3. Collet
