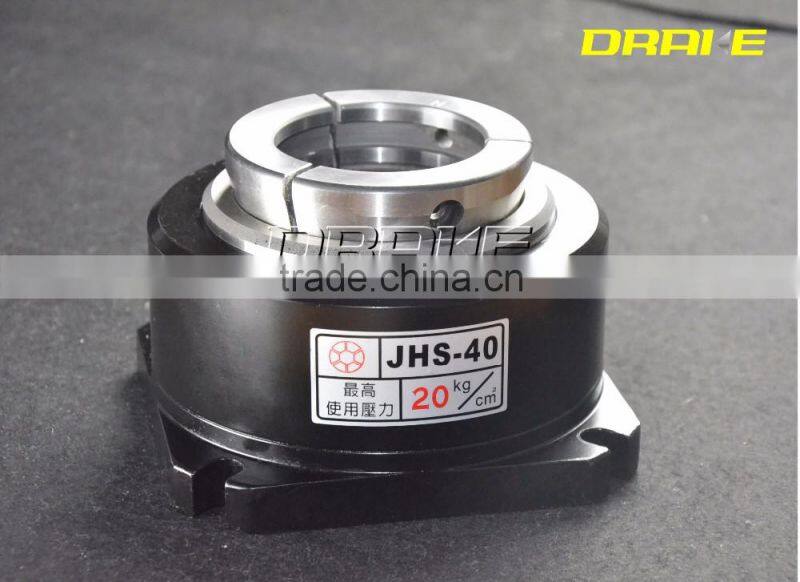

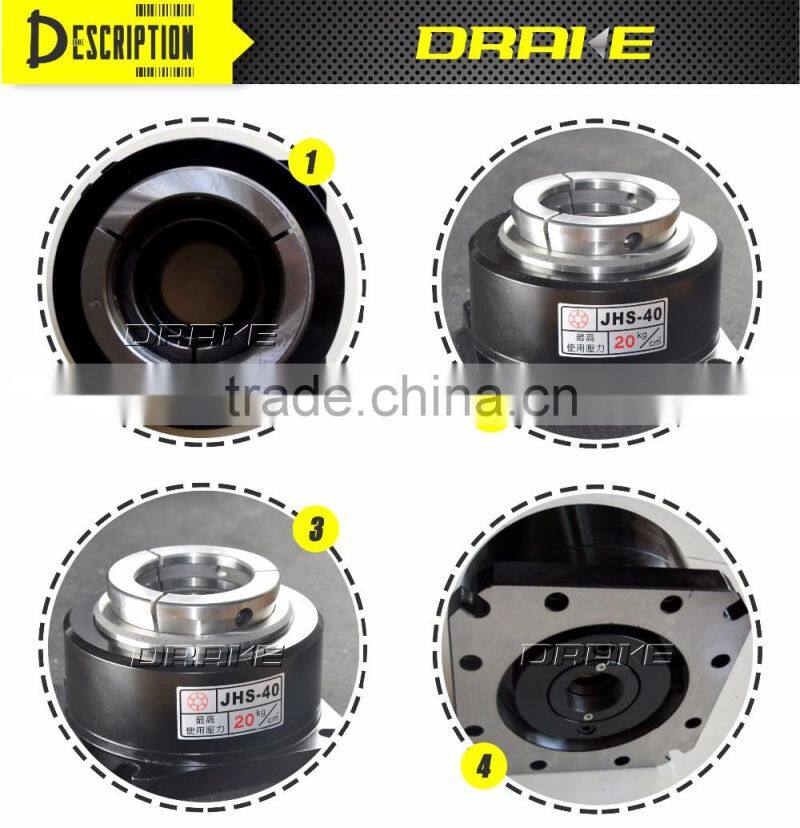

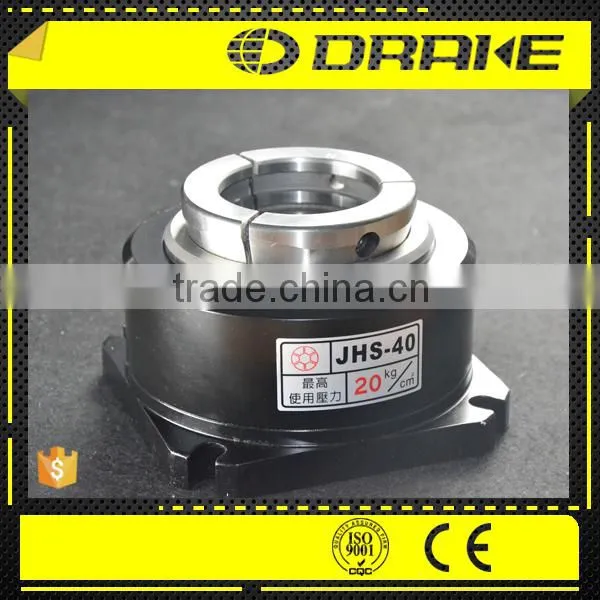

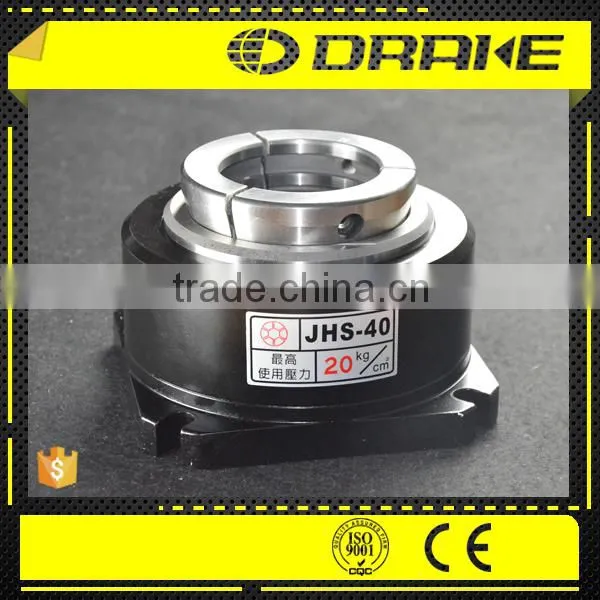

oil powered open-center hydraulic Stationary lathe Collet Chucks
Technical features:
6. Lever or Foot Pedal Actuated.
7. Low Maintenance with Oil Mist Lubrication System
There are three questions to answer to aid the correct choice of power chuck:
1. Type and model of CNC lathe.
2. Length of workpiece?
3. Outer diameter of workpiece?
4. Processing requirement?

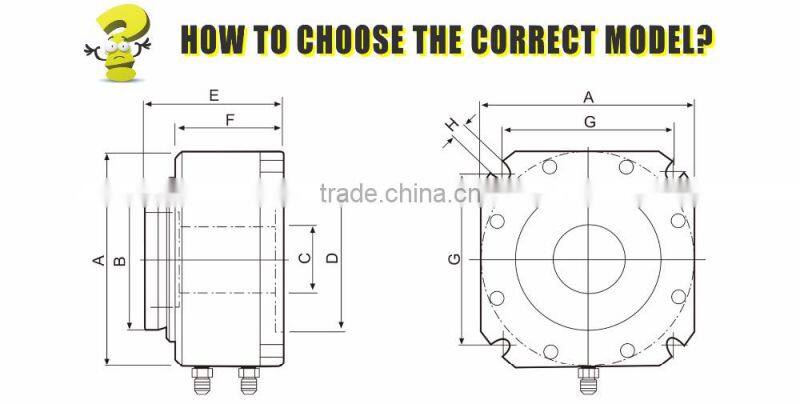

Size Parameters
| Model/Spec | A |
B | C |
D | E |
F | G |
H |
| JHS-40" | 144 | 95 | 38 | 100 | 96 | 73 | 115.3 | 11 |
| JHS-70" | 188 | 135 | 69 | 155 | 94 | 73 | 146.4 | 11 |
| JHS-90" | 260 | 135 | 87 | 170 | 95 | 73 | 169.7 | 13 |
It is recommended to grease chucks at least twice a day in order to maximize longevity
Performance Parameters
| Model/Spec |
Working pressure (kg/cm²) |
Max. chuck diameter (mm) |
Through-hole aperture |
Clamping torque (kg-m) |
Net weight (kg) |
| JHS-40" | 20 | ø50 | 38 | 15kg-m | 8.5 |
| JHS-70" | 20 | ø90 | 68 | 18kg-m | 13.1 |
| JHS-90" | 18 | ø90 | 87 | 15kg-m | 15.5 |

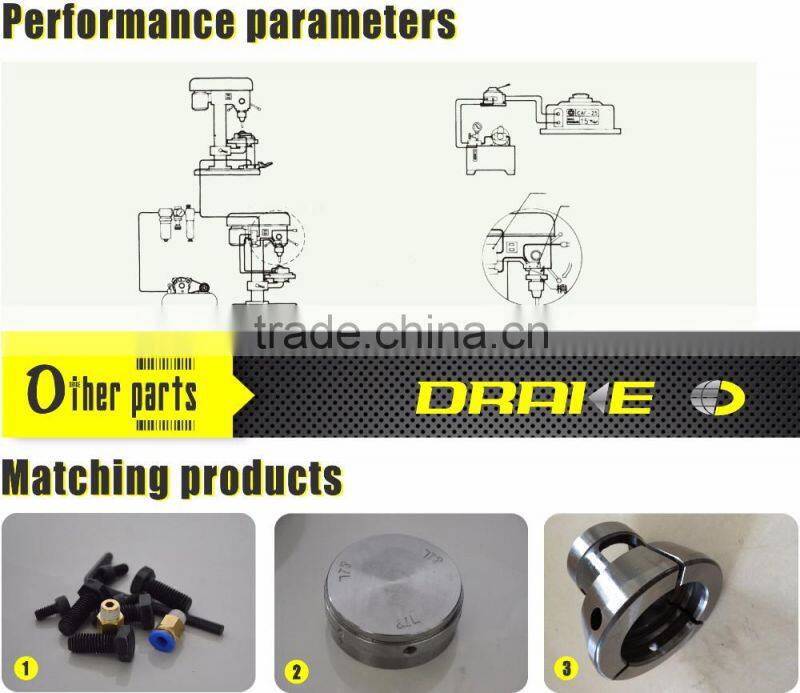

The matching products including:
1. Connecting bolt
2. Vice jaw
3. Collet
