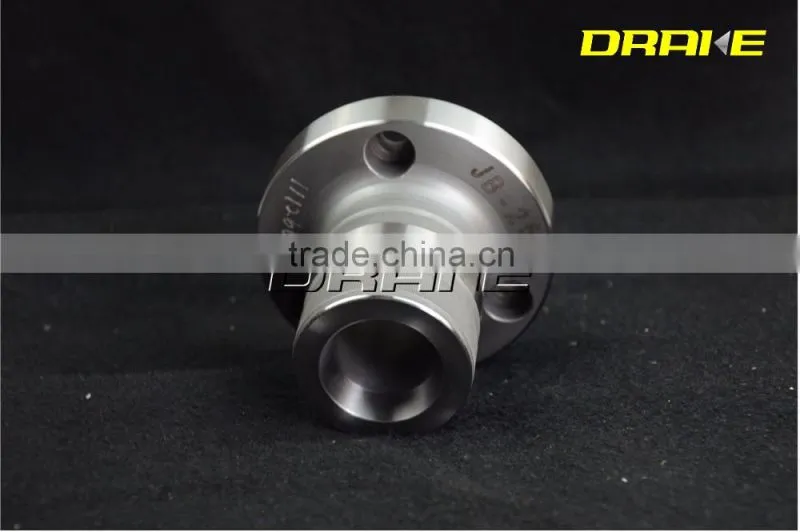

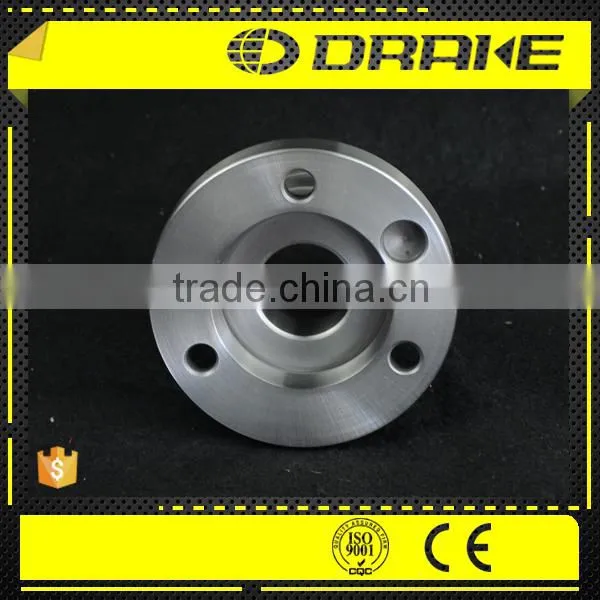

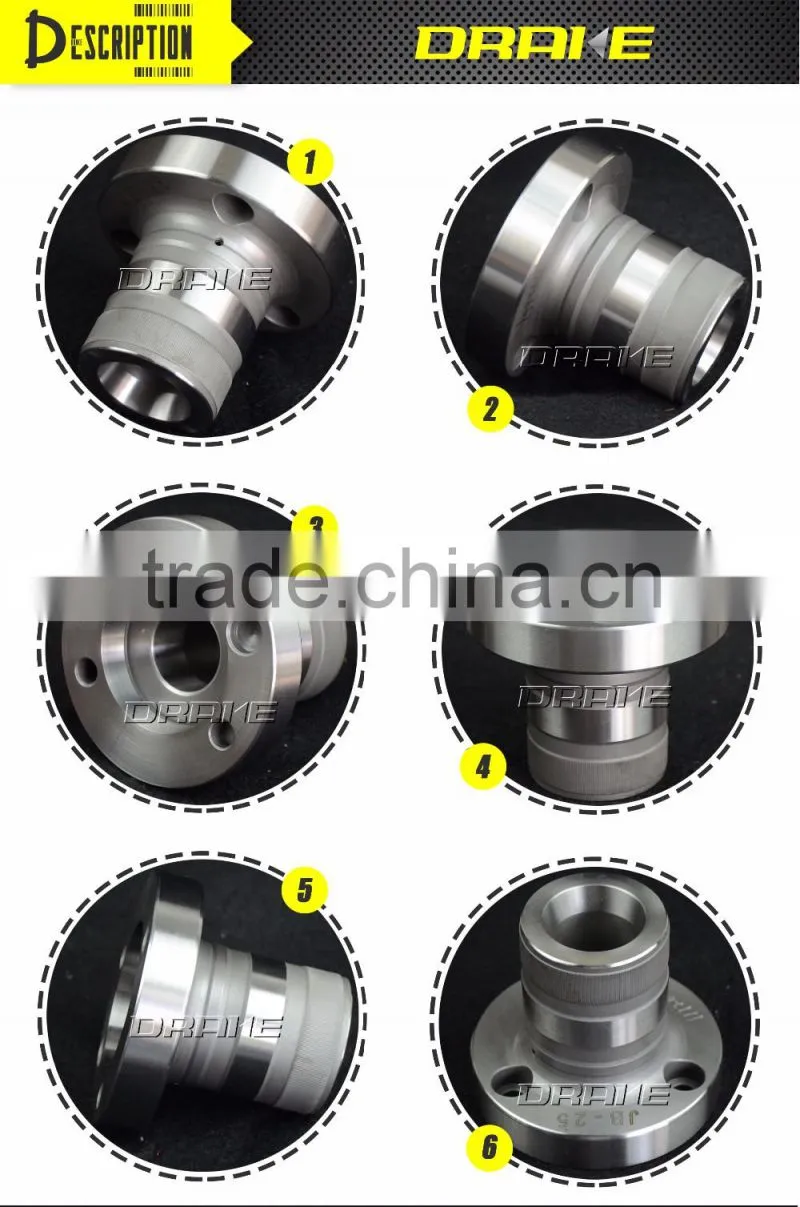

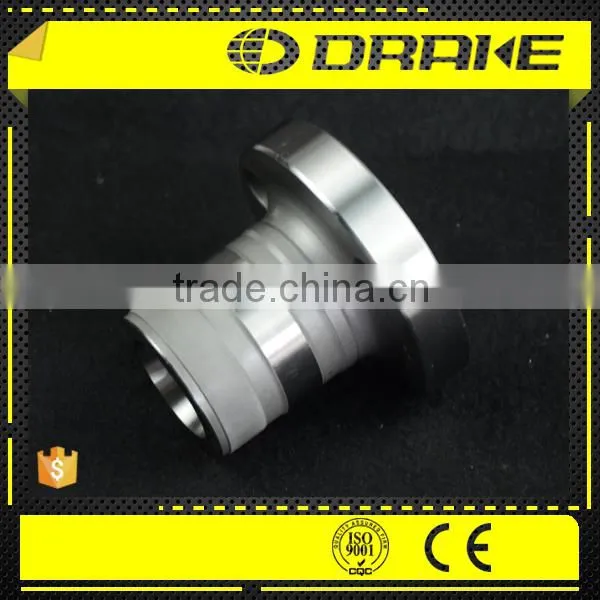

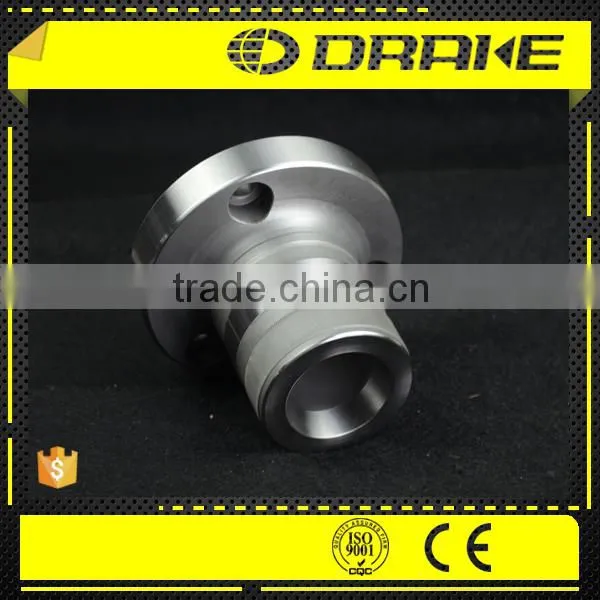

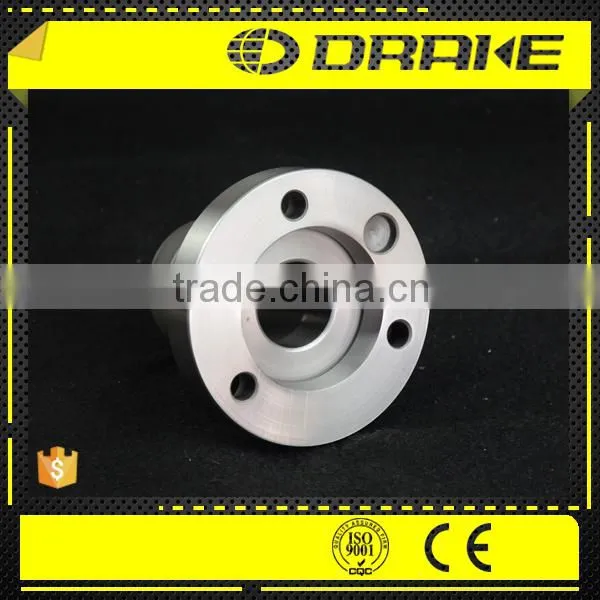

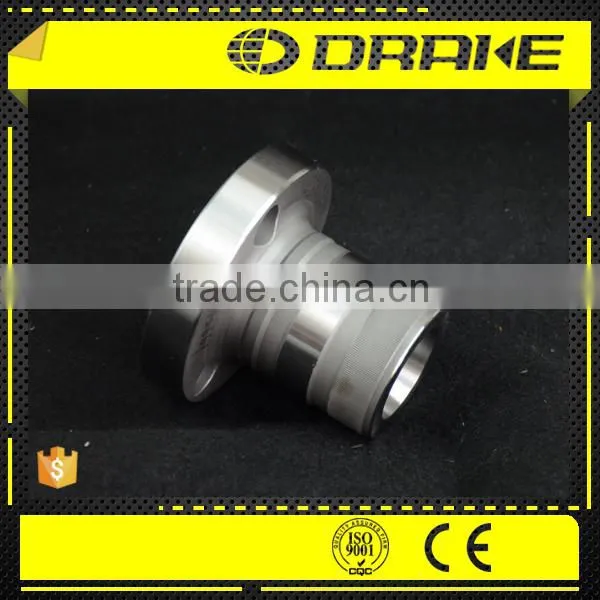

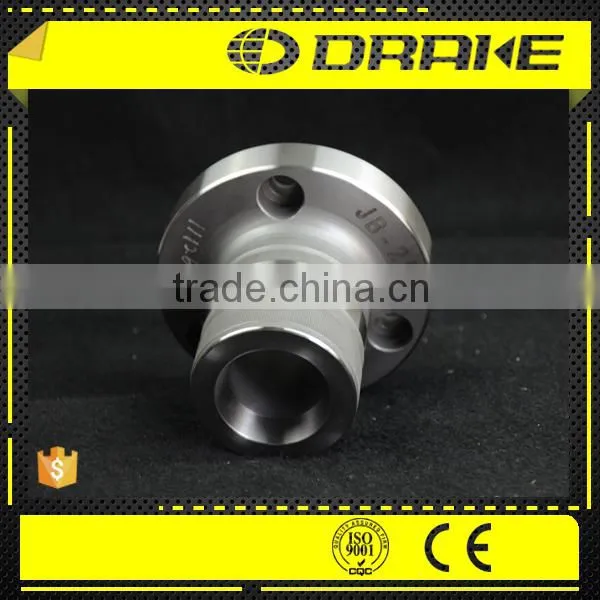

Direct mounting High precision Pull Back Collet Chuck
Feature of spindle collet chuck
1. Adopt heat-treatable steel to mold an integrated structure.
2. Pull to close power collet chuck, high chucking accuracy.
3. Direct mounting to spindle nose in A2 flange.
4. Accurate chuck body: 0.010mm
5. Application: NC lathe, lathe, grinding machine.

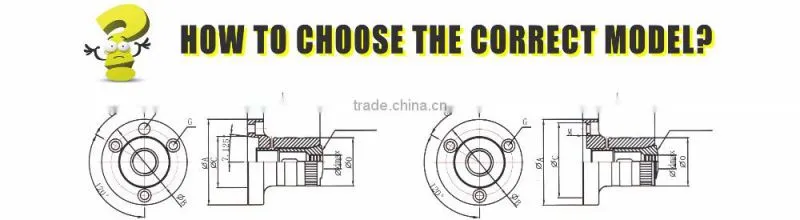

Taper spindle nose Stepped type spindle nose
Fig 1 Fig 2
Size Parameters
| Model/Spec. | JB-25 | JB-32 | JB-42 | |||
| Fig 1 | Fig 2 | Fig 1 | Fig 2 | Fig 1 | Fig 2 | |
| Spindle mounting | A2-4 | -- | A2-4 | -- | A2-5 | -- |
| A | 106 | 116 | 110 | 120 | 128 | 155 |
| B | 82.6 | 82.6 | 82.6 | 82.6 | 104.8 | 104.8 |
| C | 63.513 | 100 | 63.513 | 110 | 82.563 | 140 |
| D | 25# | 25# | 32# | 32# | 42# | 42# |
| G | 3-M8 | 3-M8 | 3-M10 | 3-M10 | 3-M10 | 3-M10 |
| L | 90 | 90 | 102 | 102 | 120 | 120 |
| M | -- | 4 | -- | 4 | -- | 5 |
| N | 20 | 20 | 25 | 25 | 20 | 20 |
| O | 60 | 60 | 70 | 70 | 85 | 85 |
| P | 14.5 | -- | 14.5 | -- | 19.5 | -- |
| dmax | 25 | 25 | 32 | 32 | 42 | 42 |
| Max. speed (RPM) | 7000 | 7000 | 7000 | 7000 | 6000 | 6000 |

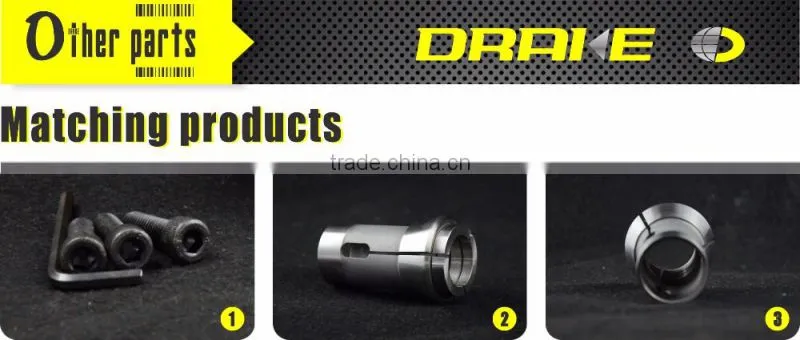

The matching products including:
1. Connecting bolt, quick coupling, filter block
2. Collets
