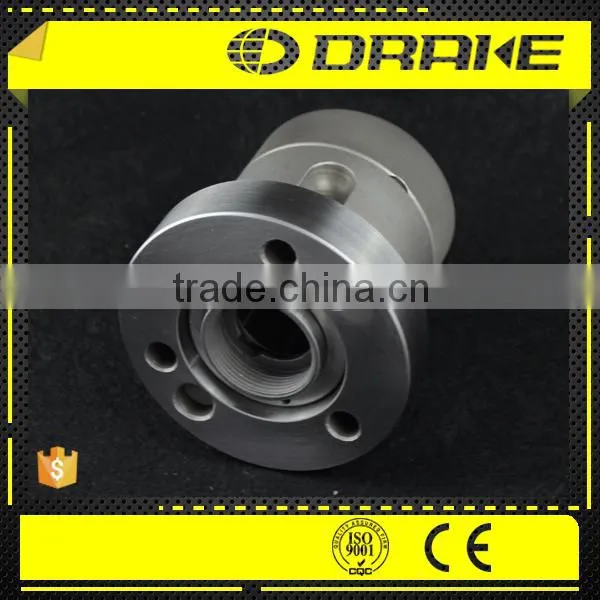

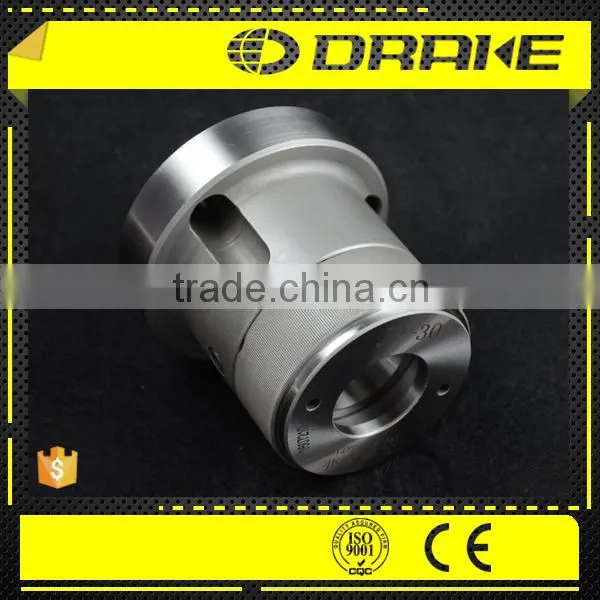

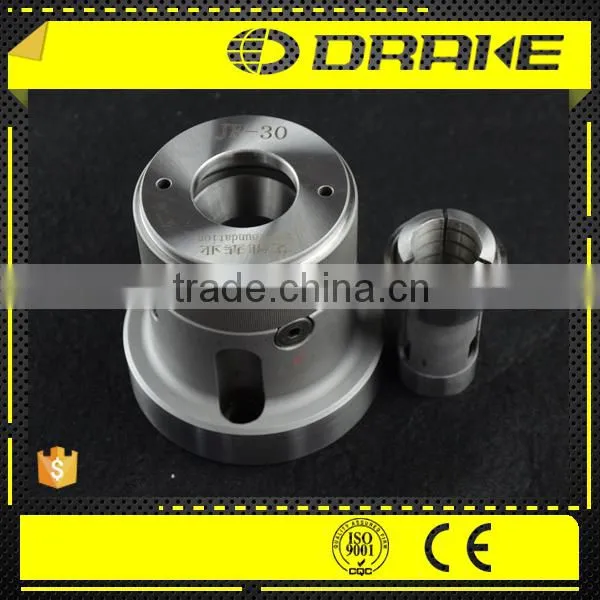

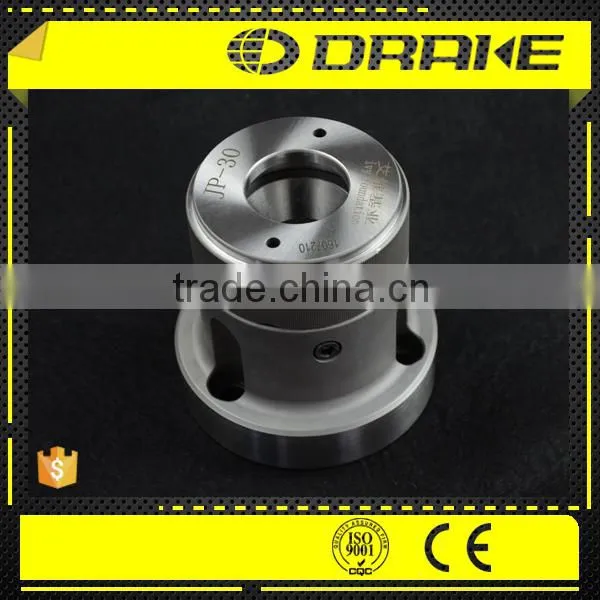

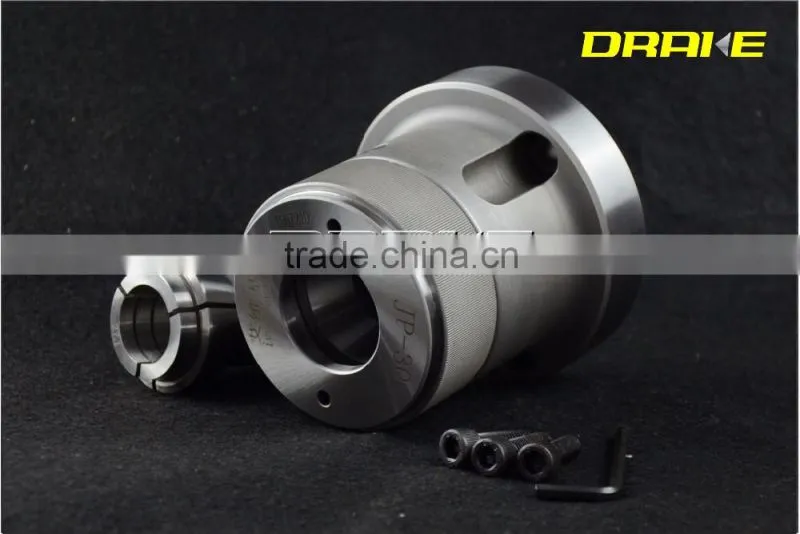

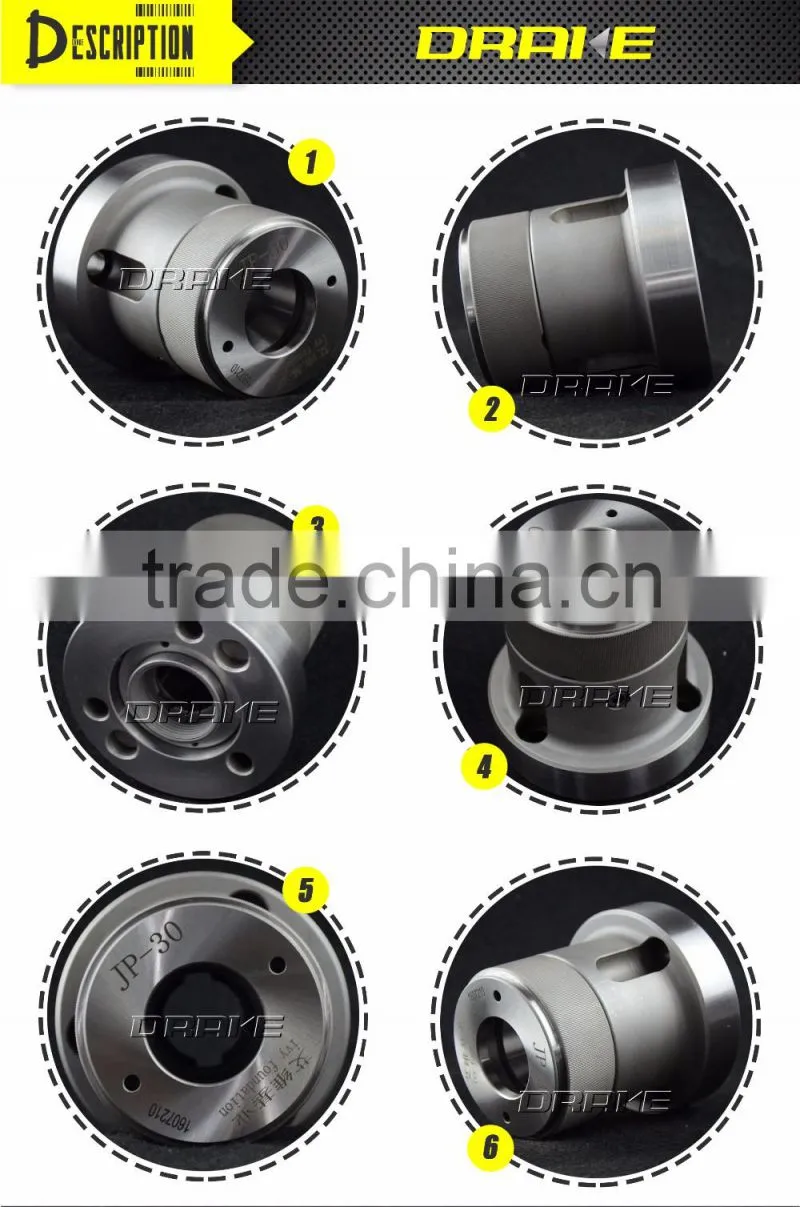

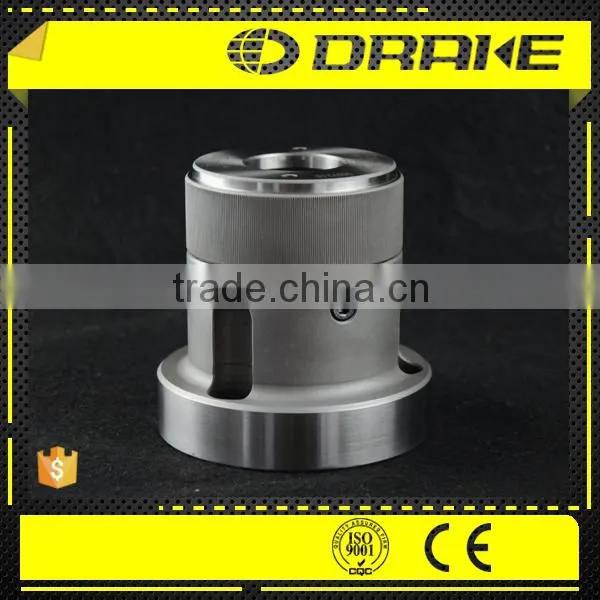

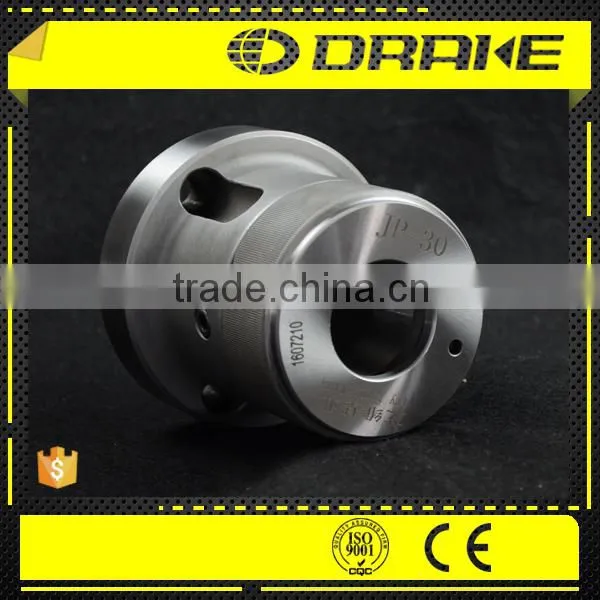

Standard spindle nose precision Dead-length collet chuck
Feature of spindle collet chuck
1. Steel body design.
2. Suitable for standard spindle nose
3. Precision dead-length collet chuck: 0.025mm repeatability.
4. Large clamping force
5. Collet is easy installation, which is drived by rear-mounted rotary cylinder without moving,
and stability.

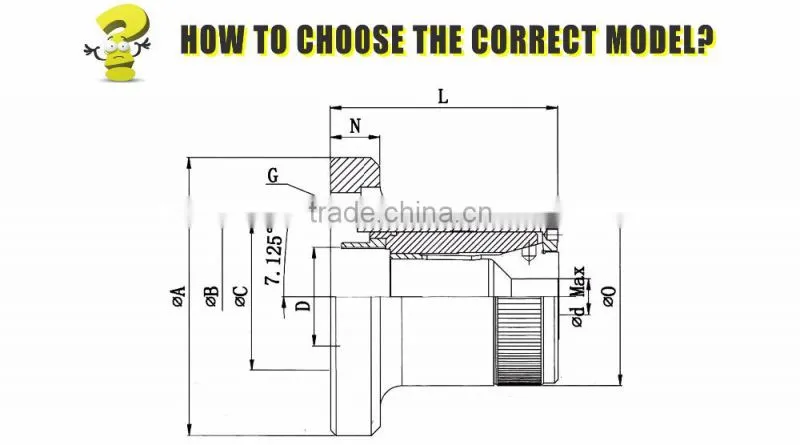

Size Parameters
| Model/Spec. | JP30 | JP42 | JP42 | JP60 | JP60 | JP80 |
| Spindle mounting | A4 | A5 | A6 | A6 | A8 | A8 |
| A (mm) | 112 | 135 | 170 | 170 | 220 | 220 |
| B (mm) | 82.6 | 104.8 | 133.4 | 133.4 | 171.4 | 171.4 |
| C (mm) | 63.5 | 82.6 | 106.4 | 106.4 | 139.7 | 139.7 |
| D (mm) | M50×P1.5 | M66×P1.5 | M66×P1.5 | M90×P1.5 | M90×P1.5 | M114×P2 |
| G (mm) | M10 | M10 | M12 | M12 | M12 | M16 |
| L (mm) | 110 | 123.9 | 123.9 | 144.9 | 144.9 | 176.4 |
| N (mm) | 21 | 27 | 32 | 27 | 37.5 | 35 |
| O (mm) | 85 | 102 | 102 | 130 | 130 | 156 |
| d Max. (mm) | 39 | 51 | 51 | 74 | 74 | 95 |
| Max. speed (min-1) | 7000 | 6000 | 6000 | 5000 | 5000 | 4000 |
The matching products including:
1. Connecting bolt, quick coupling, filter block
2. Collets
