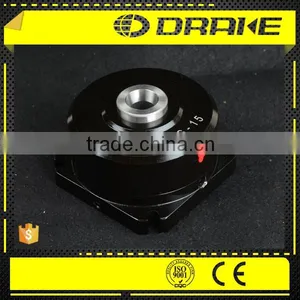

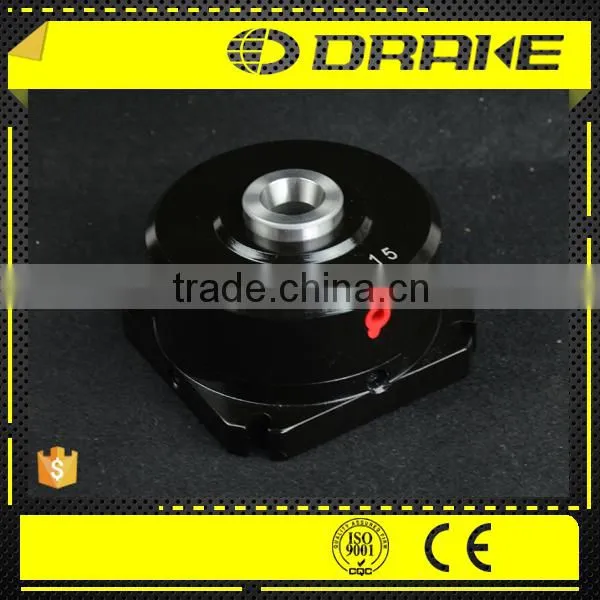

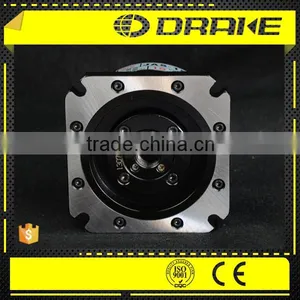

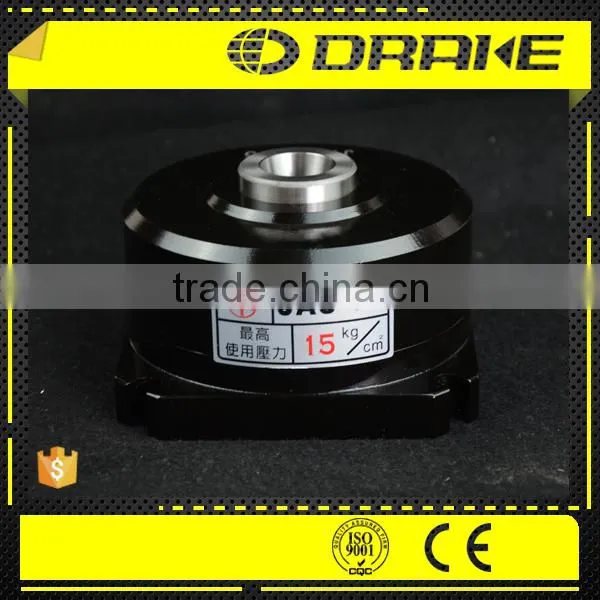

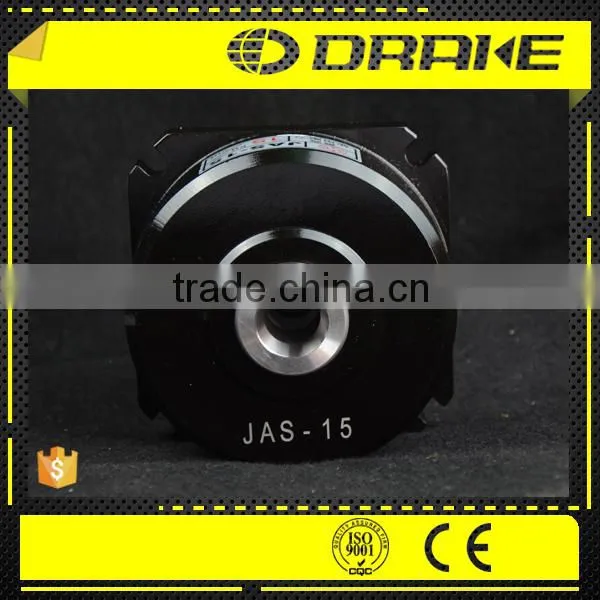

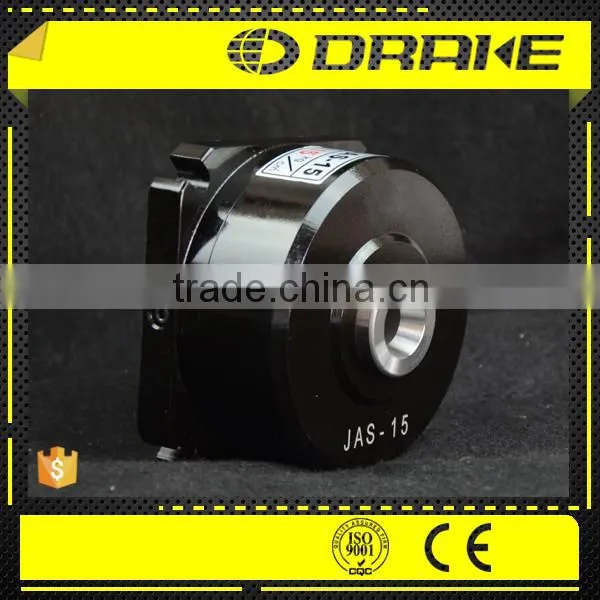

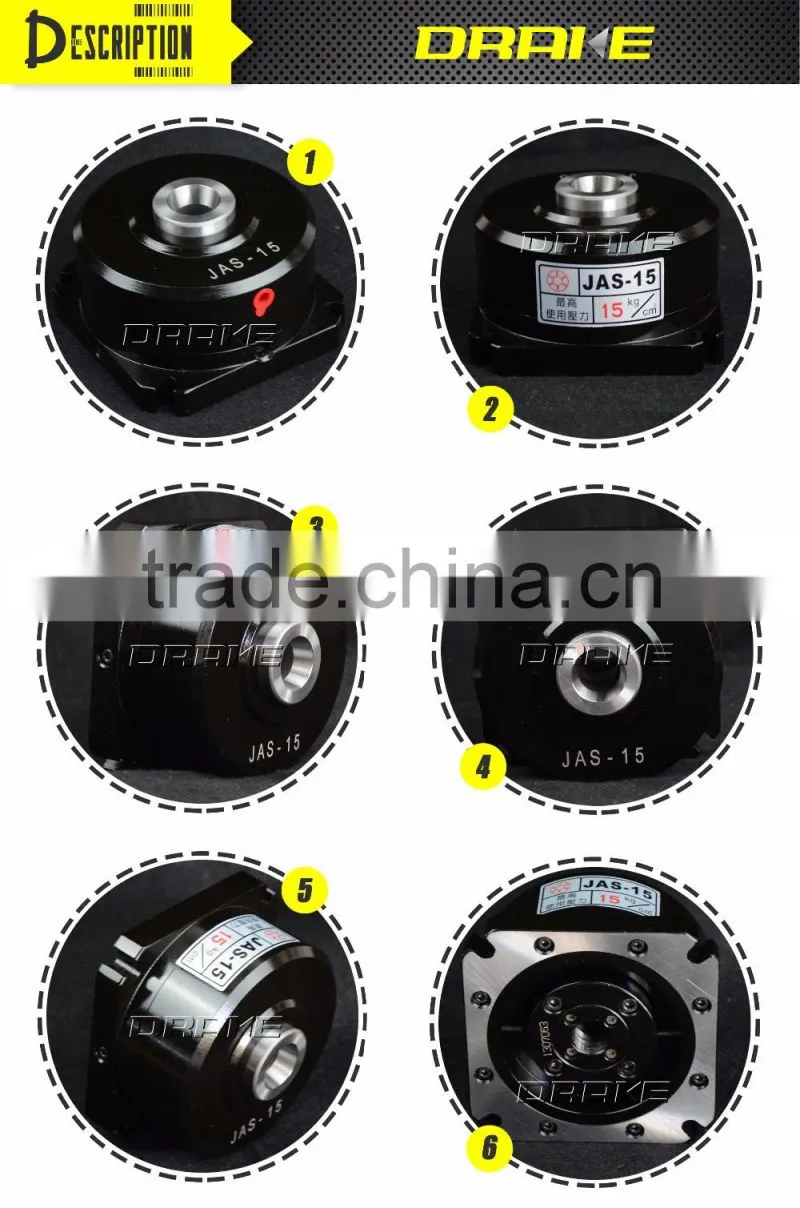

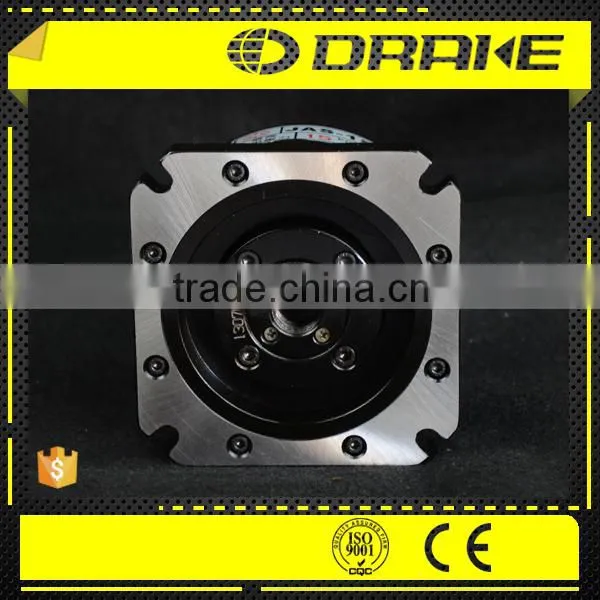

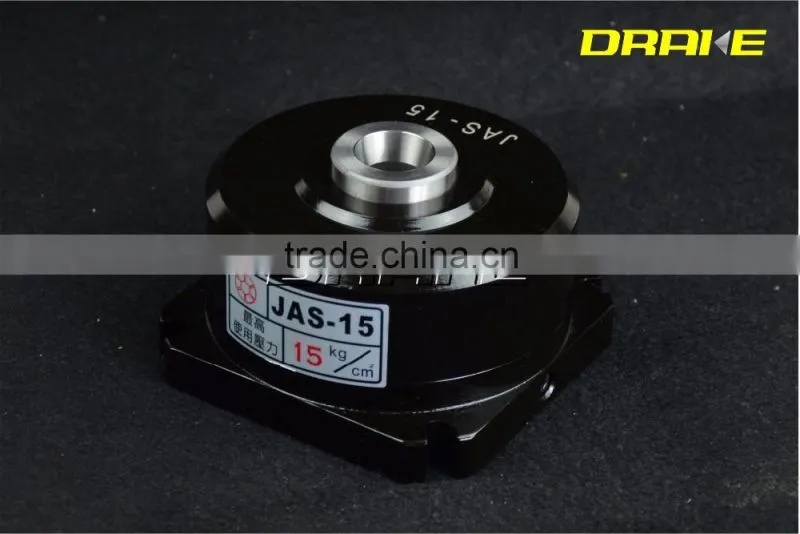

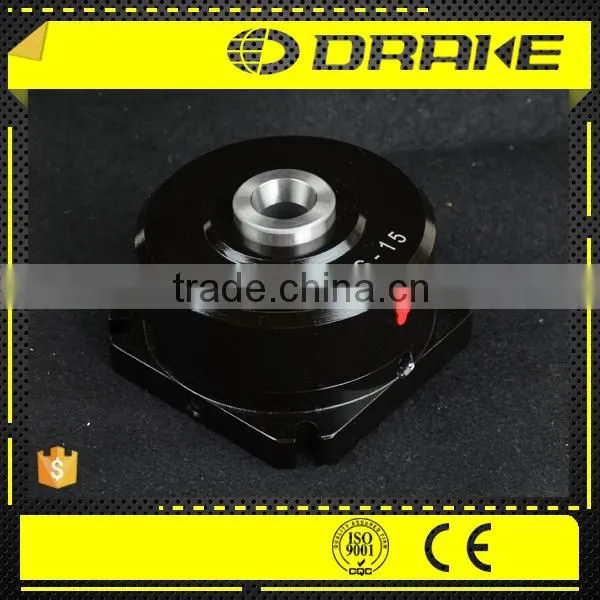

JAS open-center Stationary pneumatic power air lathe Collet Chuck
Technical features:
6. Lever or Foot Pedal Actuated.
7. Low Maintenance with Oil Mist Lubrication System
There are three questions to answer to aid the correct choice of power chuck:
1. Type and model of CNC lathe.
2. Length of workpiece?
3. Outer diameter of workpiece?
4. Processing requirement?

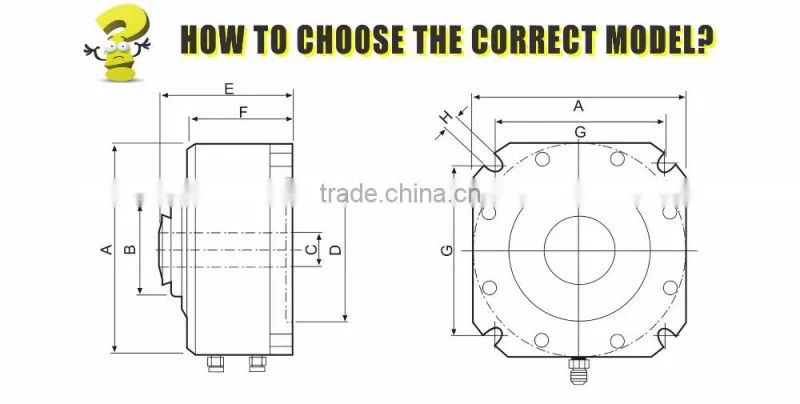

Size Parameters
| Model/Spec | A |
B | C |
D | E |
F | G |
H |
| JAS-15" | 118 | 40 | 14 | 90 | 76 | 64 | 98.3 | 9 |
| JAS-25" | 144 | 60 | 26 | 100 | 108 | 75 | 115.3 | 9 |
| JAS-40" | 168 | 110 | 40 | 100 | 98 | 77 | 136.5 | 11 |
It is recommended to grease chucks at least twice a day in order to maximize longevity
Performance Parameters
| Model/Spec | Power source |
Working pressure (kg/cm²) |
Max. chuck diameter (mm) |
Through-hole aperture |
Clamping torque (kg-m) |
Net weight (kg) |
| JAS-15" | Oil pressure | 3~15kg | ø16 | ø14 | / | 5 |
| JAS-25" | Oil pressure | 3~15kg | ø28 | ø25 | 4kg-m | 9 |
| JAS-40" | Air compressor | 3~7kg | ø50 | ø38 | 6kg-m | 12.2 |

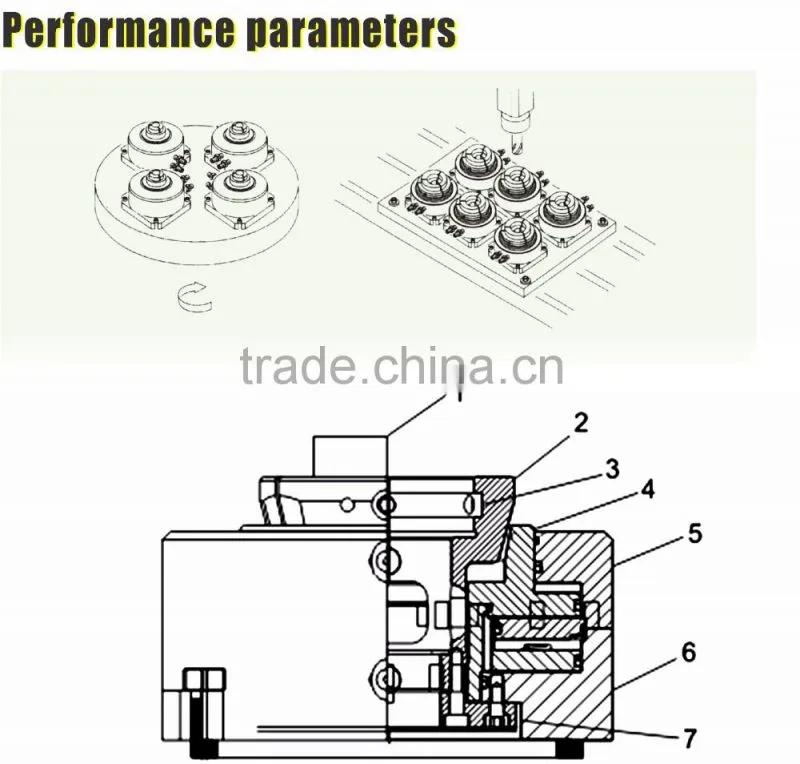

| No. | Name | No. | Name |
| 1 | Jaw pad | 5 | Block |
| 2 | Collet | 6 | Body |
| 3 | Hex. socket screw | 7 | Fixed nut |
| 4 | Sleeve |
The matching products including:
1. Connecting bolt
2. Jaw pad
3. Collet
