Help Centeroff Grid 5kw Solar Wind Hybrid Power System 2kw Wind Turbine and 3kw Solar Panel Generator System
Related Products
-
5kw Off-grid Solar Home Power System/ 5000w Roof Solar Panels SystemNegotiableMOQ: 1 Set -
10kw Solar Panel System, Solar Power System, Reanewable EnergyNegotiableMOQ: 1 Set
-
1KW Off Grid Solar SystemUS$ 1,000 - 3,000MOQ: 1 Set
-
LED Solar Street Light System With 100wUS$ 800 - 1,600MOQ: 1 Set
-
LED Solar Street Light SystemUS$ 800 - 1,600MOQ: 1 Set
Specifications
10years warranty for panel15years wind generator life time
5-7years battery life time
wind solar 24hours output
off-grid wind and solar hybrid system mainly use for home ,street lights system,both of them are Economic, Green and Environmentally Friendly .
Advantage: At night or rainy day, wind turbine generate wind power. In sunny day, solar panel generate solar power. In windy and sunny day, both of them generate power.
wind turbine :3pcs or 5pcs blades optional;
guy cable tower or free stand tower optional;
solar panel :mono or poly panel optional;
battery capacity and quantity can be optional;
Question: What can be included for this system?

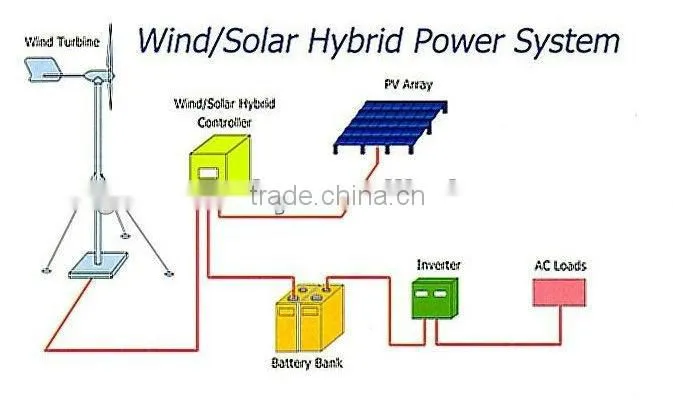

Answer: This hybrid power system includes:solar panels,wind turbine(wind generator+blades+tower),wind and solar hybrid controller,inverter,battery,solar pv cable,bracket,and disconnectors.
Question: What's the advantage for this solar wind hybrid system?
Answer: 1.Steady operating.
2.The most advantage:On grid energy backup(not means sell electricity,just backup)
3.Make the utmost of nature resource of wind and sun.
4.Easy installation according to our instructions.
fessional parts supply
Question: How about the lifetime of your hybrid power system?
Answer: The life time for solar panel is 25years,wind turbine is 20years,another parts is from 6-15years
5KW Solar and Wind hybrid power system |
||||||
PICTURE |
MODEL |
PACKING SIZE(MM) |
WEIGHT(KG) |
QTY(PCS) |
Remarks |
|
|
|
2KW/96VDC Wind generator [Permanent-magnet -3phase A.C. Aluminum Alloy material] |
1660*520*360mm |
172 KGS |
1 |
Notes: |
|
|
|
2KW/96VDC blades, 3pcs[4.0m reinforced FPR,(blade),(wheel hub & press board), (dome)] |
|||||
|
|
Guy cable tower [Height 6m,Galvanized seamless steel pipe surface, then spray antiseptic white paint] |
3000*89*89mm |
60 KGS |
1 |
||
|
|

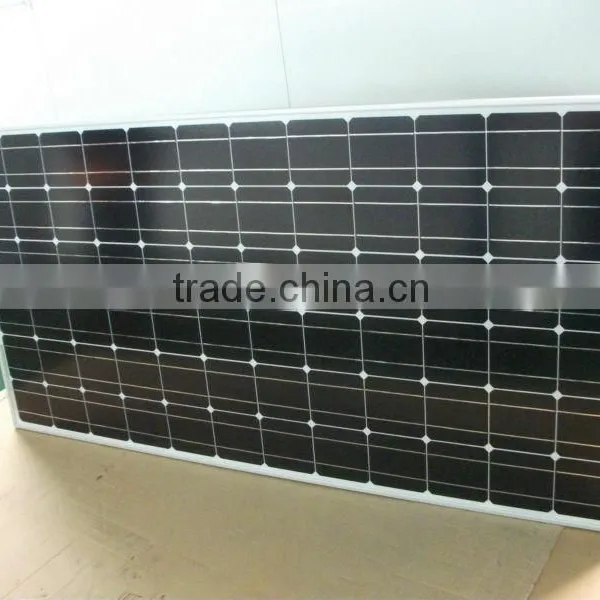

200W/36V Mono solar panel |
1598*838*88mm/CTN, 2pcs/ctn |
33KGS/CTN(2pcs/ctn) |
16 |
||
|
|
5KW/96VDC off-grid solar inverter (LCD display,indoor,DC input 96V,AC output 220V/50HZ ,without the lightning protection,can be made with AC section) |
555*345*530mm/CTN |
35 KGS |
1 |
||
|
|
5KW/96VDC Wind and solar hybrid controller |
master device package size: 500*300*300mm, dump load box package size: 750*450*260mm |
master device weight: 9kgs, dump-load box weight: 19.5kgs |
1 |
||
|
12V200AH Gel battery(green shell) |
522*240*218mm/CTN |
64 KGS/PC |
8 |
||
