Specifications
off grid solar power system for house with panels, inverter, controller, batteryhigh efficiency power output 10kwh
CE ISO9001
Solar Home System Applications:
1. Living house and home building
2. Office building, factory and warehouse
3. Shopping mall, venue, stadium and so on
4. Power station, field operation and some huge engineer construction.
Greentechy solar power system devices:
solar panel: grade A, 10years warranty
battery: life time AGM 5-7years, GEL 7-10years.
controller: PWM technology. (MPPT optional)
inverter: pure sine wave, low frequency design
Greentechy 5kw/5000w solar power system for home ( off grid solar system)
System features:
(1) Reliability
Solar power systems seldom break down even in harsh weather conditions and hostile environment, so they are often applied to occasions that demand highly reliable power supply without increasing system construction cost.
(2) Durability
Solar power systems can generate electricity for 25 continuous years or more.
(3)Autonomous Power Supply
Off-grid PV systems can reduce the inconvenience and other bad effects which utility grid failure may bring to the users.
(4) Modularized Flexibility
PV modules are highly adaptable, allowing the users to choose and adjust the system's scale as per their need.
5000W solar power system loads | |||||||||
Load |
Model |
Load power |
Unit |
Work time (one day) |
KWH (one day) |
||||
Light |
|
11W |
8 |
6 |
528Wh |
||||
Computer |
|
100W |
2 |
5 |
1000Wh |
||||
Printer |
laser |
250W |
1 |
1 |
250Wh |
||||
Fax |
Ink |
150W |
1 |
8 |
1200Wh |
||||
Fridge |
150L |
100W |
1 |
24 |
2400Wh |
||||
Washing machine |
|
300W |
1 |
1 |
300Wh |
||||
Microwave |
|
1000W |
1 |
1 |
1000Wh |
||||
Air conditioner |
1.5 pair |
1200W |
1 |
5 |
3000Wh |
||||
Tv receiver /VCD |
|
25W |
1 |
6 |
150Wh |
||||
Tv |
21 inch |
95W |
1 |
6 |
570Wh |
||||
Water pump |
|
400W |
1 |
1 |
400Wh |
||||
Total |
|
3808W |
|
|
10798Wh |
||||
5000W solar power system configuration | |||||||||
System name |
Total capacity |
Model |
Power |
Unit |
deveice details |
||||
Solar panel |
3200WP |
Mono-200W |
200W |
16 |
Mono, Grade A, 10years warranty, |
||||
Solar battery |
400AH/96V |
12V200AH |
200AH/12V |
16 |
life time: AGM type 5-7years, GEL 7-10years |
||||
Controller |
30A/96V |
96VDC/30A |
30A/96V |
1 |
PWM technology |
||||
Inverter |
5000W |
96VDC/5KW |
5000W/96V |
1 |
pure sine wave, low frequency design. |
||||
|
REMARKS: 1, Payment terms: TT, 30% deposit, balance before delivery. 2, Delivery time: about 10-15days after deposit.
| |||||||||

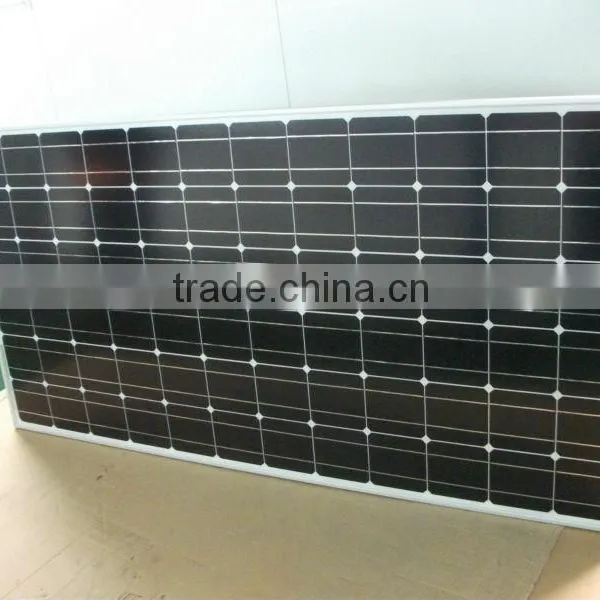

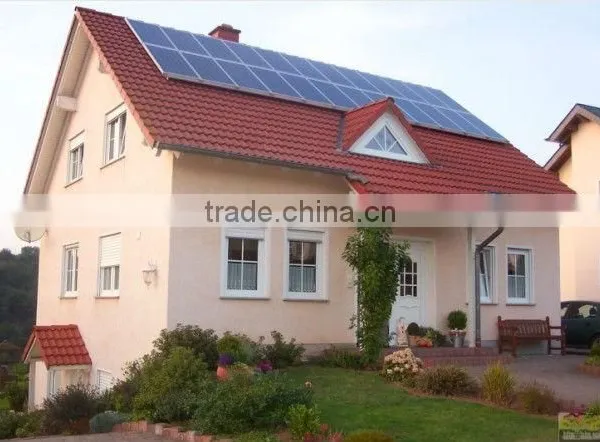

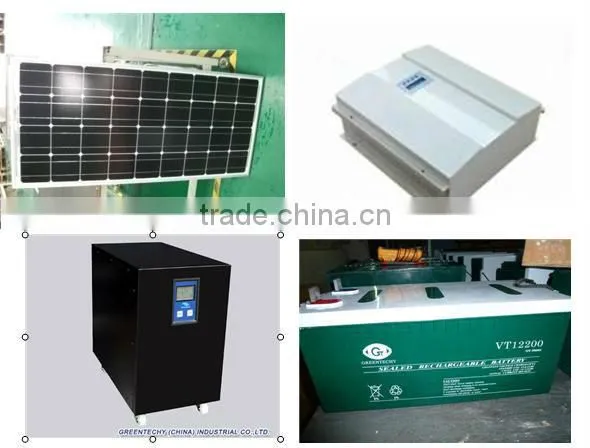

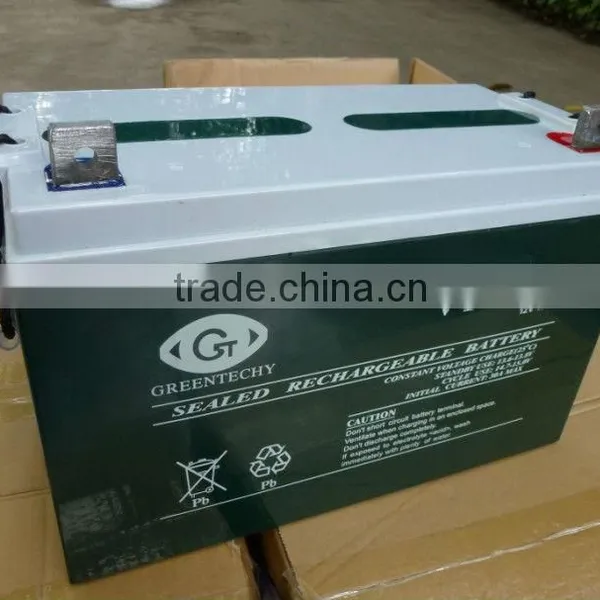

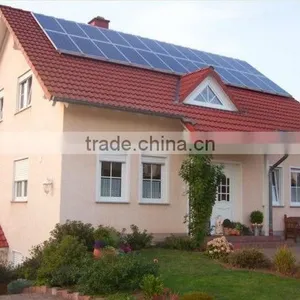

5000w off grid solar power system equipment photos for your reference
