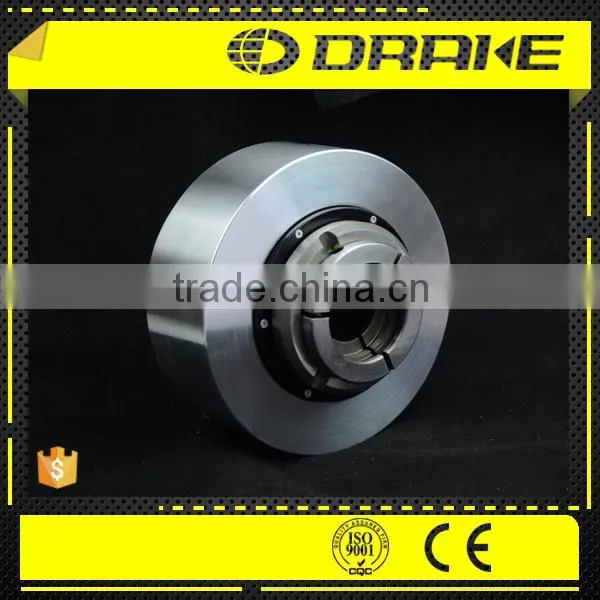

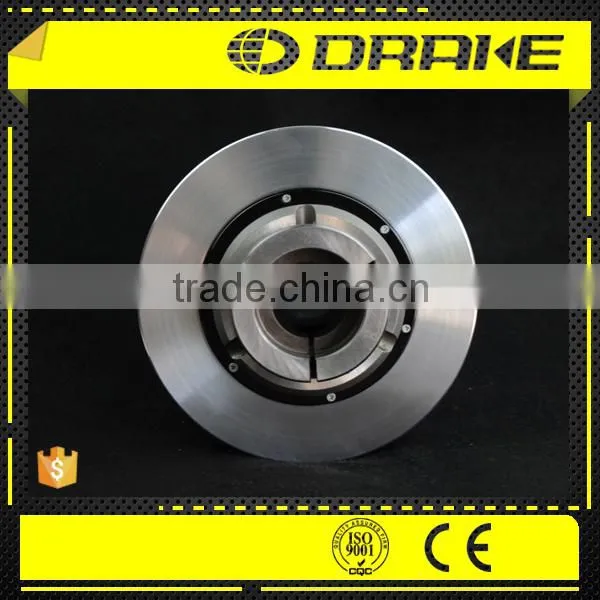

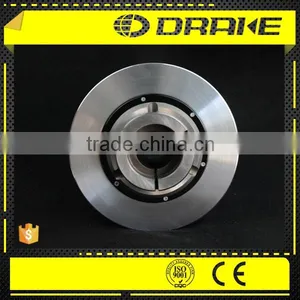

JA through-hole high speed rotary pneumatic power quick lathe collet chuck for cnc tapping
- 12055 Set / Sets per Month
- SHANGHAI QINGDAO NINGBO TIANJIN DALIAN etc.
- T/T L/C D/P D/A Credit Card PayPal
-
LENZ6 valve chuck collet
-
LIVTER 5 inch 4 jaw wood lathe chuck for woodworking turning machine
-
LIVTER 3.75 inch woodworking chuck sets for wood rotary lathe machine accessories umbrella tooth lathe chuck sets
-
Lathe Chucks 3 Jaw Lathe Chuck 10\"/250mm 3 Jaw Drill Mill Tool Metal Lathe Chucks
-
LIVTER Multi-Functional Small Woodworking Lathe Chuck Household Diy Multi-Purpose British Threaded Shaft Connecting Four-Jaw Lin
-
High Precision 4-Inch 6-Inch Drilling Tools 4 Jaw Linkage Lathe Chuck For Wood Lathe
Product Details
| Place of Origin: | Jiangsu, China | Brand Name: | IVY pneumatic power collet chucks | Model Number: | JA7-40 hydraulic collet chuck |
| Power: | Hydraulic | Number of Jaws: | Other |
Product Description
JA through-hole high speed rotary pneumatic power quick lathe collet chuck for cnc tapping
Technical features:
6. Widely applied to convert manual lathe into powered ones.
7. Widely applied to build special purpose machines.
8. Do not spray cutting fluid to the chuck directly.
There are three questions to answer to aid the correct choice of power chuck:
1. Type and model of CNC lathe.
2. Length of workpiece?
3. Outer diameter of workpiece?
4. Processing requirement?
Size Parameters
| Model/Spec | A | B | C | D | E | F | G | H | I | J |
| JA5-25" | 135 | 100 | 26 | 4 | 105 | 45 | 68 | 170 | 115 | M8×1.25 |
| JA7-40" | 192 | 155 | 46 | 5 | 125 | 65 | 95 | 212 | 172 | M10×1.5 |
| JA7-70" | 192 | 155 | 69 | 5 | 140 | 105 | 136 | 266 | 172 | M10×1.5 |
It is recommended to grease chucks at least twice a day in order to maximize longevity
Performance Parameters
| Model/Spec | Working pressure (kg/cm²) | Limit speed (rpm) | Clamping torque (mm) | Clamping stroke (mm) | Through-hole aperture | Max. chuck diameter | Net weight (kg) |
| JA5-25" | 2~8 | 1800 | 3 | 1.5 | Ø26 | Ø32 | 9.2 |
| JA7-40" | 2~8 | 1800 | 4 | 1.5 | Ø45 | Ø50 | 16.9 |
| JA7-70" | 3~8 | 1600 | 6 | 1.5 | Ø68 | Ø90 | 27 |
The matching products including:
1. Connecting bolt
2. Jaw pad
3. Collet
