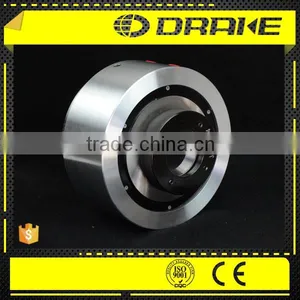

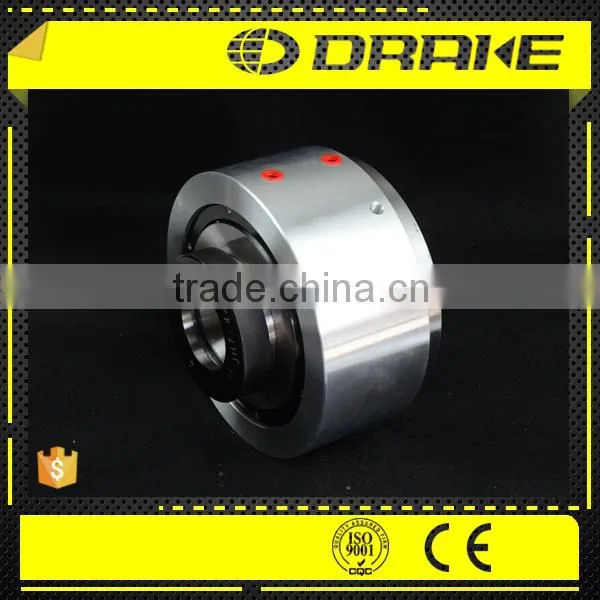

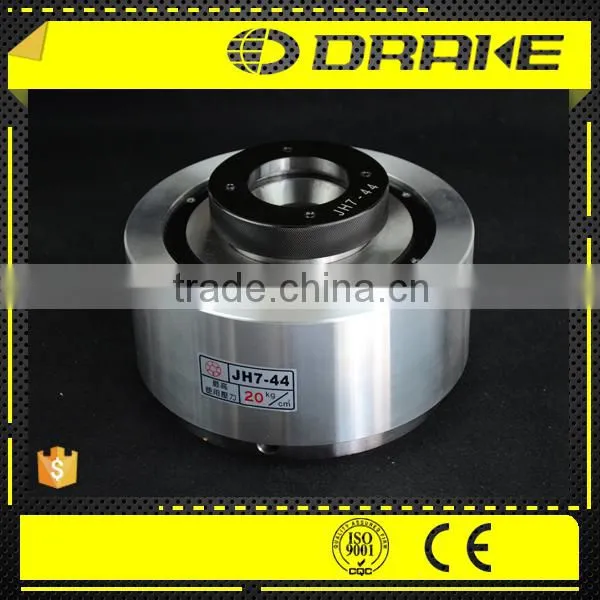

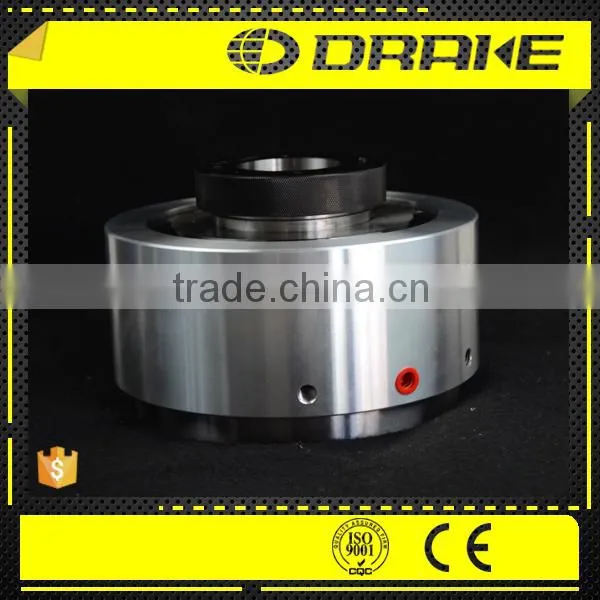

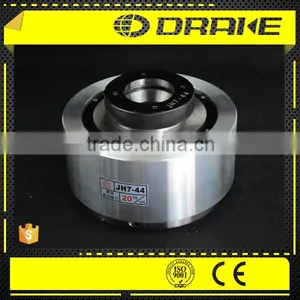

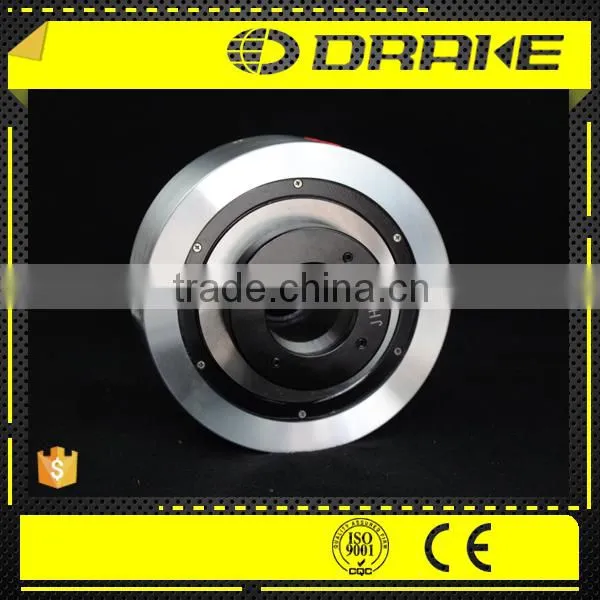

JH7-44 OD collet type ID Expanding pneumatic and hydraulic power lathe quick collet chuck for cnc lathe
Technical features:
6. Widely applied to convert manual lathe into powered ones.
7. Widely applied to build special purpose machines.
8. Do not spray cutting fluid to the chuck directly.
9. The Besides O.D. chucking, customer can easily convert a JA7-44/JH7-44 rotary
power chuck into a I.D. expanding chuck by installing an expanding kit including a
push-nut, a mandrel, and a expading sleeve.
10. The expanding sleeve is designed and made according to customer's requirement.
There are three questions to answer to aid the correct choice of power chuck:
1. Type and model of CNC lathe.
2. Length of workpiece?
3. Outer diameter of workpiece?
4. Processing requirement?
Size Parameters
| Model/Spec | A |
B | C | D | E |
G | H |
I(P.C.D) |
J |
| JA7-44" | 192 | 155(H6) | 45 | 5 | 135 | 110 | 212 | 172 | 3-M10×1.5 |
| JH7-44" | 192 | 155(H6) | 45 | 5 | 135 | 110 | 212 | 172 | 3-M10×1.5 |
It is recommended to grease chucks at least twice a day in order to maximize longevity
Performance Parameters
| Model/Spec | Collet/Jaw |
Air/Hydro |
Max. Pressure |
Max. Speed (rpm) |
Max. clamping diameter |
Clamp Force (kgf) |
Net weight (kg) |
| JA7-44" |
C-44 Collet C-44I Expanding Kit |
Air | 10-20kg |
JA7-44: 1600 JA7-44I: 2200 |
45 | 5400 | 17 |
| JH7-44" |
C-44 Collet C-44I Expanding Kit |
Hydro | 10-20kg |
JA7-44: 1600 JA7-44I: 2200 |
45 | 10800 | 17 |

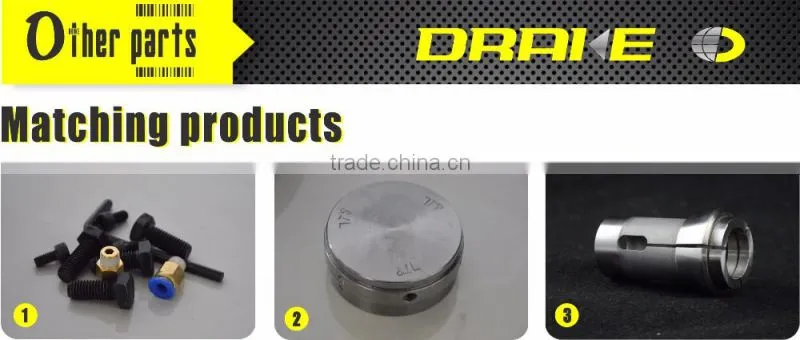

The matching products including:
1. Connecting bolt
2. Jaw pad
3. Collet
