Specifications
1.Low start-up speed2.Stable operation
3.Hight output efficiency
4.Anti-corrosion treatment
A wind and PV hybrid power system consists of wind power generator set and PV cell pack.It may rectify the low-voltage AC output from the wind power generator set into DC through a specific controller and converge with the DC output from the PV cell pack to be charged into the battery for purpose of steady voltage,energy storage process so as to provide a steady DC power supply to LED for the user. This product can specially used for windy area and street lighting due to omission of cable laying and uninterrupted service etc.It may mainly be used for islands along frontiers,remote mountainous areas,and pasturing areas etc.Which cannot be covered by the grids or that a small system cannot meet requirements.
Quality standards is the core of Greentechy's culture. Our complete system engineering had been exported to Italy, Britain, France, Russia, Pakistan, Mongolia, Indonesia etc.
Wind turbine capacity is from 200w, 300w, 600w,1kw, 2kw, 3kw, 5kw, 10kw, 20kw, 30kw, 50kw to 100kw.
Off-grid wind-force generating set: 200W-5KW automatic partial tail protection, 10KW-50KW wind turbine hydraulic brake protection,extend the service life of wind turbines.
Grid-connected wind generator Specifications, 30KW-150KW wind turbine with variable speed sensing equipment, for wide speed range, PLC automatic control.
Wind turbine tower with full hot dip galvanizing process, 200W-5KW wind generator aluminum alloy generator,20 years no rust, more stable performance. .
Detail Information
Power |
10000W |
Type of generator |
Permanent-magnet -3phase A.C. |
Blade diameter |
8.0m |
Blade Material: |
FRP (Fiber glass reinforced*3) |
rated rotor speed |
160r/min |
rated wind speed |
10m/s |
rated Power |
10000W |
max Power |
15000w |
output voltage |
DC380V/AC220V/50HZ |
start up wind speed |
3(m/s) |
operating wind speed |
3-25(m/s) |
security wind speed |
40(m/s) |
Rate-limiting mode |
Hydraulic brakes, PLC control |
Dogvane |
Measurement of wind turbine angle agaist wind |
Anemoscope |
Testing real-time wind speed and then transfer the signal to controller |
height of guy cable tower |
12m(159*5)Galvanized seamless steel pipe surface, then spray antiseptic white paint. |
top quality except tower |
600kg |
Total weight(kg) |
1463kg |
output controller system |
Controller , Inverter |
|
Suggested batteries and it’s capacity |
12V 150AH 30psc (30PCS 12V150AH) |
can supply power for |
Small Village, air-condition, refrigerator, washing machine , water pump ,electric pan, color TV, lighter, fanner, charger |

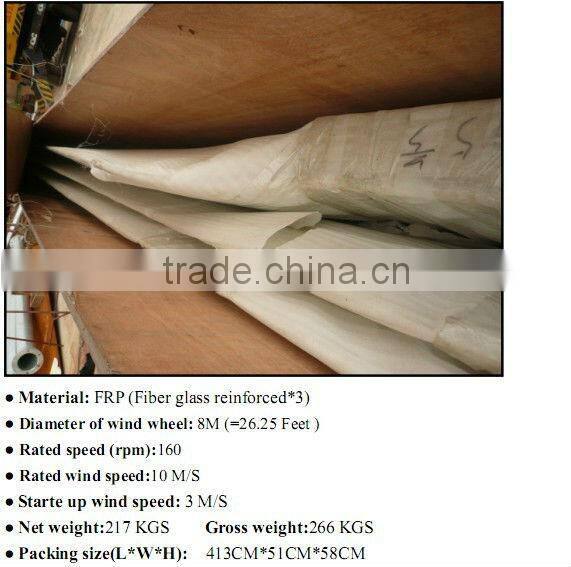

1. Blades

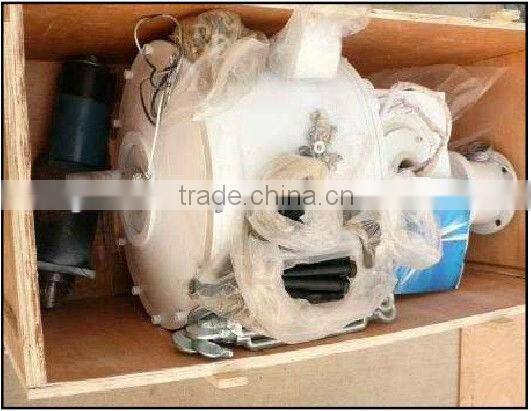

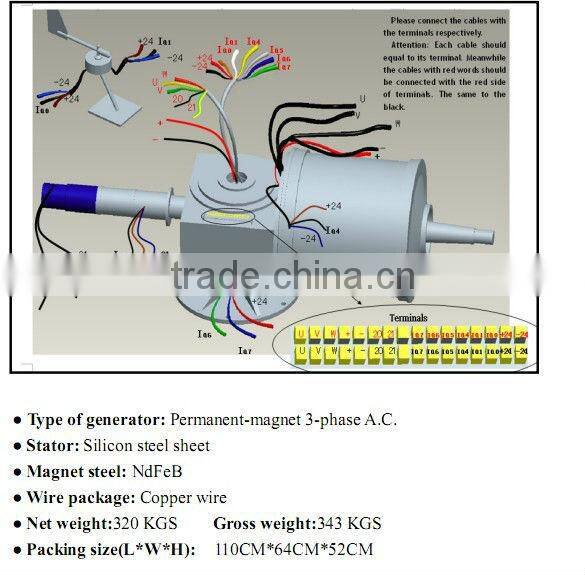

2. Generator

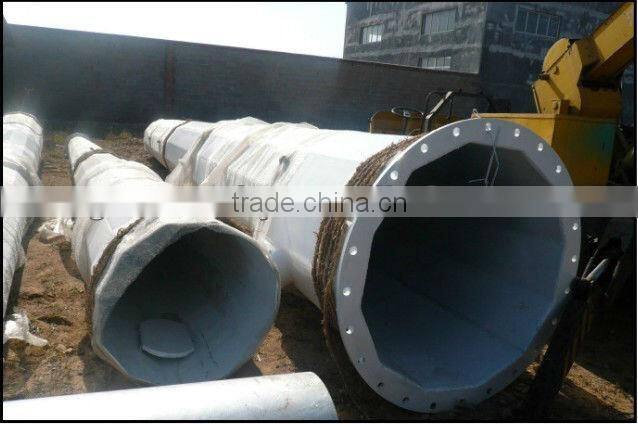

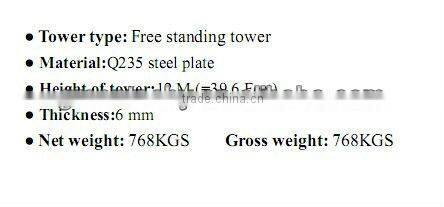

3. Tower
