Indoor Full Color 160mm*80mm P2.5 LED Video Wall

Indoor Full Color 160mm*80mm P2.5 LED Video Wall thumbnail-1
Indoor Full Color 160mm*80mm P2.5 LED Video Wall thumbnail-2
Indoor Full Color 160mm*80mm P2.5 LED Video Wall thumbnail-3
Indoor Full Color 160mm*80mm P2.5 LED Video Wall thumbnail-4
Indoor Full Color 160mm*80mm P2.5 LED Video Wall thumbnail-5
Indoor Full Color 160mm*80mm P2.5 LED Video Wall thumbnail-6
Indoor Full Color 160mm*80mm P2.5 LED Video Wall photo-1
Indoor Full Color 160mm*80mm P2.5 LED Video Wall photo-2
Indoor Full Color 160mm*80mm P2.5 LED Video Wall photo-3
Indoor Full Color 160mm*80mm P2.5 LED Video Wall photo-4
Indoor Full Color 160mm*80mm P2.5 LED Video Wall photo-5
Indoor Full Color 160mm*80mm P2.5 LED Video Wall photo-6
US$ 1 - 5 MOQ: 2 Square Meters
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
CHENG WEN
Model Number:
p2.5
Contact Supplier Request Quote Chat Now
Guangzhou Cheng Wen Photoelectric Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
SHEN ZHEN OR GUANG ZHOU
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name CHENG WEN
Model Number p2.5
Usage Other, Indoor, Indoor
Tube Chip Color Full Color
Display Function Video
Pixels Other, 2.5mm
Screen Dimension for buyer

Product   description

module parameters
Model P2.5
Pixel pitch 2.5 mm
Pixel configuration 1R1G1B
LED lamp SMD 3 in 1
Pixel matrix per panel 64*64pixels
Module resolution rate 64*64=2048dots
Module dimensions (W*H*D) 160*160*14.1mm
Weight 0.25kg±0.05kg
Package material Polycarbonate
Construction combined driver board
Input votage 4.8-5.5V
MAX. input current 6.8A±0.1A
Driving mode 1/16 scan, constant current
Module power ≤34 W
cabinet parameters
Brightness ≥1000 cd/m2
Cabinet dimensions (W×H×D) 480*480*75 mm
Resolution ratio 192*192=36864dots
Weight 10±0.05 kg
Pixel density 160000dots/m2
Viewing angle (H/V) 120±10 deg
Best viewing distance ≥2.5m
MAX. power ≤400W/m2
AVE. power 200W/m2
control parameters
Gray scale per color 12-16bits for red,green,blue
Colors 16777216
Life time ≥100,000 hours
MTBF ≥10,000 hours
 Refresh rate ≥ 500Hz
MAX. power ≤1600 W/m2
Input voltage (AC) 110V ~ 240V
Operating temperature -20°C ~+ 50°C
Operating humidity 10% ~ 90%
Source compatibility (with video processor) DVI/VGA,Vedio(mutiple modes),RGBHV,composite Vedio Single,S-VIDEO,YpbPr(HDTV)

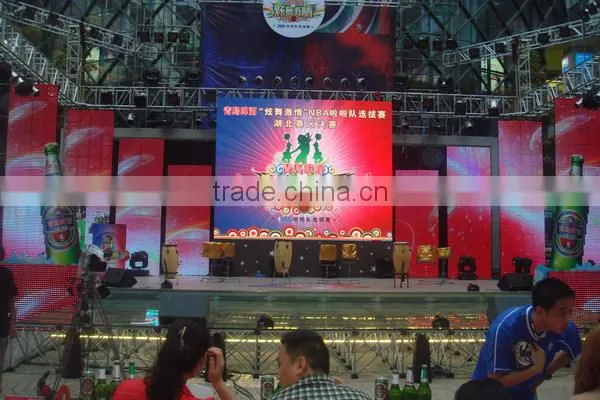

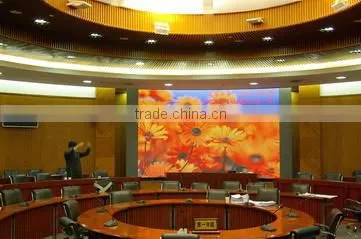

Product  show

Indoor Full Color 160mm*80mm P2.5 LED Video Wall









Indoor Full Color 160mm*80mm P2.5 LED Video Wall







Indoor Full Color 160mm*80mm P2.5 LED Video Wall









Our  factory

Indoor Full Color 160mm*80mm P2.5 LED Video Wall









Display  box

Indoor Full Color 160mm*80mm P2.5 LED Video Wall











Control card

Indoor Full Color 160mm*80mm P2.5 LED Video Wall

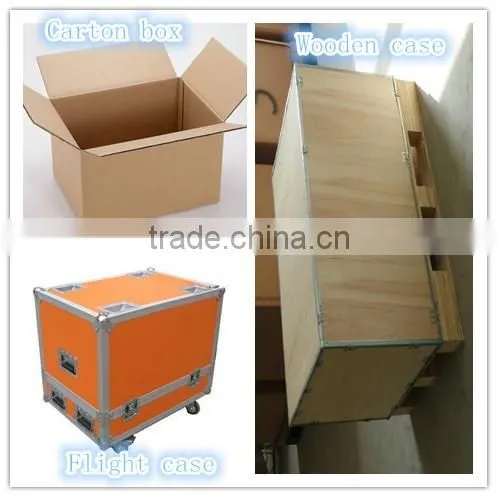

External  packing

Indoor Full Color 160mm*80mm P2.5 LED Video Wall









Our  service

1.Your inquiry related to our products or price will be replied in 24hrs

2.OEM&ODM,any your customized lightings we can help you to design and put into product.

3.Distributoership are offered for your unique design and some our current models

4.Protection of your sales area,ideas of design and all your private information

5.Top Quality+Reasonable Price+Responsible After Service=Successful & Win

6. Export countries :  Peru,  Mexico, Colombia, Turkey, US, UK, etc.





    Warmly welcome to your inquiry ,please contact me:

 Indoor Full Color 160mm*80mm P2.5 LED Video Wall







Thank you very much! Have a nice day!
