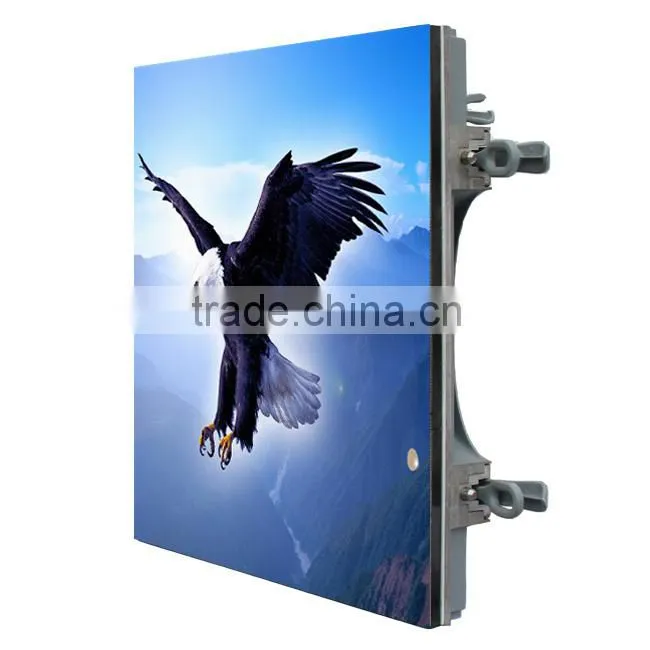

Help CenterLed Screen High Quality Led Display Panel p3 Exhibition Advertising Display Screen
Related Products
-
China Guangzhou High Quality Flexible P10 Indoor Full Color 1R1G1B Led Advertising DisplayUS$ 1 - 600MOQ: 5 Square Meters -
2015 Hot Sale Factory Price Flexible P4 Indoor Full Color Led Screen BoardUS$ 1 - 1,400MOQ: 5 Square Meters
-
World Famous Led Display p4 Indoor Full ColorUS$ 1 - 5MOQ: 5 Square Meters
-
on Sale Rgb P4 Indoor LED Panel WallUS$ 1 - 5MOQ: 2 Square Meters
-
Huge Display Screen Manufacturer Indoor High Brightness P3 Video Paly Led Touch DisplayUS$ 2,190 - 2,200MOQ: 5 Square Meters
| 6SMD there-in-one technical paramenters | ||
| Unit Module | Item | Paramenter |
| Module Number | kailt-P3-16S | |
| Module size | 192mm*96mm | |
| Pixel pitch | 3mm | |
| Pixel density | 111111dot/m² | |
| Pixel configuration | 1R1G1B | |
| Package mode | SMD2121 | |
| Pixel resolution | 64dots(W)*32dots(H) | |
| Max Power consumption | 15W | |
| Weight | 0.18kg | |
| Drive type | Constant drive | |
| Scan mode | 1/16scan | |
| Port type | HUB75-B | |
| Brightness of white balance | ≥1300cd/m² | |
| Dimension | 576mm*576mm | |
| Quantity of Module | 18*6pcs | |
| Power supply | 5V/40A | |
| Thermal discharge | fan2pcs | |
| Pixel per cabinet | 192*192 | |
| Best viewing distance | 3M-20M | |
| Best viewing angle | 160°(W)120°(H) | |
| Temperature |
storage:-35℃—+85℃ working:-20℃—+50℃ |
|
| Operation humidity | 10%-95% | |
| Thickness | 85mm | |
| Working voltage | AC220V±10% | |
| Average Power consumption | 310W/S | |
1) , features of LED screen
1 Definition with an outstanding image and video quality for outdoor / indoor usage
2 Wide view angle:120 in horizonal and 120 in vertical.for full color outdoor / indoor led screen
3 Refresh rate (greater than 800Hz- 4000Hz) with software adjustable,guarantee that
No scan line when taking photos Offer chengwen refresh rate (greater than 3000 Hz),with special software.
4 High gray scale (16 bits) with perfect visual performance .
5 Color uniformity and clear image can bring you a vivid audio visual effect.
6 advanced DIP andSMDtechnologies for outdoor / indoor led screen
improves the thermaldischarge, waterproof andsunscreenfor outdoor / indoor led signboard
7 High reliability and long lifespan (ledscreenlifespanlongerthan 10000hours.).
8 Low power consumption(200W - 700Wattage /sqm) thus more energy saving.
9 Cabinet type
Cabinet thickness, dimension can be selected by customer requirements.
10 Cabinet material , can be offered Aluminum, Die-casting aluminum, Iron, optional.
11 For reference other outdoor full color led screen / led module / led cabinet / led panel
3
Function of the controller of ChengWen LED module / led cabinet / led panel
1, Remote control: Carried out through the software by internet or optical fiber.
2,Live broadcast: With video Processor, can play the video from the camera, DVD, player and so on
3, Brightness adjust and temperature and humidity sensor function: With multi-functional card added to adjust the brightness of the led screen according to the environment brightness,
which can be energy saving it can show the temperature and humidity of the environmenton the led screen.
4, Power on and Off timefunction. The time of Power on and Power off can be setting by the software,
then the led screen run according to the software.
5, Dot correction need appointed software;But cabinet correction function is suggested by normal software
6, Smart set feature, so it is easy for you to set the parameters of the software and hardware.
7, Double cable back up function, with A port and B port on the receiving card , both of them can be
signal input and output. Two computer can manage the same one led screen, so when one computer
has problem, another computer will manage the led screen automatically, meanwhile, when one cable
has the problem, another cable can send the signal directly, which keep the led screen work normally
8, Software upgrade function. The software can be upgraded and send all the information to the receiving
card. No need to take out the receiving card and upgrade the software .
Various outdoor led module

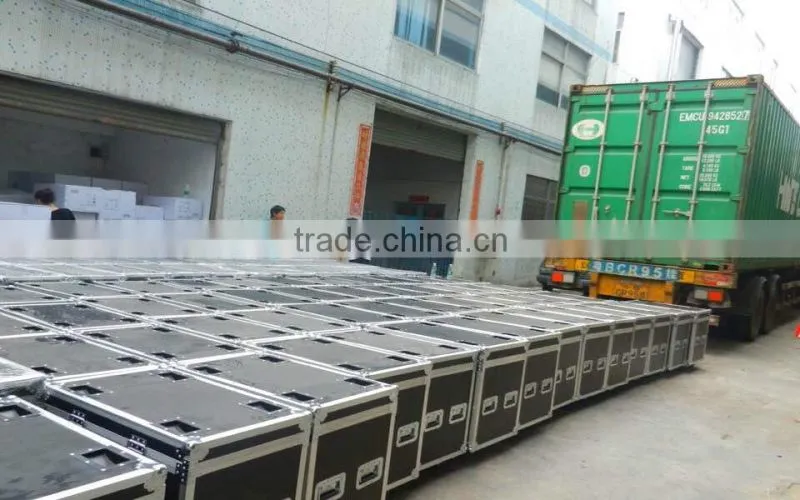

packingdetail
our company Advantages :
1). Price: we have the best competitive High Cost-effective of Price features
2),Own Automatic : From selecting LED chip , led encapsulation, LED module,
are operated by Automatic machine, which can be reduce fault , keep the color of the whole led display
are excellent uniformity , improve showing effect of led screen .
3). Quality: From material to product finished, from design to produce, all steps are controlled
by our workshop, that's the guarantee of the reliability.
4). Service: Warranty is up to 2years, Service time is 24hours x 7 days,
6), Payment :accept : T/T , werstern union.
GuangZhou Chengwen photoelectric Technology Co,.Ltd,is a independent research and development,specializing in the production stage,stage lighting equipment and sales of high-tech enterprises.The company was built in 2012,it has already been widely applied in each domestic domain and has obtained consistent high praise from people of all walks of life both home and abroad by relying on its advanced technology,Company products are exproted mainly sell like hot cake s in :South Korea,Russia,India,Thailand,canbodia,Burma,Vietman,Pakitan,Malaysia and africa,adn many other countries.Hace agent distribution throughout the provinces regional market in china.its remarkable quality ,its stable performance and its first-class service.from the video system ,theathers,to rented performance-it`s brands ChengWen hace already been regarded as the first choice to many important activities,large -scale cultureal parties,dance theaters,telecision stations and other entertainment places,simultaneously,it also continues the OEM sevice for the world -known brand.
We came out each producing procedure according to ISO9010:2000 international quality control system in order to achievezero flaw in product quality All of our products has passed relative quality restriction aging test,and has received CE,BL and the CAS quality authentication.
We hace an ideal dream :The stage will be more splendid with "Cheng Wen"lights!
