Product details
| Indoor full color led display screen technical parameter | |
| Items | P5 full color indoor led display |
| Pitch size | 5mm |
| Module size | 160mm*320mm |
| Module pixel(dots) | 32dots*64dots |
| Pixel configuration | 1Red, 1Green, 1Blue |
| LED chip | Silan |
| Color scale | 65536degree/16777216colors |
| Pixel density | 40000pixels/square meter |
| View angle(H/V) | ≥ 120/120degree |
| Brightness | ≥ 800cd/square meter |
| Brightness adjustment | 64 level automatic or manual |
| View distance | 3--100m |
| Power consumption | 100-1600W/square meter |
| Net weight | less than 45kg/square meter |
| Operating temperature | _ 25° C~+60° C |
| Operating humidity | 10%_ 95%RH |
| Life time | ≥ 100, 000hours |
| Out of control dot | ≤ 1/10, 000 |
| Whole Display Flatness | ≤ 1mm Juncture |
| Exchange frame speed | > 150frames per second |
| Refresh frame frequency | 600Hz |
| Control distance | 120m (without repeater), single mode fiber: 20km, multi mode fiber: 500m |
| Power | 110V/220V± 15% 50Hz |
| Operating system | Windows98/Me/2000/Xp |
| Drive mode | constant current driving, 1/8 scan |
| Display mode | VGA640X480_ VGA1600X1024 |
| Protections for outdoor display | IP65 |
| Maintenance way | Rear access |
| Accepting signal | PAL/NTSC/SECAM, S-Video; VGA; RGB; Composite Video; SDI |

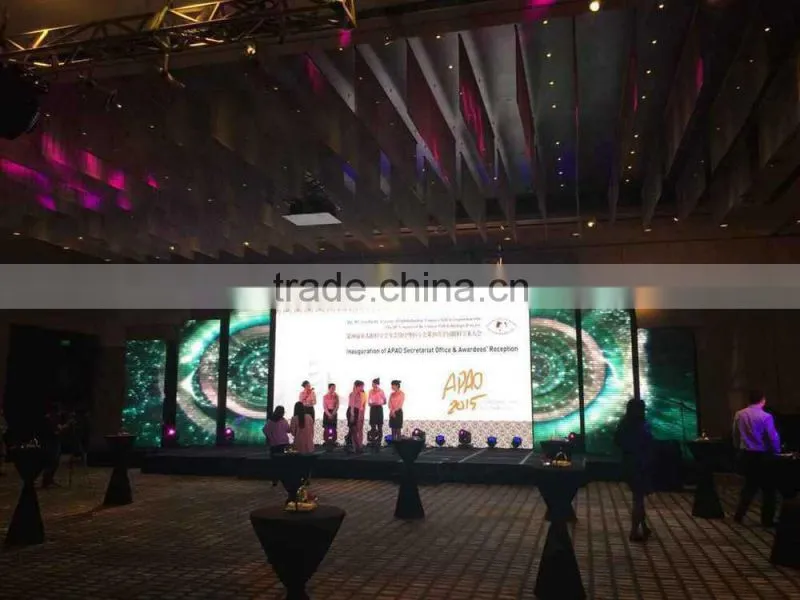

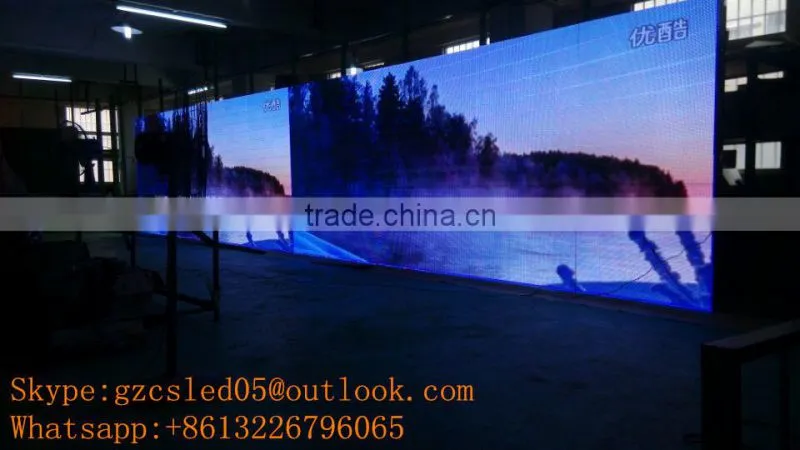

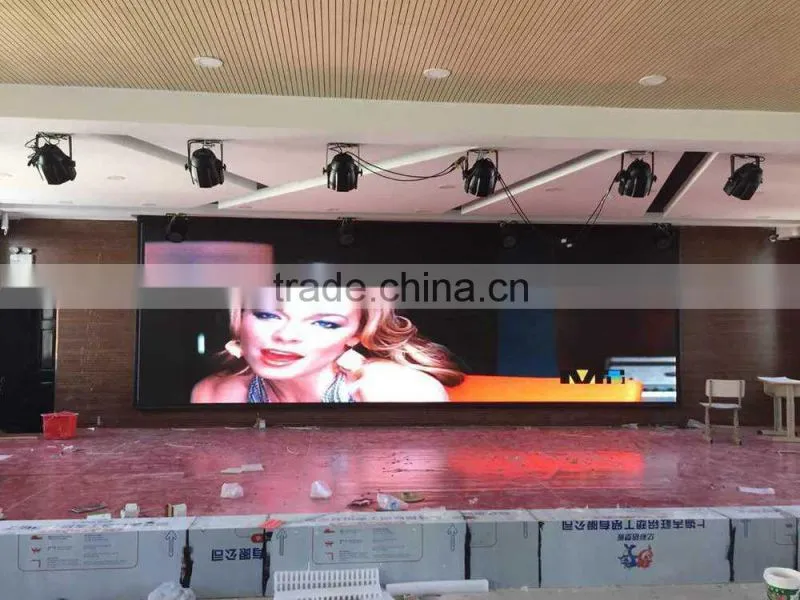

Product show

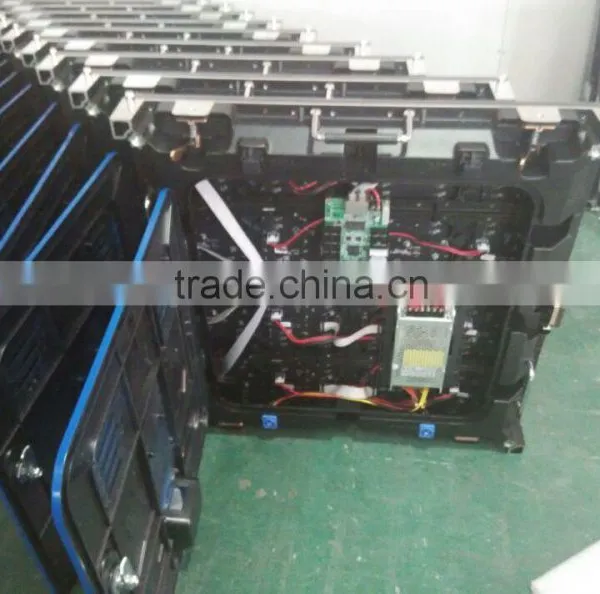

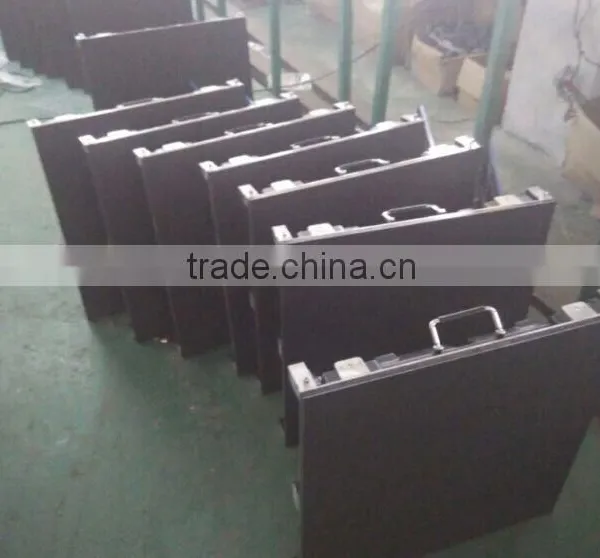

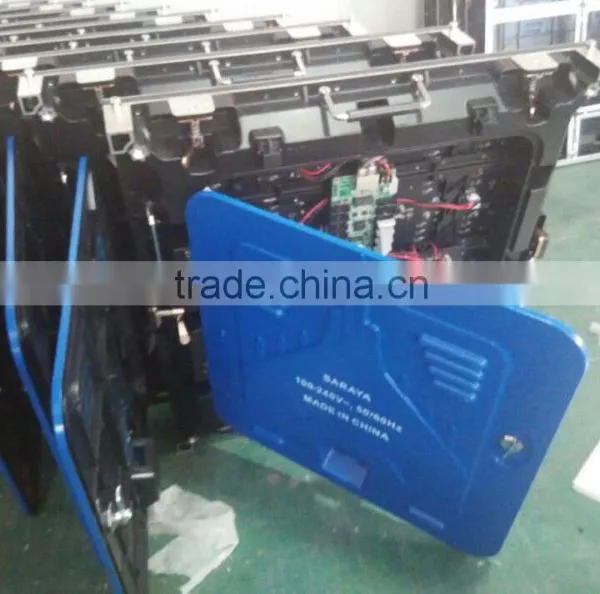

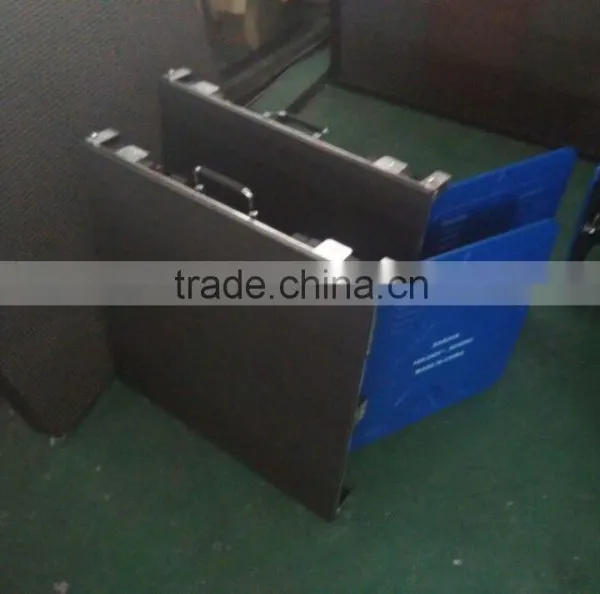

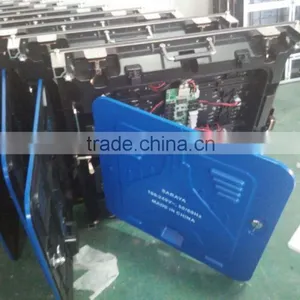

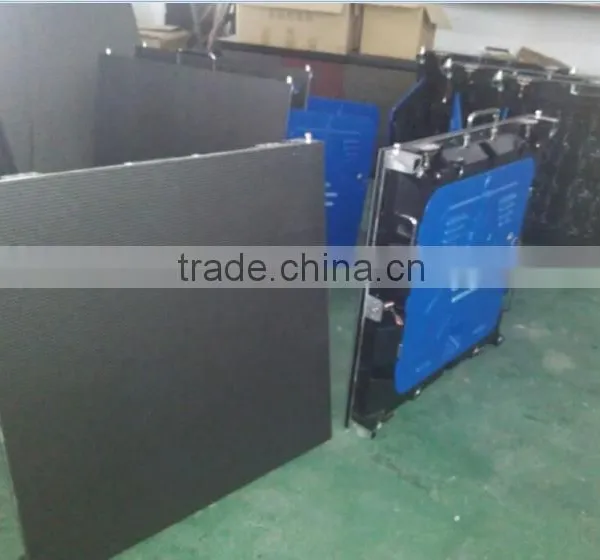

Process of producing

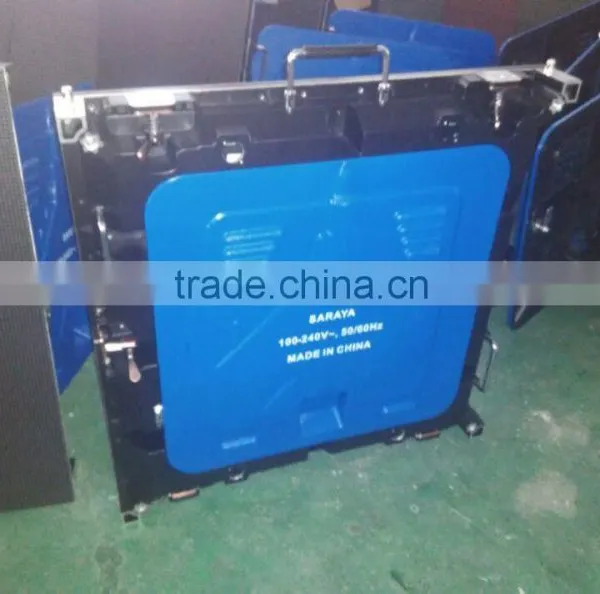

Display box
External packing
Our service
1.Your inquiry related to our products or price will be replied in 24hrs
2.OEM&ODM,any your customized lightings we can help you to design and put into product.
3.Distributoership are offered for your unique design and some our current models
4.Protection of your sales area,ideas of design and all your private information
5.Top Quality+Reasonable Price+Responsible After Service=Successful & Win
6. Export countries : Peru, Mexico, Colombia, Turkey, US, UK, etc.
FAQ:
Usage Considerations of LED Display
1.Switching sequence
1) screen switching sequence: on: first turn on the computer, then screen off: first shut off screen, then computer.
2) Interval of switching LED display must be greater than 1 minute.
2. Ambient temperature
When ambient temperature is too high or cooling condition is bad, users had better not to turn on the screen for a long time.
Screen shall be installed in temperature from-10 °C to 40 °C.Over environment temperature range, temperature control equipment must be installed.It is forbidden to install LED display near any heat source.
3.Ambient humidity
When installing screen, ambient relative humidity should be in the range from 30% to 70%.It is prone to get static electricity when the indoor humidity is below 30%; when the indoor humidity is higher than 70%, electronic components are easy to get damp.
4.Corrosive gas environment
Please do not install the display in corrosive gas environment containing acid or base components, such as chemical warehouse.
5. Electromagnetic radiation environment
Please do not install display when electromagnetic radiation and radio frequency radiation environment is over field strength 5V/m.
If necessary, isolation treatment should be taken.
6.Steady power supply
If necessary, users have to install surge switches in the distribution box and ground fault protection to avoid lightning strikes.
Do not use the display in strong lightning and other severe weather.
7. Conductive material is strictly prohibited to contact display, such as metal dust and water.
Screens are placed in the environment of low dust as far as possible, otherwise it will affect the display effects, as well as damage the circuit.If exposed to water for various reasons, please immediately power down until the screen unit dry.
8.Controlling colors
Do not display a long time in a white, red, green, blue or other bright screen, because this will affect the display lifetime.
9.Controlling time
LED display at least rest 2 hours a day. Normally turn on the screen at least twice a week or more (Especially in the rainy season it is necessary to turn on the display every day).And it maintains more than 2 hours every time.
10.Regular overhaul
LED display requires regular inspection to check circuit damage. If it does not work, change it in time. If circuit damages, it should be repaired or replaced.
11.Security alerts
Users must ensure safety while installing Led display. The factory only offers products and reference programs of frame fixation.
Users can ask relevant authorities to confirm according to local conditions and field conditions.
Thanks for your time,warmly welcome to your inquiry!
Whatsapp:+8613226796065
Wechat:shine-422873487
Have a wonderful day!
