Help CenterStage Rental p4 Rgb Led Video Wall Indoor
Related Products
-
Guangzhou Hot Sale p6 Indoor Led Panesl Wall PriceUS$ 1 - 5MOQ: 2 Square Meters -
Customized Sized Led Billboard p4 Indoor Led Display p4US$ 885 - 885MOQ: 1 Square Meter
-
Full Color P4 Indoor LED Display ScreenUS$ 1 - 5MOQ: 5 Square Meters
-
Supply Led p6 Indoor Full Color Display ScreenUS$ 1 - 900MOQ: 5 Square Meters
-
2015 the Newest Indoor Full Color p3 LED ScreenUS$ 2,190 - 2,200MOQ: 5 Square Meters
Product specification:
1. Pixel Pitch |
4 mm |
| 2. LED Configuration | 1R1G1B-3 in1 |
| 4. Module Resolution | 64X32 |
| 5. Module Size | 256X128mm |
| 7. Cabinet Size | 512X512mm |
| 8. Optimum Viewing Distance | 4m |
| 9. Pixel density | 62500 dots/m2 |
| 10. Brightness | >1600nit |
| 11. Viewing Angle (H/V) | 140 degrees/140 degrees |
| 12. Frame Rate | 60Hz/s fps |
| 13. Refresh Rate | 300Hz |
| 15. Grey Scale/Color | Display colors≥16.7m |
| 16. Pixel Type | Real |
| 17. Lifetime | 100,000 hours |
| 18. Power Consumption | ≤800 watts/m2 |
| 19. Operating Temperature | -20°C—60°C |
| 20. Working Voltage | 110-220VAC±10% |
| 21. Weight | 20 Kg/Cabinet |
| 22. MTBF | ≥5000 hours |
| 23. Malfunction dot rate | ≤ 0.0001 |
| 24. Whole display flatness | less than 1mm juncture |
| 25. Input Signal | RF,S-Video,RGB,RGBHV,YUV,YC&Composition,etc. |
Product show;
Our company:

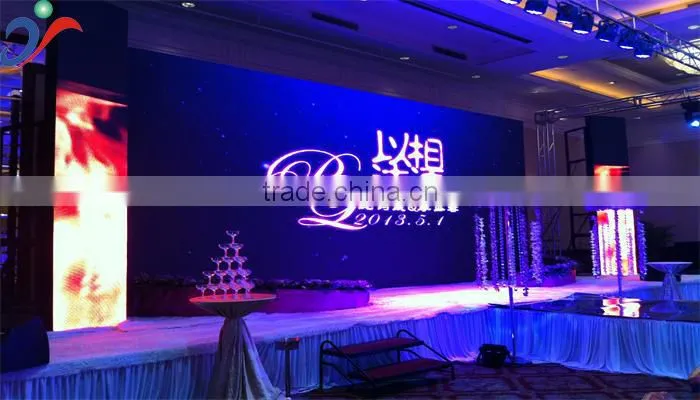

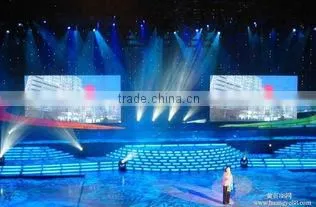

Display show:
Package:
Our service:
1.Your inquiry related to our products or price will be replied in 24hrs
2.OEM&ODM,any your customized lightings we can help you to design and put into product
3.Distributoership are offered for your unique design and some our current models
4.Protection of your sales area,ideas of design and all your private information
5.Top Quality+Reasonable Price+Responsible After Service=Successful & Win
6. Export countries : Peru, Mexico, Colombia, Turkey, US, UK, etc
7.Two payment terms:T/T or Western Union
FAQ:
Usage Considerations of LED Display
1.Switching sequence
1) screen switching sequence: on: first turn on the computer, then screen off: first shut off screen, then computer.
2) Interval of switching LED display must be greater than 1 minute.
2. Ambient temperature
When ambient temperature is too high or cooling condition is bad, users had better not to turn on the screen for a long time.
Screen shall be installed in temperature from-10 °C to 40 °C.Over environment temperature range, temperature control equipment must be installed.It is forbidden to install LED display near any heat source.
3.Ambient humidity
When installing screen, ambient relative humidity should be in the range from 30% to 70%.It is prone to get static electricity when the indoor humidity is below 30%; when the indoor humidity is higher than 70%, electronic components are easy to get damp.
4.Corrosive gas environment
Please do not install the display in corrosive gas environment containing acid or base components, such as chemical warehouse.
5. Electromagnetic radiation environment
Please do not install display when electromagnetic radiation and radio frequency radiation environment is over field strength 5V/m.
If necessary, isolation treatment should be taken.
6.Steady power supply
If necessary, users have to install surge switches in the distribution box and ground fault protection to avoid lightning strikes.
Do not use the display in strong lightning and other severe weather.
7. Conductive material is strictly prohibited to contact display, such as metal dust and water.
Screens are placed in the environment of low dust as far as possible, otherwise it will affect the display effects, as well as damage the circuit.If exposed to water for various reasons, please immediately power down until the screen unit dry.
8.Controlling colors
Do not display a long time in a white, red, green, blue or other bright screen, because this will affect the display lifetime.
9.Controlling time
LED display at least rest 2 hours a day. Normally turn on the screen at least twice a week or more (Especially in the rainy season it is necessary to turn on the display every day).And it maintains more than 2 hours every time.
10.Regular overhaul
LED display requires regular inspection to check circuit damage. If it does not work, change it in time. If circuit damages, it should be repaired or replaced.
11.Security alerts
Users must ensure safety while installing Led display. The factory only offers products and reference programs of frame fixation.
Users can ask relevant authorities to confirm according to local conditions and field conditions.
If you are interested in our products,please contact us:
If you are interested in our products,please contact us:
Whatsapp:+86-13226796065
Wechat:shine-422873487
Thanks for your time! Nice day!
