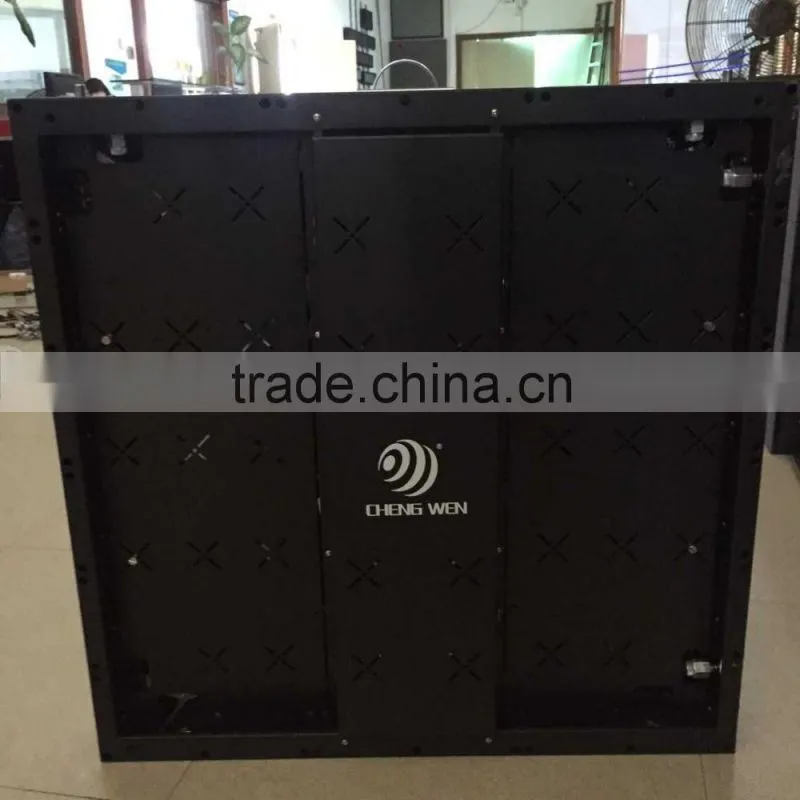

Help CenterGuangzhou Hot Sale p6 Indoor Led Panesl Wall Price
Related Products
-
Customized Sized Led Billboard p4 Indoor Led Display p4US$ 885 - 885MOQ: 1 Square Meter -
Full Color P4 Indoor LED Display ScreenUS$ 1 - 5MOQ: 5 Square Meters
-
Supply Led p6 Indoor Full Color Display ScreenUS$ 1 - 900MOQ: 5 Square Meters
-
2015 the Newest Indoor Full Color p3 LED ScreenUS$ 2,190 - 2,200MOQ: 5 Square Meters
-
2015 China High Quality Favorable Price P3 Indoor Full Colr Led SignUS$ 1 - 2,333MOQ: 5 Square Meters
Parameters |
Units |
Value |
Pixel pitch |
mm |
6 |
Led type |
|
3 in 1 |
Physical density |
Pixels/sqm |
40,000 |
Drive mode |
Duty |
1/8 |
Module size |
mm |
192*192 |
Color configuration |
|
1R1G1B |
Module resolution |
dots |
32*32 |
Best viewing distance |
m |
6-42 |
Gray scale |
levels |
16.7M |
Brightness |
Nits |
1800 |
Viewing angle |
° |
H: 140/ V:140 |
Cabinet material |
|
Epoxy painted steel |
Frame rate |
Hertz |
60 |
Refresh rate |
Hertz |
30~1000 |
Input power (max) |
Watts |
1100 |
Input power (typical) |
Watts |
400 |
Working temperature |
°C |
-20 - +65 |
Storage temperature |
°C |
-40 - +85 |
Lifetime |
Hours |
100,000 |
Red wavelength |
nm |
625 |
Green wavelength |
nm |
525 |
Blue wavelength |
nm |
470 |
Working voltage |
Watts |
110/220V |
MTBF |
Hours |
10000 |
Life-span |
Hours |
100000 |
Computer system |
WIN98, WINXP, WIN2000, WIN7,etc |
|
Input signals |
RF, S-Video, RGB, RGBHV, YUV, YC, COMPOSITION, etc |
|
2. Excellent after-sale service.
Detailed Product Description

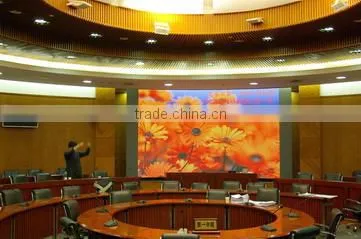

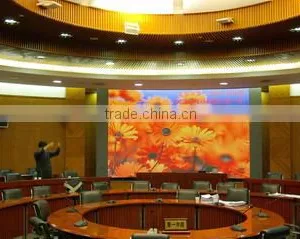

Indoor full color LED display application:
Major sports stadiums, train waiting room, TV shows broadcast live, exhibition venues, large-scale variety show scene, the concert scene and so on.
Indoor full color display's function
(1)Video broadcast function:
A, play video cameras, clear, flicker-free display video images into reality, to achieve a variety of live shows.
B, play VCR, DVD player(VCD, DVD, LD) and other video programs to meet the basic needs of recreational and sports activities.
C, can play AVI, MOV, MPG, DAT, VOB and many other formats.
D, brightness, contrast, saturation, color can be adjusted through software, the range of adjustment is 256.
E, own the overlap(VGA+VIDE), video, VGA three display mode.
F, Video image compression function.
G, synchronization with the display.
H, Using Line-double features can convert interlaced pictures into non-interlaced images, the motion compensation.
I, there is a way to use the audio signal amplifier, leaving at least 2 way camera video input interface.
(2), information dissemination function:
A, can display a variety of computer information, graphics, pictures and the two, three-dimensional animation, with a wealth of players.
B, display scrolling information, notification, slogans, etc, the capacity of data storage is large.
C, can type in English, French, German, Greek, Russian and Japanese, etc.
D, can play text messages, playing form: The rolling point, the rolling line, mode of introduction and leads.
E, can be moved up, left, the news broadcast can be recycled, font, size is optional.
F, can set the play speed, a number of messages can be broadcast simultaneously, or with animation, images broadcast at the same time.
G, can be the data, time display, or string expression.
(3)Network function:
With a network interface connect with the computer, while broadcast network information, achieve network control; According to customer requirements, we can do at various locations focused on multi-block-screen control through the network, can be " VPM+ broadcast" for remote control.
3.Distributoership are offered for your unique design and some our current model.
4.Protection of your sales area,ideas of design and all your private information
5.Top Quality+Reasonable Price+Responsible After Service=Successful & Win
6. Export countries : Peru, Mexico, Colombia, Turkey, US, UK, etc.
7.Two payment terms:T/T or Western Union
FAQ
Usage Considerations of LED Display
1.Switching sequence
1) screen switching sequence: on: first turn on the computer, then screen off: first shut
off screen, then computer.2) Interval of switching LED display must be greater than 1 minute.
2. Ambient temperature
When ambient temperature is too high or cooling condition is bad, users had better not to turn on the screen for a long time.
Screen shall be installed in temperature from-10 °C to 40 °C.Over environment temperature range, temperature control equipment must be installed.It is forbidden to install LED display near any heat source.
3.Ambient humidity
When installing screen, ambient relative humidity should be in the range from 30% to 70%.It is prone to get static electricity when the indoor humidity is below 30%; when the indoor humidity is higher than 70%, electronic components are easy to get damp.
4.Corrosive gas environment
Please do not install the display in corrosive gas environment containing acid or base components, such as chemical warehouse.
5. Electromagnetic radiation environment
Please do not install display when electromagnetic radiation and radio frequencyradiation environment is over field strength 5V/m.If necessary, isolation treatment should be taken.
.
6.Steady power supply
If necessary, users have to install surge switches in the distribution box and ground fault protection to avoid lightning strikes.Do not use the display in strong lightning and other severe weather.
7. Conductive material is strictly prohibited to contact display, such as metal dustandwater.
Screens are placed in the environment of low dust as far as possible, otherwise it will afect the display effects, as well as damage the circuit.If exposed to water for various reasons, please immediately power down until the screen unit dry.
8.Controlling colors
Do not display a long time in a white, red, green, blue or other bright screen, because this will affect the display lifetime.
9.Controlling time
LED display at least rest 2 hours a day. Normally turn on the screen at least twice a week or more (Especially in the rainy season it is necessary to turn on the display every day).And it maintains more than 2 hours every time.
10.Regular overhaul
LED display requires regular inspection to check circuit damage. If it does not work, change it in time. If circuit damages, it should be repaired or replaced.
11.Security alerts
Users must ensure safety while installing Led display. The factory only offers products and reference programs of frame fixation.
Users can ask relevant authorities to confirm according to local conditions and field conditions.
If you are interested in our products, welcome to your inquiry ,please contact us:
Wechat:shine-422873487
Whatapp:+8613226796065
Good day!
