Free Sample Single Output Typle and India Bis Led Driver Isolated
- Shenzhen
- T/T Money Gram Credit Card
You May Like
-
18W 500ma Constant Current Led Driver for Led Lighting With UL FCC
-
China Supplier 8W 240ma 300ma 350ma Done Led Driver Single Output
-
12v 24v dc Input Led Driver China Manufacturer Active PFC With 5years Warranty
-
5w 30v 32v Led Driver PF0.9 for Commercial Light Free Sample ul Listed
-
(8-12)x1w 10w Led Driver Ac/dc Power Supply IP20 PF0.9 From Shenzhen
-
Single Output 18W 500ma Constant Current Top Brand LED Driver With UL
Product Details
| Place of Origin | Guangdong, China | Brand Name | NBAOJSY | |
| Model Number | NBF42 | Output Power | Other, 36-42W | |
| Output Type | Single | Input Voltage | Other, 85-305V | |
| Output Voltage | DC26~40V | Output Frequency | 50/60Hz | |
| Output Current | 550-1050ma |
Product Description

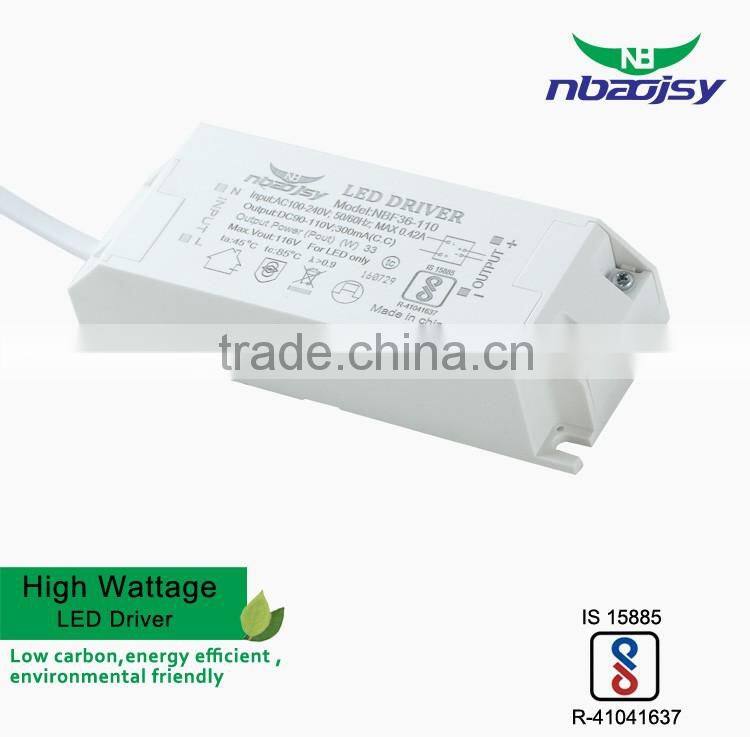

free sample single output typle and india bis led driver isolated
A. Active PFC, IP 20 for indoor using, AC 85-305V 50/60Hz.

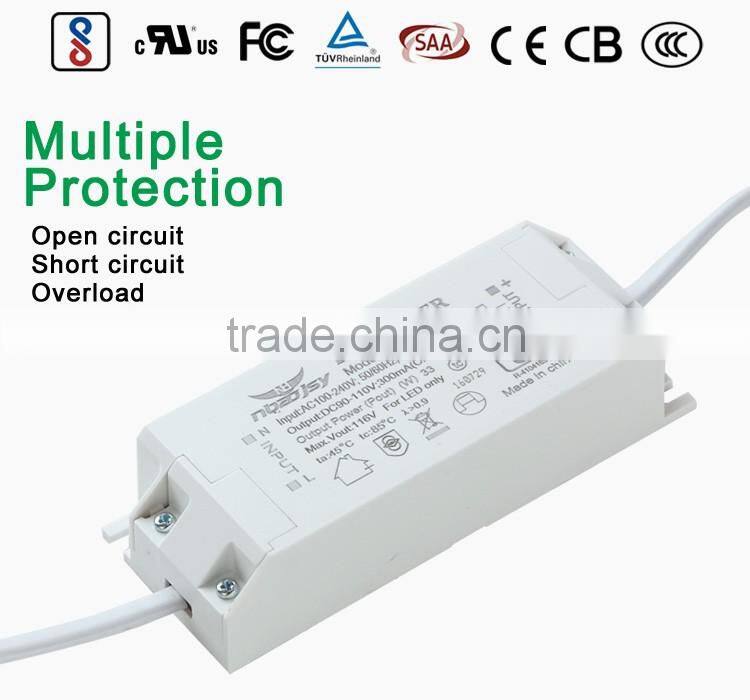

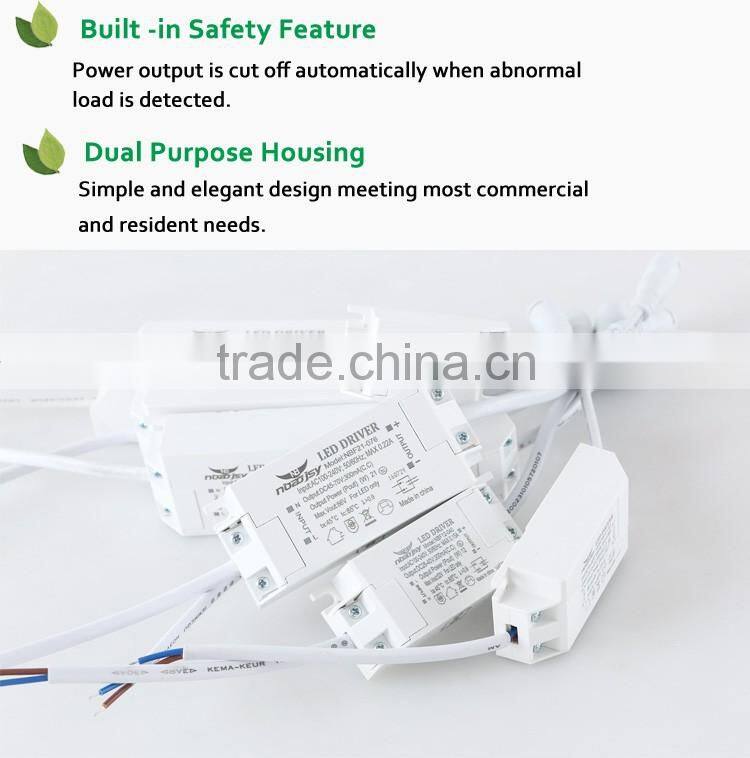

B. Protection: open circuit, short circuit, overload protection and over voltage.
C. High PF> 0.9, efficiency> 88%, and with 3 years warranty.
D. Surge Protection: 2.5KV, THD<15%.
E. High quality with BIS standard etc..

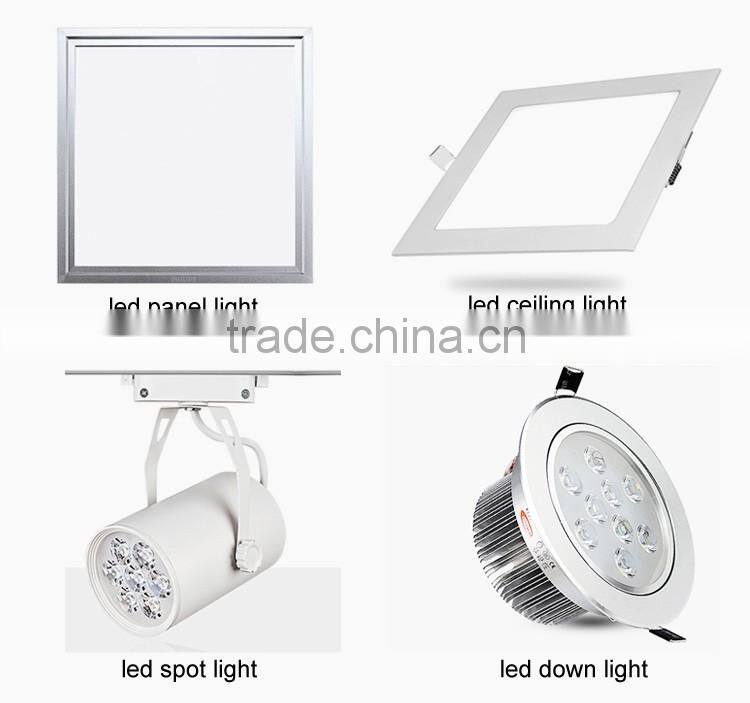

F.Application :ceiling /flat lighting /panel lighting.

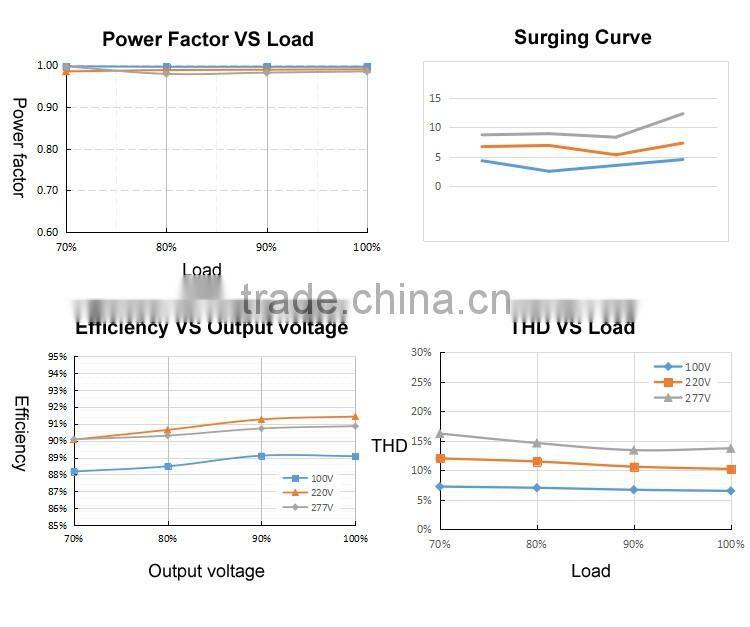

Detail:
| Catalog | Item | Technical Norm |
Max Output Wattage | 42W | |
Input | Rated input voltage | 100-277VAC |
Range of input voltage | 85-305VAC | |
Frequency(Hz) | 47-63Hz | |
Power Factor | PF≥0.9 @Full Load,230VAC | |
Input Current | 0.56A MAX@Full Load,100VAC | |
Start-up time | <0.5S @Full Load,230VAC | |
Unload Power Consumption | ≤0.5W | |
Inrush Current | 25A MAX. @Full Load,240VAC | |
Output | Unload voltage | 48VDC MAX. |
Voltage | 26-40V @100-277VAC | |
Current(Convection) | 1050mA @100-277VAC | |
Current Accuracy | ±5% @100-277VAC | |
Voltage Regulation | ≤5% @Full Load | |
Hold-up Tine | 0.1s max @Full Load,240VAC | |
Efficiency in full load | ≥88%@Full Load,230VAC |
Environment | Operating Temperature | -20℃…+45℃ |
Storage Temperature | -30℃…+85℃ | |
TC | 85℃ | |
Humidity | 10%-95%RH | |
Life time | >160000h @25℃ |
Protection | Over Load Protection | 110-120% |
Auto Resume | ||
Over Voltage Protection | Auto Resume | |
Short circuit Protection | Auto Resume | |
Over Temperature protection | Auto Resume | |
Standards | Approval | BIS |
specification | IS15885(PART2/SEC13):2012/ IEC61347-2-13:ED1 |
Model Series:

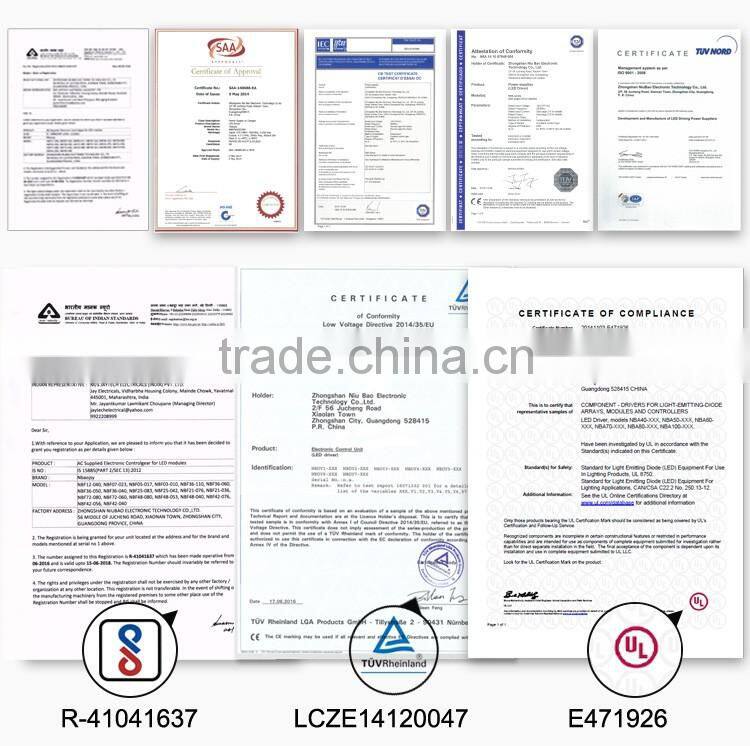

Our products meet or exceed various international industry standards and have been certified by: TUV/CE/SAA/UL/FCC/BIS/CB/RoHs.
Our products can be widely applied to various luminaires, such as ceiling lighting, flat lighting, panel lighting etc..
Zhongshan Niu Bao Electronic Technology CO., LTD

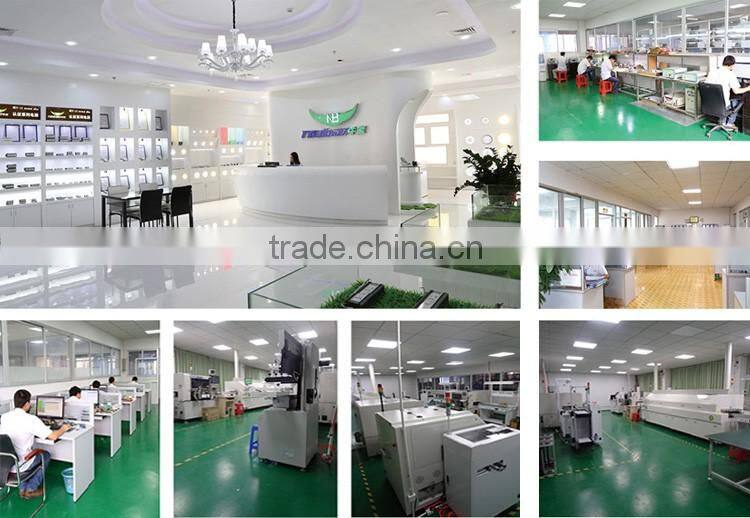

Company Profile:
1. Established: In 2008
2. Floor Area: 8000 square meters
3. Highlights:
A: In-house R&D team led by more than 20 seasoned engineers
B: Quality Management: Certified by the German TUV ISO 9001:2008
4. Product Range: commercial lighting power supply, waterproof outdoor power supply, street lighting power supply, solar power supply, switching power supply and automotive HID ballast
Details of Packaging & Transportation
1. Carefully packed in high quality vacuum bubble bag
2. Packages are then filled with foam paper to provide extra protection
3. Efficient delivery after order confirmation
Please send your inquiry below for free samples now!
1. Q: Can you arrange shipping for me?
A: Yes, we have shipping partners globally that will ensure efficient and reliable shipping to meet all your purchasing needs.
2. Q: What's your main product line?
A: We are the regional leader in LED power supply development and production. We specialize in commercial lighting power supply, waterproof outdoor power supply, street lighting power supply, solar power supply, switching power supply and automotive HID ballast.
3.Q: If you have the ability to do independent research and development?
A: Our company is equipped with professional senior engineering technicians. We have our own professional R&D team. We also have advanced SMD machine and photoelectric testing instrument.
4. Q: Can leading time be more shorter because I am urgent?
A: Yes. And you can contact us urgent to check the details.
