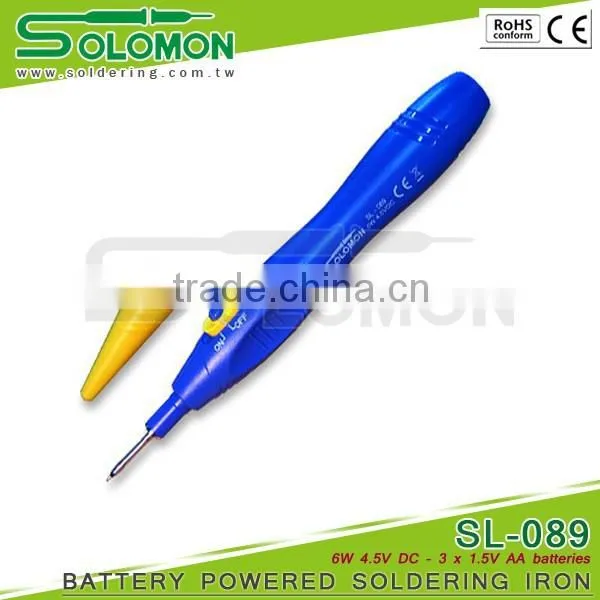

SL-089 SOLDERING IRON

Name: SL-089 SOLDERING IRON
Brand: SOLOMON
SKU: 124226811

US$ 8.35 - 9.35 MOQ: 200 Pieces

Key Specifications

Place of Origin:

Taiwan, China

Brand Name:

SOLOMON

Model Number:

SL-089

Sorny Roong Industrial Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Taichung Harbor

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Taiwan, China

Brand Name SOLOMON

Model Number SL-089

Condition New

After-sales Service Provided No overseas service provided

Battery Operated Soldering Iron

SL-089

Safety Notes

Place the protective cover over the tip when storing such that the cover secures the slide switch in the "OFF" position.
Tip is hot, Do not touch, Do not immerse in water
After using the soldering iron, cool the iron naturally before storing away.
Always switch off the soldering iron after use by sliding the switch to the "OFF" position

Operating instructions

Slide the battery cover open at the end of the soldering iron.
Place 3x1.5V size AA alkaline batteries into the iron as illustrated and replace cover.
Remove the protective cover at the tip
Make sure tip is securely installed
Slide the On/Off switch to the "ON" position
Hold the soldering iron like a pen
Press the round button on top of the On/Of switch continuously for approx. 15 seconds
The tip should reach working temperature
To save power, only press button when actually soldering
The hot soldering iron should be placed standing upright with the tip pointing up when not in use to avoid contacting the surrounding
After soldering , slide the switch to the "OFF" position, replace the protective cover

Maintenance

If it takes more than 30 seconds to reach working temperature, replace the batteries
Use alkaline batteries for best results. Do not mix old and new batteries.
This soldering iron can operate continuously for approx. 60 minutes.
Do not change the soldering tip when hot, Use the tip exchanger provided to remove the tip as shown
the soldering tip is iron-plated long life tip an therefore do not file the tip.
If the soldering iron is not to be used for a long period of time, remove the batteries from the soldering iron.
