Help CenterODM Resistance Shunt Resistors ( SBN Model Type)
Related Products
-
0.001 Ohms Resistance ( ASR Model Type Chip Shunt Resistors )NegotiableMOQ: 1 -
10W 100A 1mR 1% Shunt Resistors (PSR Series)NegotiableMOQ: 1000 Pieces
-
Machinery Manufacturing Shunt ResistorsNegotiableMOQ: 1
-
0.0001 Ohms Shunt Resistors (Shenzhen Factory Manufactuter and Type SBH)NegotiableMOQ: 1
-
Shenzhen Shunt Resistors (Type SBH)NegotiableMOQ: 1
Specifications

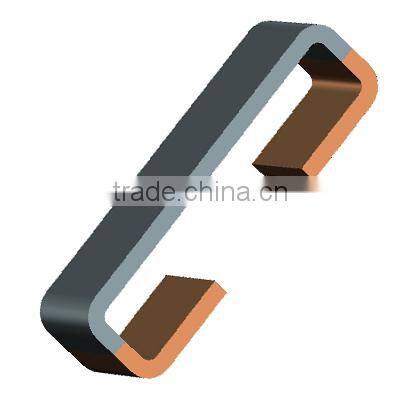

ODM Resistance Shunt Resistors ( SBN Model Type):Good overload resistor
High heat dissipation
Fixed resistors

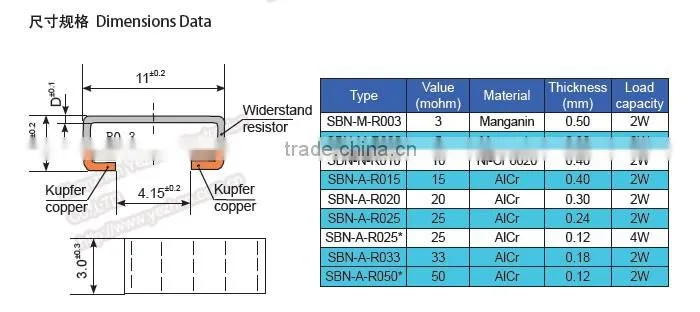

ODM Resistance Shunt Resistors:

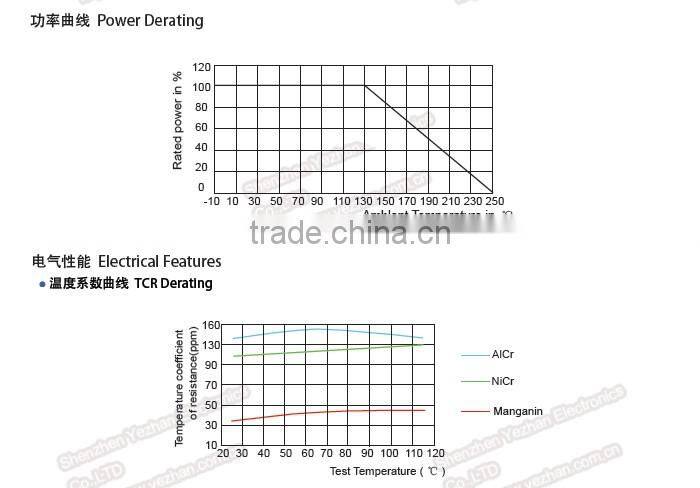

Electrical Data
| cnHR | |
| Power rating at 85ºC(max) Watts | 7 |
| Resistance range ohms | 0.0005Ω to 0.002Ω |
Features
a.2 Watt permanent power at 130 °C
b.32 Amps (2 mOhm)
c.Constant current up to 32 Amps (2 mOhm)
d.Copper connectors
e.Excellent long term stability
f.Ideal suited for mounting on DBC / IMS substrate
g.Mounting: reflow soldering
h.AEC-Q 200 compliant
i.Lead-free
j.Special tight toleranceare available on request
Application
1.Current sensor for power hybrid applications
2.Frequency converters
3.Power modules
4.High current applications for the automotive market

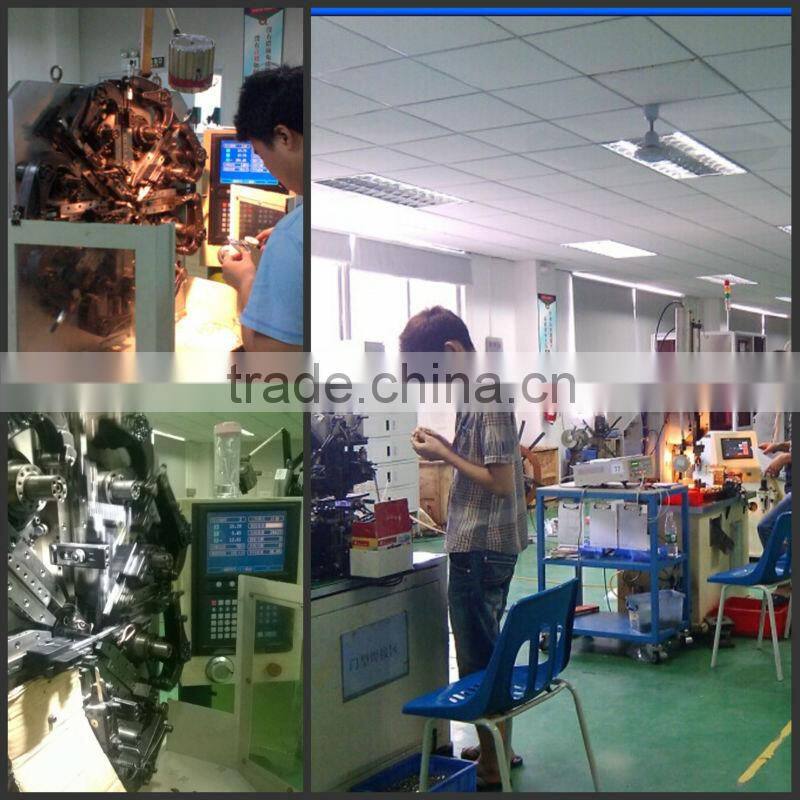

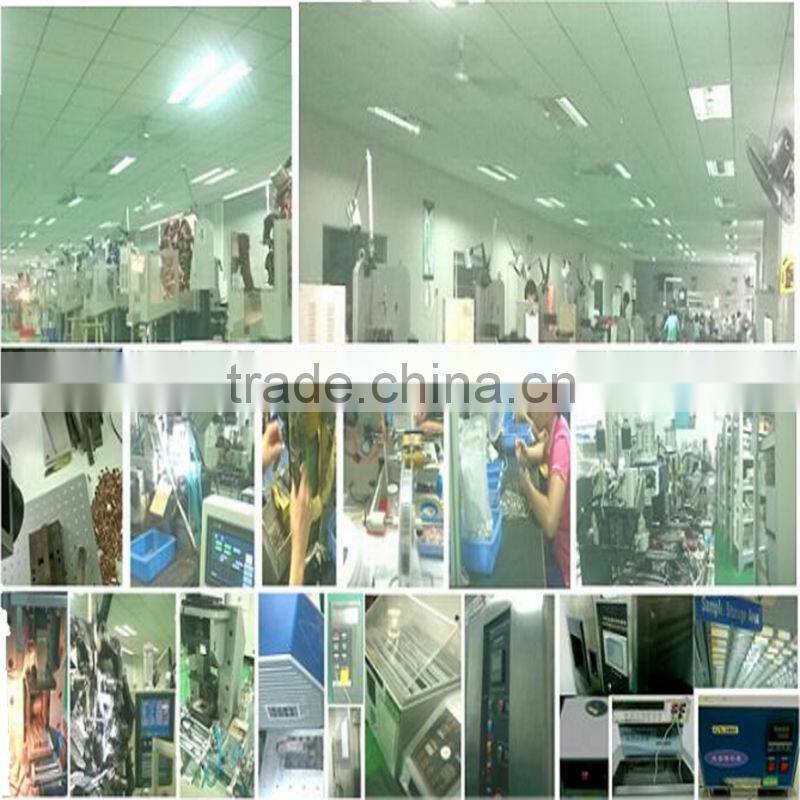

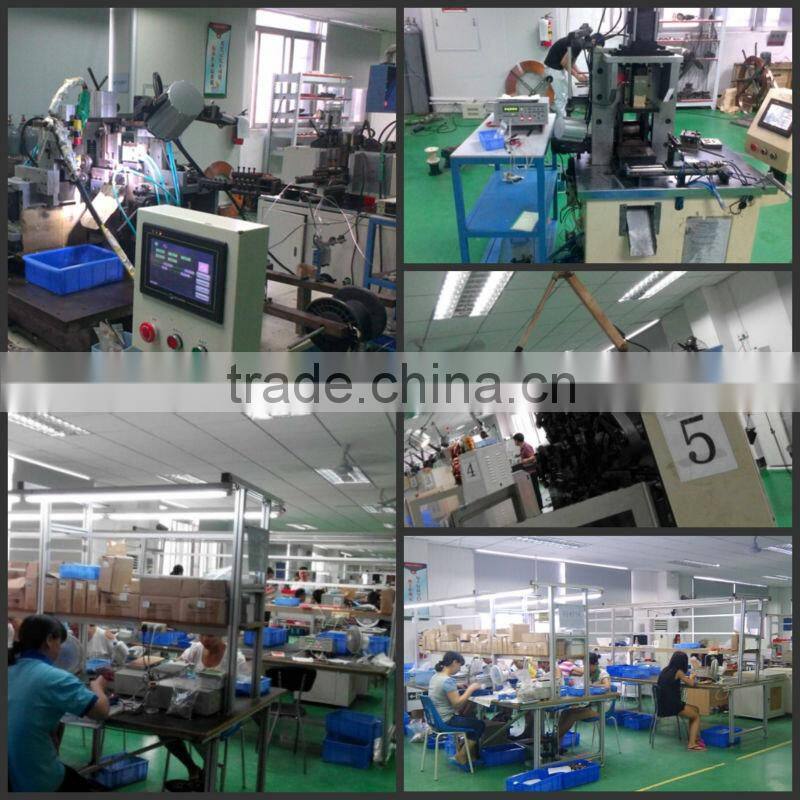

Company Information
As a professional electronic manufacturer in Shenzhen,
Our company established in 2005.We has already been a famous manufacturer&exporter over 9 years.
We specialize in resistors(current sensing/alloy shunt/weld precision/thermal/fixed……),
We provide you one-stop service of electronic components.
As the advantage,our competitive price will help to save your purchase cost and your precious time.
Any interest of our productcs,please give me a calling or send an E-mail,thanks.
