0.0001 Ohms Shunt Resistors (Shenzhen Factory Manufactuter and Type SBH)

Name: 0.0001 Ohms Shunt Resistors (Shenzhen Factory Manufactuter and Type SBH)
Brand: Yezhan
SKU: 124193075
Availability: InStock

Shenzhen Yezhan Electronics Co., Ltd.

5Yrs

Negotiable MOQ: 1 set (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

Yezhan

Model Number:

SBH

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name Yezhan

Model Number SBH

Type Fixed Resistor

Technology Other, welding

Package Type Throught Hole

Resistance 0.0001-0.001 ohms

Resistance Tolerance ±1% or ±5%

Rated Power 3 Watts

Temperature Coefficient ±20 ppm/℃ or ±80 ppm/℃

Operating Temperature -55℃-170℃

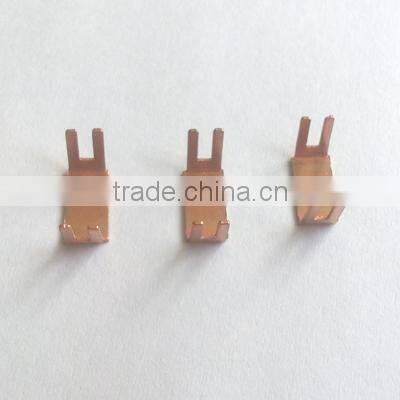

0.0001 ohms Shunt Resistors (Shenzhen factory anufactuter and Type SBH)

Electrical data

Dimensions Data

Performance Data

TEST	CONDITIONS OF TEST	TEST LIMITS
Thermal Shock	-55℃ to 150℃ , 1000 cycles, 15 min at each extreme	±(1.0%+0.0005Ω)ΔR
Shot time overload	5×rated power for 5 s	±(0.5%+0.0005Ω)ΔR
Low temperature storage	-65℃ for 45 min	±(0.5%+0.0005Ω)ΔR
High temperature exposur	1000 h at +170℃	±(1.0%+0.0005Ω)ΔR
Bias humidity	+85℃ , 85% RH, 10% bias, 1000 h	±(0.5%+0.0005Ω)ΔR
Mechanical shock	100 g’s for 6 ms, 5 pulses	±(0.5%+0.0005Ω)ΔR
Vibration	Frequency varied 10 Hz to 200 Hz in 1 min, 3 directions, 12 h	±(0.5%+0.0005Ω)ΔR
Load life	1000 h at + 70 °C, 1.5 h “ON”, 0.5 h “OFF”	±(1.0%+0.0005Ω)ΔR
Resistance to solder heat	+ 260 °C solder, 10 s to 12 s dwell, 25 mm/s emergence	±(0.5%+0.0005Ω)ΔR
Moisture resistance	MIL-STD-202,method 106,0% power, 7a and 7b not required	±(0.5%+0.0005Ω)ΔR

Features&Applications

Features	Applications
3 Watts	Current Sensing
Tolerance ±1% or ±5%	Low inductance
TCR ±20 ppm/°C or ±80 ppm/°C	High current applications for the automotive marker
Resistance values down to 0R0003 ohms	Frenquency converters
Low inductance	Power moduies
High application temperature range-55 to +155°C
Lead-free
Special tight toleranceare available on request
