Specifications
Power Resistors:Space saving.
Favorable heat dissipation.
Prolonging the service life.
Power Resistors (Munich Electronics Fair Shown):
Electrical Data
PPSR-8 |
PSR-10 | PSR-13 | |
Power rating at 85℃ Watts |
8 | 10 | 13 |
Resistance range ohms |
0.0005 to 0.01 |
0.0005 to 0.01 |
0.0005 to 0.005 |
Dimensions Data
Dimensions(mm) | |||||
| Type | W | H | A | T | L(MAX) |
PSR-8 |
25.4 |
6.5±0.8mm |
6±0.5mm |
6.35±0.3mm |
35mm |
25.4 |
6.5±0.8mm |
6±0.5mm |
6.35±0.3mm |
35mm |
|
25.4 |
6.5±0.8mm |
6±0.5mm |
6.35±0.3mm |
35mm |
|
Performance Data
Maximum change R% |
|
Load life:1000 hrs at 25℃ |
1% |
Moisture No Load 100 hrs |
1% |
Temperature Cycle at -40℃ ~+150℃ (1000cys) |
1% |
Features&Applications
| Features | Applications |
| 8-13 watts | Industrial machine |
| Tolerance±5% or ±1% | Consumerproducts |
| TCR ±40 PPM/°C | Consumerproducts |
| Resistance values down to 0R0005 ohms | Automobile technology |
| Welded Construction | Communications technology |
| Lead-free | Current Sensing |
| Flameproof | Feedback |
| Low Inductance | Low inductance |
| Solderable copper leads | Surge and pulse |
| Special tight toleranceare available on request | Inverters |

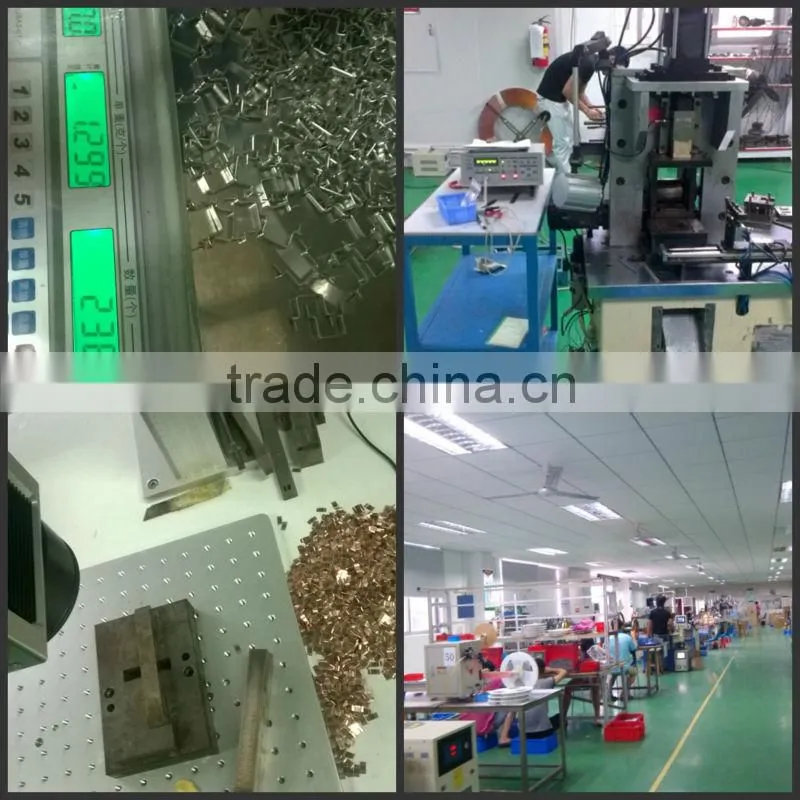

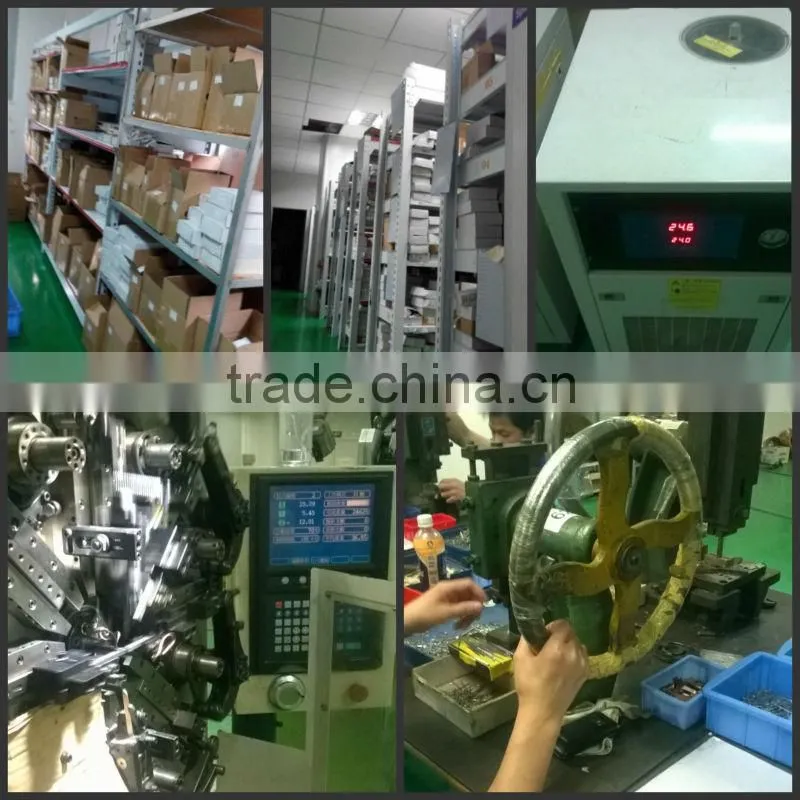

Shenzhen Yezhan Electronics Co., Ltd As a professional electronic manufacturer in Shenzhen,our company established in 2005.We has already been a famous manufacturer for several years.
We specialize in resistors(current sensing/alloy shunt/weld precision/thermal/fixded……)
We guarantee strict production process. As the advantage,our competitive price will help to save your purchase cost and your precious time.
Any interest of our productcs,please give me a calling or send an E-mail,thanks.
