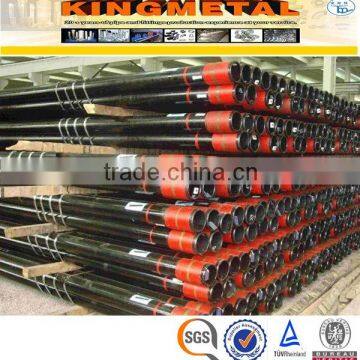

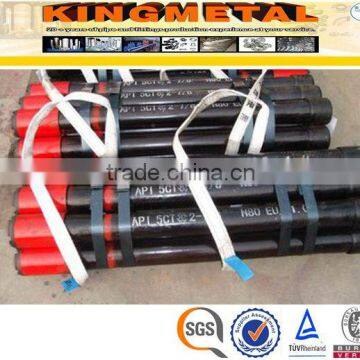

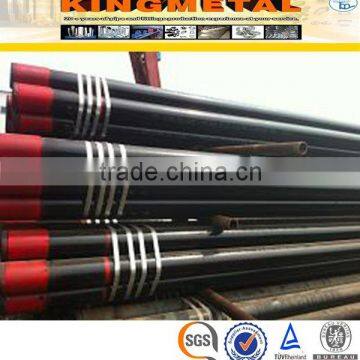

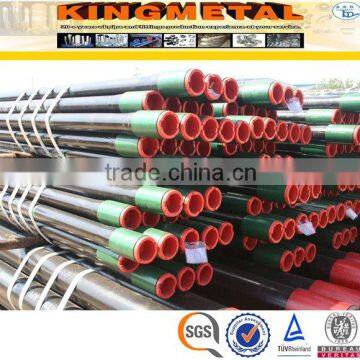

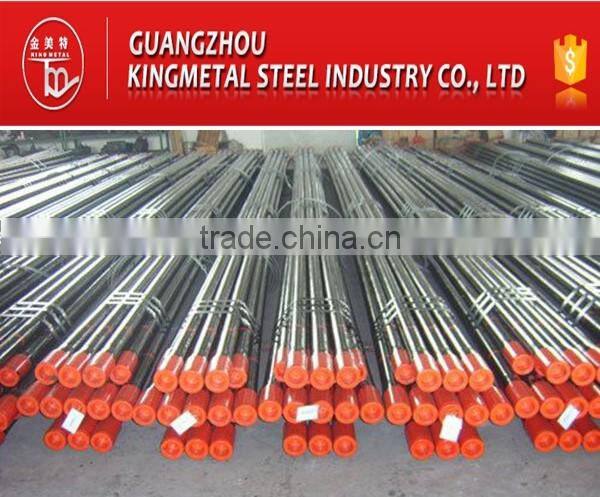

API 5D Seamless Carbon Steel Oil Drilling Pipe

US$ 600 - 1,500 MOQ: 1 Ton

Key Specifications

Standard:

Thickness:

7.11, 10.54

Section Shape:

Round

Guangzhou Kingmetal Steel Industry Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

main port of China

Delivery Detail:

Delivery time depends on order quantity.

Thickness 7.11, 10.54

Section Shape Round

Outer Diameter 60.3 - 139.7 mm

Place of Origin China

Secondary Or Not Non-secondary

Application Drill Pipe

Certification API

Surface Treatment Other, black panting,oil coated,etc

Special Pipe API Pipe

Alloy Or Not Non-alloy

Standard: YB/T5052, Q/OHAD006-2009, API 5DP ,API SPEC 5D

Size: 2-3/8---5-1/2

Use: For well drilling, for petroleuming recovering.

Surface treatment: Painting,blank oil painting or as requested

Advantages:
1.20 + years of pipe production experience at your service.

2. The fastest delivery

3. The lowest price

4. Most comprehensive standards and materials for your choice.

5.100% export.

6. Our products EXPORT to Africa, Oceania, mid east, eastern Asia, Western Europe etc.

Drill pipe
size designation		Nominalweight	Calculated weight		Grade	Wall thickness		Puset type(see the note)
in.	mm	Nominalweight	ib/ft	kg/m	Grade	in	mm	Puset type(see the note)
2 3/8	60.3	6.65	6.26	9.32	E,X,G,S	0.280	7.11	EU
2-7/8	73	10.4	9.72	14.48	E,X,G,S	0.362	9.19	EU,IU
3-1/2	88.9	9.5	8.81	13.12	E	0.254	6.45	EU,IU
3/1/2	88.9	13.3	12.31	18.34	E,X,G,S	0.368	9.35	EU,IU
3-1/2	88.9	15.5	14.63	21.79	E	0.449	11.40	EU,IU
3-1/2	88.9	15.5	14.63	21.79	X,G,S	0.499	11.40	EU,IEU
4	101.6	14	12.93	19.26	E,X,G,S	0.330	8.38	EU,IU
4-1/2	114.3	13.75	12.24	18.23	E	0.271	6.88	EU,IU
4-1/2	114.3	16.6	14.98	22.31	E,X,G,S	0.337	8.56	EU,IEU
4-1/2	114.3	20	18.69	27.84	E,X,G,S	0.430	10.92	EU,IEU
5	127	16.25	14.87	22.15	X,G,S	0.296	7.52	IU
5	127	19.5	17.93	26.71	E	0.362	9.19	IEU
5	127	19.5	17.93	26.71	X,G,S	0.362	9.19	EU,IEU
5	127	25.6	24.03	35.79	E	0.500	12.70	IEU
5	127	25.6	24.03	35.79	X,G,S	0.500	12.70	EU,IEU
5-1/2	139.7	21.9	19.81	29.51	E,X,G,S	0.361	9.17	IEU
5-1/2	139.7	24.7	22.54	33.57	E,X,G,S	0.415	10.54	IEU
Note:EU-external upsetIU-internal upsetIEU-internal & external upset
