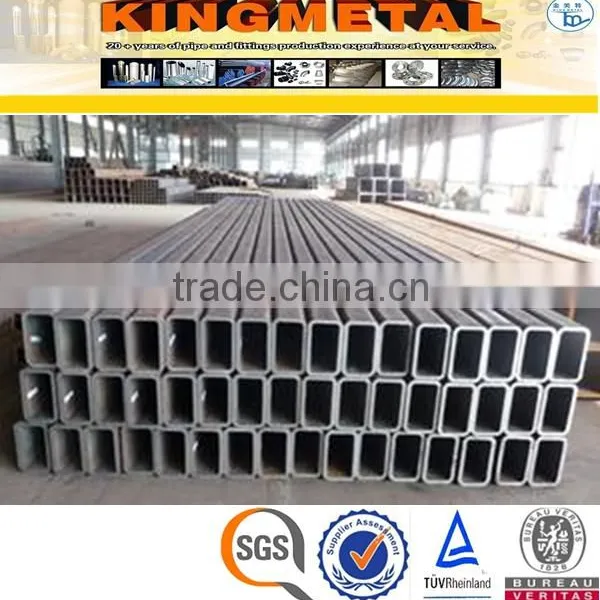

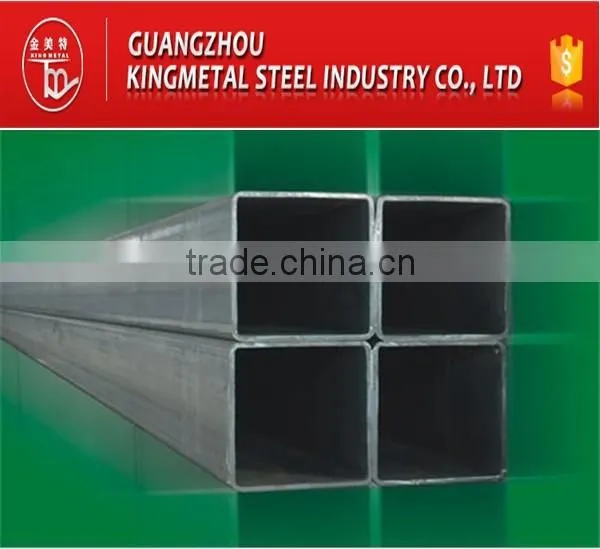

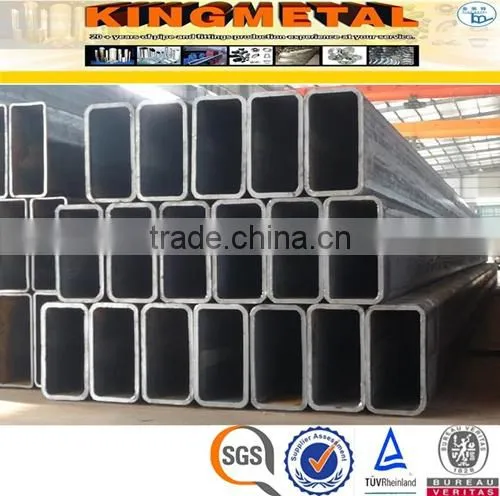

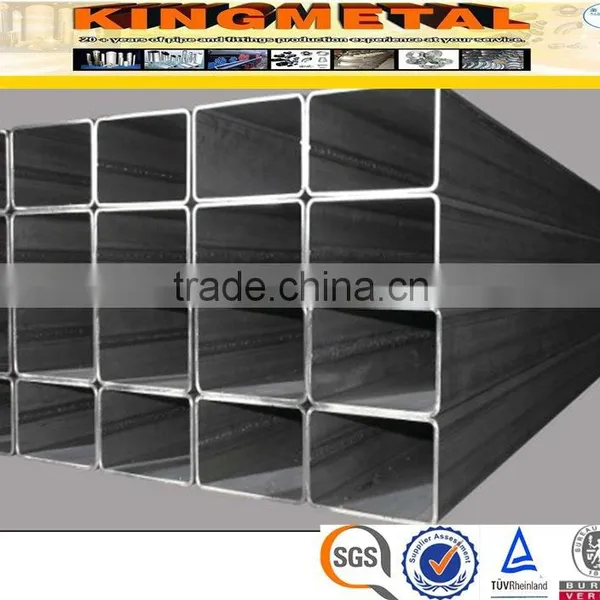

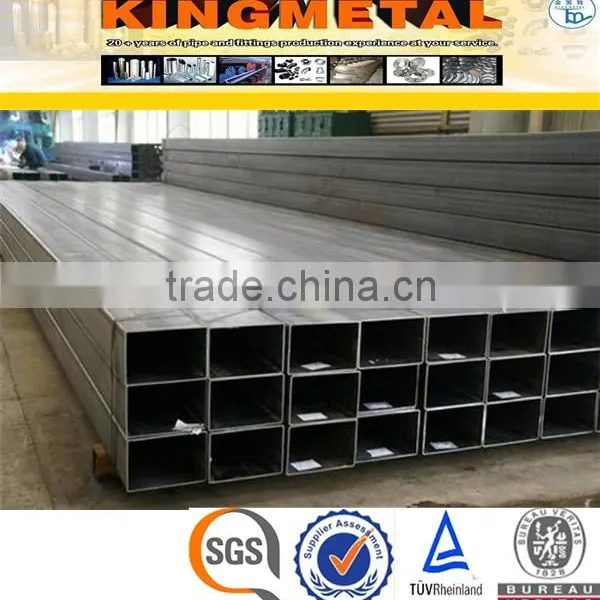

Help CenterASTM A500 Gr. B Welded Carbon Steel Rectangular Steel Tube Sizes
Related Products
-
DIN2391 ST37.4 Seamless Cold Drawn Carbon Steel Precision TubeUS$ 450 - 2,500MOQ: 1 Ton -
API 5CT J55 K55 N80 L80 Oil Casing TubeUS$ 500 - 1,000MOQ: 1 Ton
-
API 5CT N80 Seamless Steel Oil Well Casing Pipe Length: R1 R2 R3US$ 450 - 650MOQ: 5 Tons
-
API 5CT K55 J55 Steel Oil Casing Pipe/TubingUS$ 450 - 700MOQ: 5 Tons
-
U-shaped Steel PipeUS$ 3,200 - 4,500MOQ: 1 Ton
Standards & Grade: GB/T 13793, GB/T 6728, GB 15831 ,JIS G 3466 ,ASTM A500/ A 53 ,BS 1387 ,ASTM A511, EN 10297, DIN 17456, DIN 17458, JIS G3459, JIS GS3463, GS3467, JIS G3448, GOST 9940, GOST 9941
Material:
TP304,TP304L, TP316,TP316L, TP321 1.4301, 1.4306, 1.4401,1.4404, 1.4541 SUS304TP,SUS304LTP,SUS316TP,SUS316LTP,SUS321TP
S185, S235, S235JR, S235 G2H, S275, S275JR, S355JRH, S355J2H, ST12, ST13, ST14, ST44, ST52
Gr, A, Gr B, Gr C, Gr D, DC01, DC03, 1008, 1010
SS330, SS440, SS490, SPHD
Q195, Q215,Q275, Q295, Q345, etc
Dimension:
Sq: 12 x 12 x (0.5-1.8) ---- 600 x 600 x (8-14)
Rec: 10 x 22 x (0.6-1.5) ---- 450 x 250 x (8-14)
Surface: Hot dipped galvanized, Oiled or black painted to prevent rust.
Packing: Standard Export Packing. with or without edge protector (cap), with or wihout light varnish or black oil, bundles with firm steel strip.
Operation principle: Superior Quality, Competitive Price, Best Service. Offer Business License/ ISO9001: 2008/ API/ Certificate of Compliance/ Test Report.
Applications:Frame, building materials, fence, industrial plant structure, bicycles,etc.
Advantages:
1.20 + years of production experience at your service.
2. The fastest delivery
3. The lowest price
4. Most comprehensive standards and materials for your choice. 5.100% export.
6. Our products EXPORT to Africa, Oceania, mid east, eastern Asia, Western Europe etc.
Parameter of Rectangular Tube:
Type |
Grade: HXB(mm) | Thickness(mm) | Length(m) |
| Rectangular Tube | 80×60 | 2.0~6 | Length:6~12m |
| 120×60 | 2.5~6 | ||
| 120×80 | 2.5~8 | ||
| 120×100 | 3.0~10 | ||
| 130×120 | 3.0~12 | ||
| 140×80 | 3.0~8 | ||
| 150×100 | 3.0~10 | ||
| 160×60 | 3.0~6 | ||
| 160×80 | 3.0~8 | ||
| 180×100 | 3.0~10 | ||
| 180×120 | 3.0~12 | ||
| 200×150 | 4~15 | ||
| 200×100 | 3.0~10 | ||
| 250×150 | 4~15 | ||
| 260×180 | 4~18 | ||
| 300×200 | 4~19 | ||
| 300×220 | 4~19 | ||
| 350×250 | 5~19 | ||
| 400×200 | 4~19 |
Parameter of Square Tube:
| Type | Grade: HXB(mm) |
Thickness(mm) | Length(m) |
| Square Tube | 60×60 | 2~6 | Length:6~12m |
| 70×70 | 2~6 | ||
| 80×80 | 2~8 | ||
| 90×90 | 2.5~8 | ||
| 100×100 | 2.5~10 | ||
| 110×110 | 3.0~10 | ||
| 120×120 | 3.0~12 | ||
| 130×130 | 3.0~12 | ||
| 140×140 | 3.0~14 | ||
| 150×150 | 3.0-16 | ||
| 150×150 | 4~15 | ||
| 160×160 | 4~16 | ||
| 170×170 | 4~17 | ||
| 180×180 | 4~18 | ||
| 200×200 | 4~19 | ||
| 220×220 | 4~17 | ||
| 240×240 | 5~19 | ||
| 250×250 | 5~19 | ||
| 260×260 | 5~19 | ||
| 280×280 | 6~19 | ||
| 300×300 | 6~19 |
