VCW Velcro braided wrap
Description:

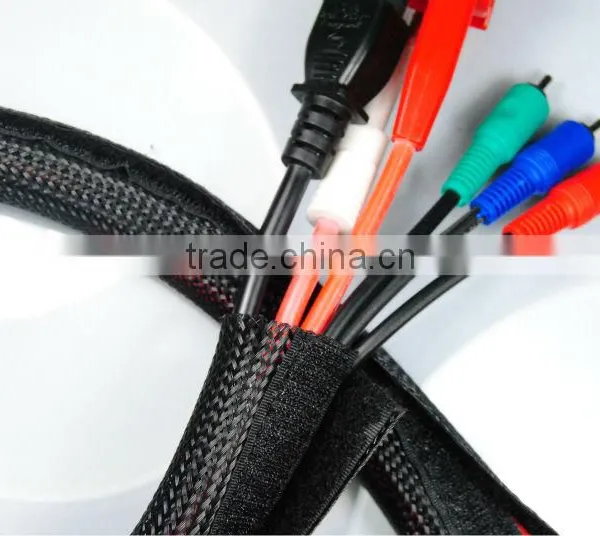

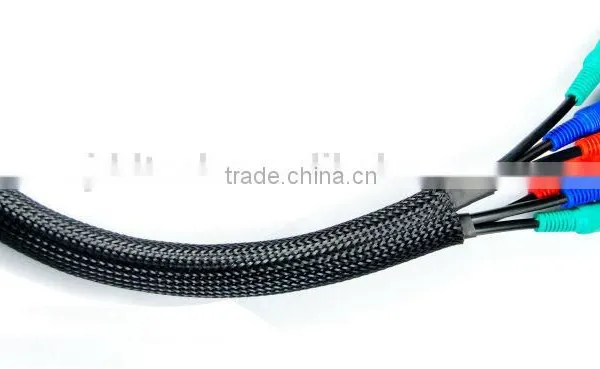

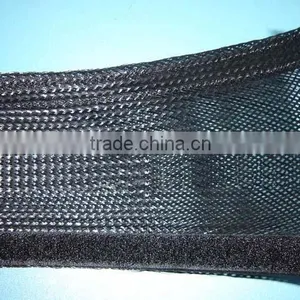

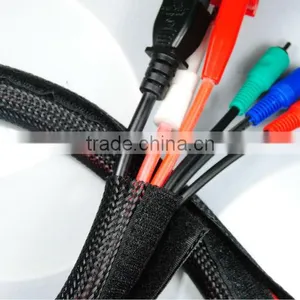

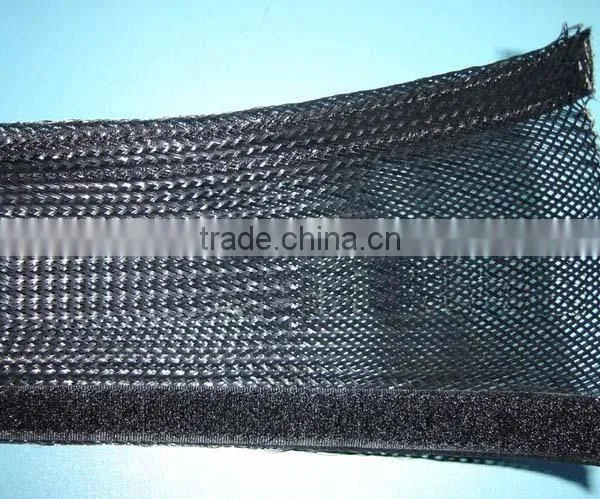

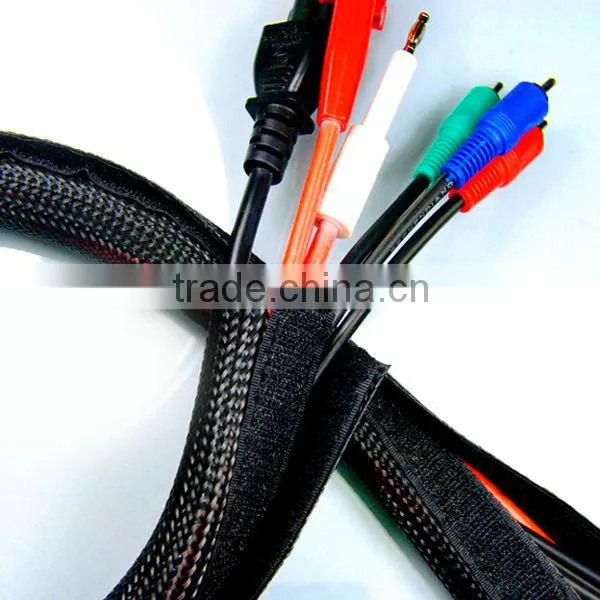

JDD VCW Velcro braided wrap can help to create a tidy and well-regulated environment. It can be easily wrapped and closed over the cables. It can be re-opened rapidly to manage cables to be added or removed, and breakouts can be made simply by bringing cables out through Velcro. Open weave design easily conforms to many irregular shapes.
Application:
Velcro braided wrap is widely used for management of A/V cables and power cord in home theater,
computer, TV support and so on.
Technical data:
Material: PA(Polyamide)
Wrap material: PET (Polyester)
Velcro material: Polyamide
Operating range: -50°C ÷ +150°C
Melting point: 230 °C ± 5
Flammability: UL 94 VW-1
Approved: RoHS,
Standard colours: black, white, grey
Cutting tool: hot knife
Dimensions:
Part No. |
Nominal size |
Velcro width |
Max. bundle diam. |
Packing (L) |
VCW-013 |
13mm |
10 mm |
8 mm |
50 m/roll |
VCW-019 |
19 mm |
10 mm |
12 mm |
50 m/roll |
VCW-032 |
32 mm |
20 mm |
20 mm |
50 m/roll |
VCW-051 |
51 mm |
20 mm |
32 mm |
50 m/roll |
VCW-064 |
64 mm |
20 mm |
40 mm |
50 m/roll |
Notes:
- 1. Nominal Size indicates flat width. I.D. indicates round inner diameter.
- The part No. will be followed by BK, WH, GR and so on to indicate the colour of wrap.
- Special packages, sizes and colours can be supplied upon request.
- All numerical data are average value, not including customized sizes.
