ADDENDUM 4 PVC button wrap
Description:

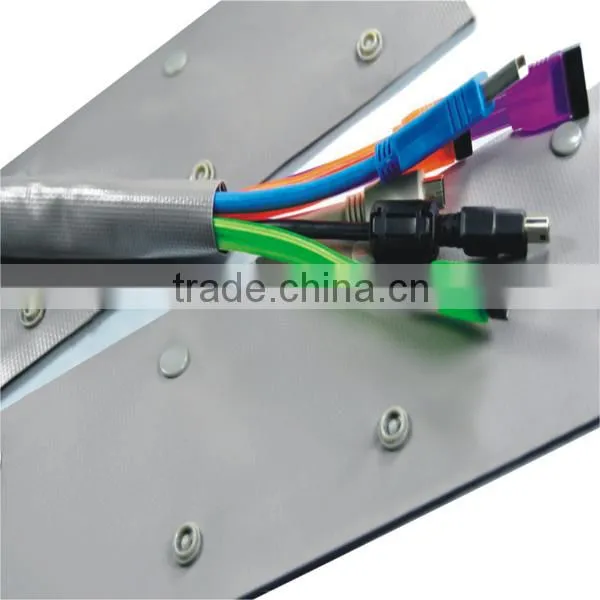

JDD BWS PVC button wrap makes tidy and beautify the wiring look. It is reusable and has excellent performance of insulation and abrasion resistance. It allows breakouts of single or multiple wires for re-routing or replacement.
Application :

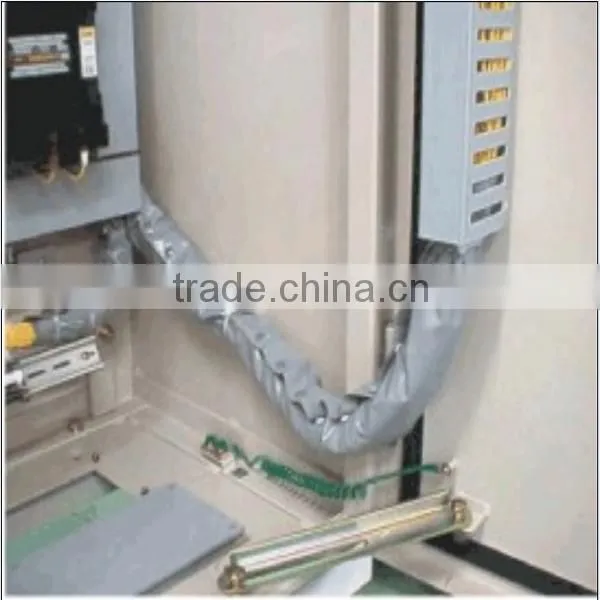

Widely used for bundling and protecting the wires harness and cables on dash board, computer cable, TV, equipment and so on.
Technical Data:
Material: PVC
Operating: -15℃~+85℃
Flammability: UL 94V-0
Standard colours: black, grey
Certified: RoHS
Cutting tool: Scissors
Dimensions:
Part No. |
I.D |
Width (W) |
Packing(L) |
BWS-012 |
12mm |
60mm |
75 m/roll |
BWS-019 |
19mm |
80mm |
75 m/roll |
BWS-020 |
25mm |
100mm |
75 m/roll |
BWS-025 |
31mm |
120mm |
75 m/roll |
BWS-030 |
37mm |
140mm |
75 m/roll |
BWS-035 |
44mm |
160mm |
75 m/roll |
BWS-040 |
50mm |
180mm |
75 m/roll |
BWS-045 |
57mm |
202mm |
75 m/roll |
BWS-050 |
70mm |
242mm |
75 m/roll |
BWS-060 |
100mm |
335mm |
75 m/roll |
BWS-070 |
150mm |
495mm |
75 m/roll |
Notes:
1. The part No. will be followed by BK, GR and so on to indicate the color of wrap. B/G indicates one side black , the other side gray.
2. Special package, sizes ,colours, L1 and L2 (in drawing) can be supplied upon request.
3. All numerical data are average or typical value, not including customized sizes.
