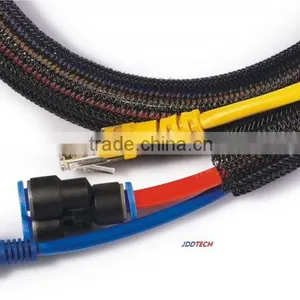

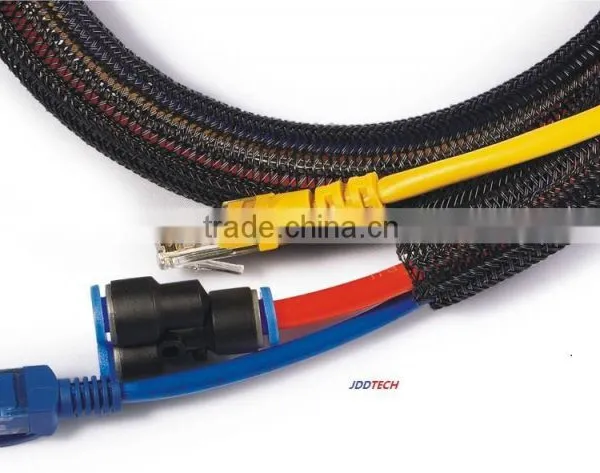

Help CenterSelf-closing Cable Sock
Related Products
JDD-SCW self-closing wrap offers innovative solutions for the protection of breakout areas and provides easy removal when is necessary an inspection or maintenance of cables. The special open structure allows to be installed after other components, for example copper terminals and connectors. A strong resilience protects wires and cables and meanwhile provides exceptional abrasion and flame resistance.
Application: Its ideal for application in wire harness, automatic equipment, railways, general manufacturing industry where wires and tubes need a tough and durable protection.
| Part No. | I.D | Overlap | Max bundle Dia | Packing(L) |
| SCW-006 | 6 | 25% | 7 | 100m/spool |
| SCW-009 | 9 | 25% | 10 | 100m/spool |
| SCW-013 | 13 | 25% | 14 | 50m/spool |
| SCW-016 | 16 | 25% | 17 | 25m/spool |
| SCW-019 | 19 | 25% | 20 | 25m/spool |
| SCW-025 | 25 | 25% | 26 | 25m/spool |
| SCW-032 | 32 | 25% | 33 | 25m/spool |
| SCW-038 | 38 | 25% | 40 | 25m/spool |
| SCW-050 | 50 | 25% | 52 | 25m/spool |
Unit:mm
Notes:
1.The part No.will be followed by BK,GR and so on to indicate the color of wrap.
2.Special packages, sizes and colors can be supplied upon request.
3.All numeric data shows average or typical values,not including customized sizes.
