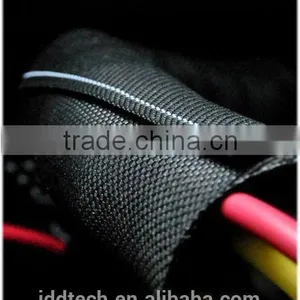

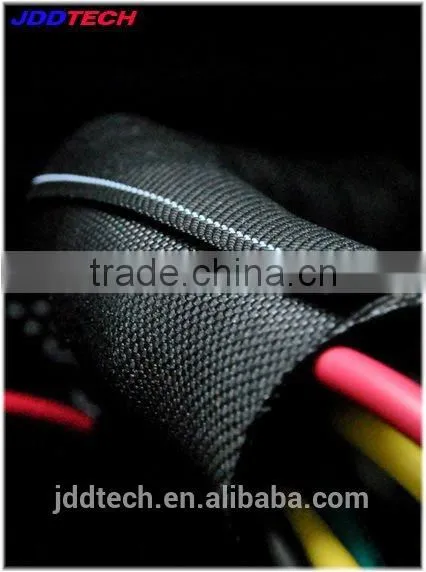

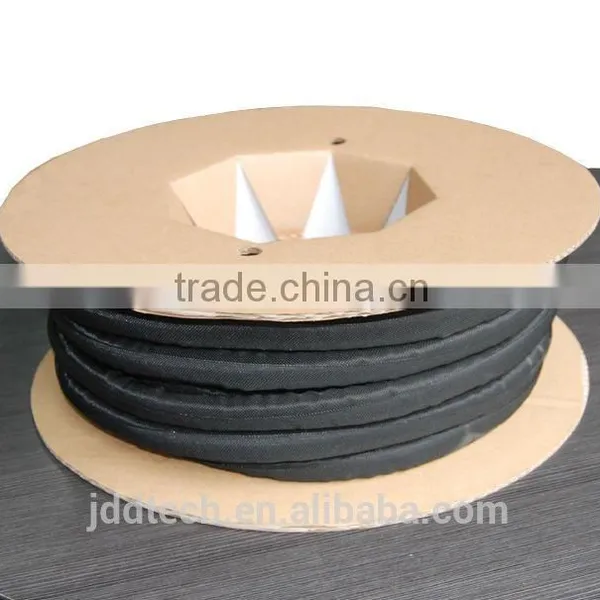

Self-closing wrap
Description:

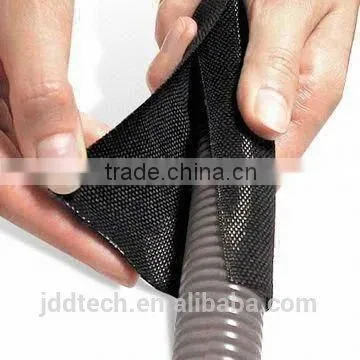

JDD self-closing wrap is a non-expandable sleeving woven from monofilament (weft) and multifilament (warp) polyester yarns. It provides a lightweight, cost-effective and tough solution for the protection of a wide range of components. Its inherent flexibility allows it to bend, coil and conform to irregular shapes, while its open design allows it to be installed on completed assemblies.
Application:

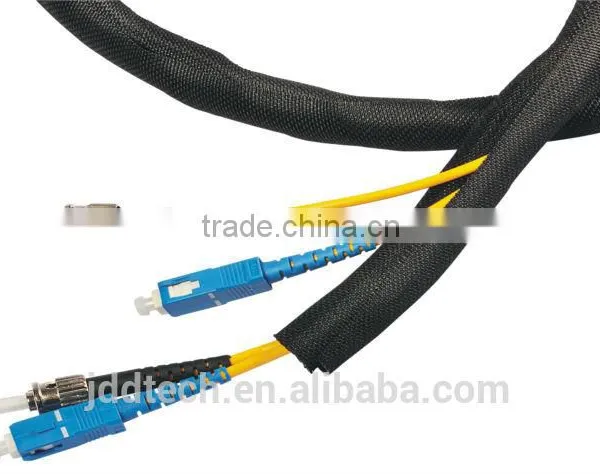

Most commonly used over wire harnesses, cable assemblies, flat ribbon cables, tubes and hoses to provide a tough, durable protection in automotive, automatic equipment, railways and panel boards.
Technical data:
Material: Polyester monofilament and multifilament
Operating range: -50 °C-+ 150 °C
Melt point: 250°C ± 5
Flammability: VW-1
Approved: RoHS, Halogen free
Standard colours : black, grey
Cutting tool: scissors
Dimensions:
Part No. |
Nominal Diameter |
Max. Bundle Dia. |
Packing |
|
SCS-005 |
5.0mm |
6.0mm |
100m |
|
SCS-008 |
8.0mm |
9.0mm |
100m |
|
SCS-010 |
10.0mm |
11.0mm |
100m |
|
SCS-013 |
13.0mm |
14.0 mm |
50m |
|
SCS-019 |
19.0mm |
20.0 mm |
25m |
|
SCS-025 |
25.0mm |
27.0 mm |
25m |
|
SCS-029 |
29.0mm |
31.0 mm |
25m |
|
SCS-032 |
32.0mm |
34.0 mm |
25m |
|
SCS-038 |
38.0mm |
40.0 mm |
25m |
|
SCS-050 |
50.0mm |
52.0 mm |
25m |
Note:
- 1. The part No. will be followed by BK, GR and so on to indicate the colour of wrap.
- 2. Special packing, sizes and colours can be supplied upon request.
- 3. All numerical data are average or typical values, not including customized sizes
