Self-closing Braided Wrap

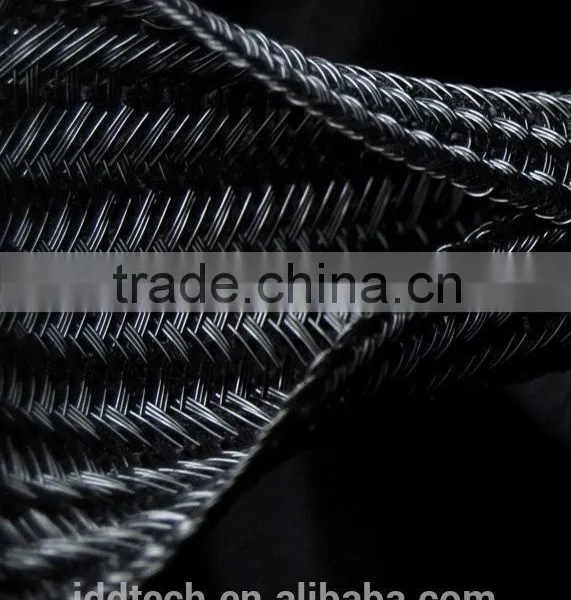

Self-closing Braided Wrap photo-1

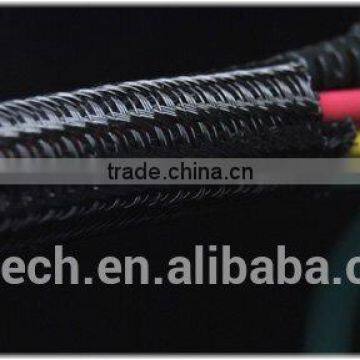

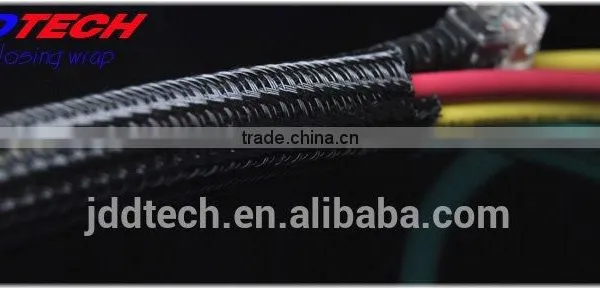

Self-closing Braided Wrap photo-2

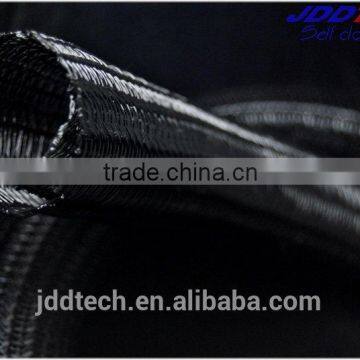

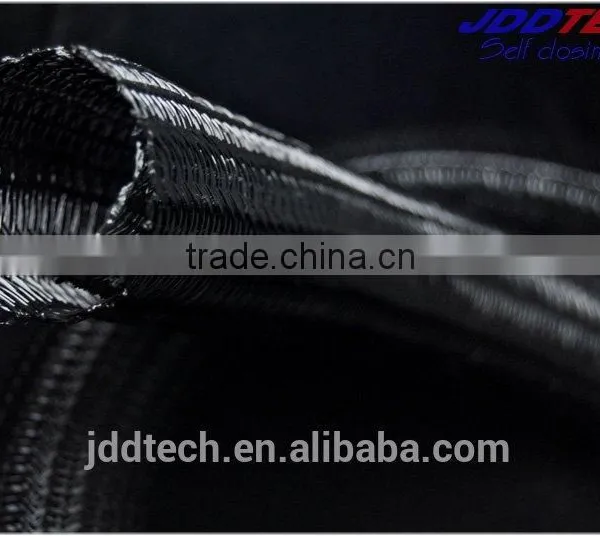

Self-closing Braided Wrap photo-3

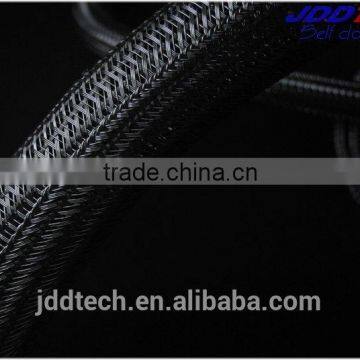

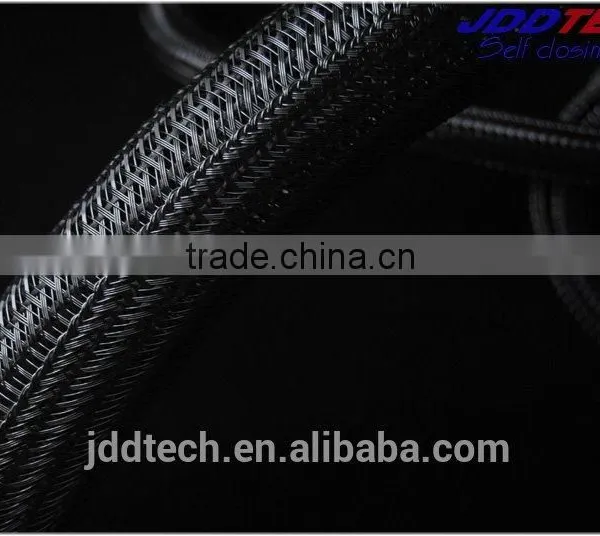

Self-closing Braided Wrap photo-4

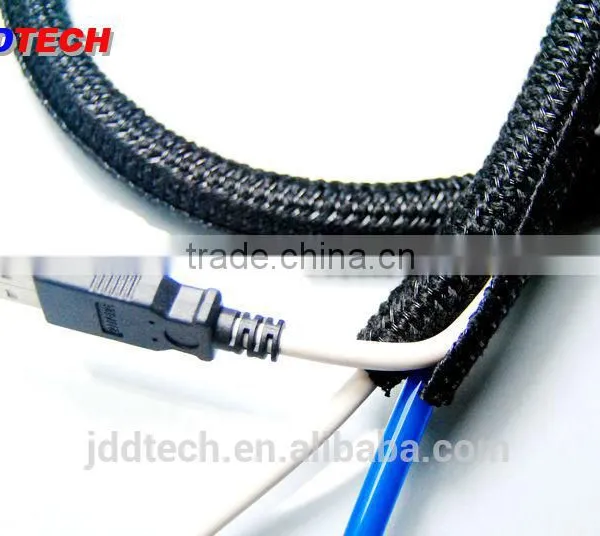

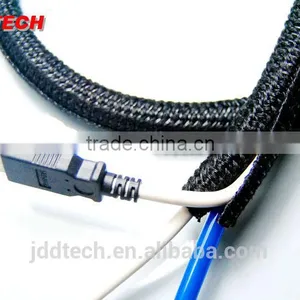

Self-closing Braided Wrap photo-5

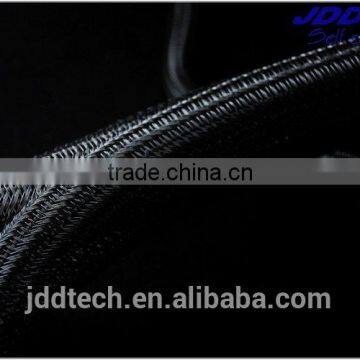

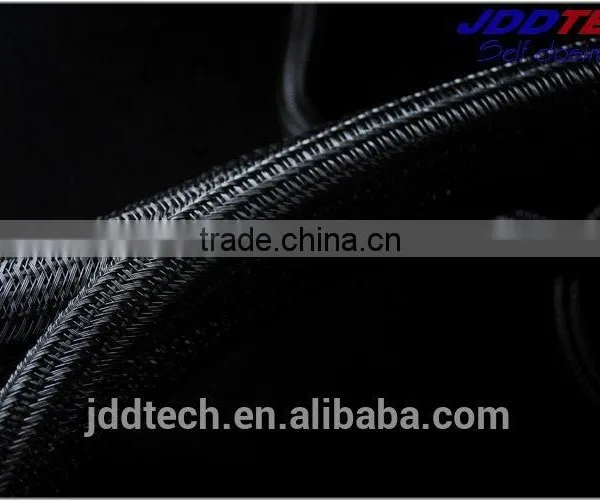

Self-closing Braided Wrap photo-6
US$ 0.99 - 4.99 MOQ: 1000 Meters
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
JDD
Model Number:
SCW-016
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Guangdong, China
Brand Name JDD
Model Number SCW-016
Type Other, Self-closing
Material Other, PET (Polyester)

Description:



JDD self-closing braided wrap offers innovative solutions for the protection of breakout areas and  provides easy removal when is necessary aninspection or maintenance of cables.

The special open structure allows to be installed after other components, for example copper terminalsand connectors. A strong resilience protects wires and cables and  meanwhile provides exceptional abrasion  and flame resistance.



Application:



It’s ideal for application in wire harness, automatic equipments , railways, general

manufacturing industry where wires and tubes need a tough and durable protection.



Technical data:



Material:Polyester

Operatingrange: -50°C  ÷  +150°C

Melt point: 250°C ± 5

Flammability:  VW-1

Certificate: RoHS, Halogen free

Standard colour: black

Cutting tool: hot knife



Dimensions:



Part No.

I.D

(d)

Overlap

(%)

Max. Bundle Dia.

Packing
(L)

SCW-006

6.0 mm

25

7.0 mm

100 m

SCW-009

9.0 mm

10.0 mm

100 m

SCW-013

13.0 mm

14.0 mm

50 m

SCW-016

16.0 mm

17.0mm

25m

SCW-019

19.0 mm

20.0 mm

25 m

SCW-025

25.0 mm

26.0 mm

25 m

SCW-032

32.0 mm

33.0 mm

25 m

SCW-038

38.0 mm

40.0 mm

25 m

SCW-050

50.0 mm

52.0 mm

25 m





Notes:

  1. 1.  The part No. will be followed by BK, GR and so on to indicate the color of wrap.
  2. 2.  Special packing, sizes and colourscan be supplied upon request.
  3. 3.  All numerical data areaverage or typical values, not including customized sizes.Self-closing braided wrapSelf-closing braided wrapSelf-closing braided wrap
