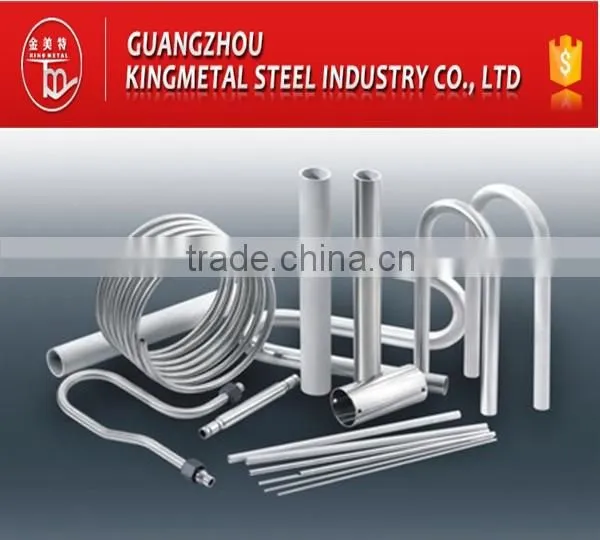

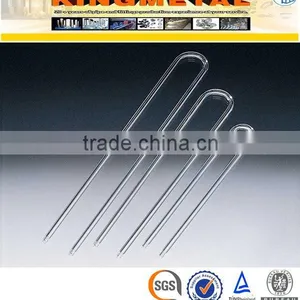

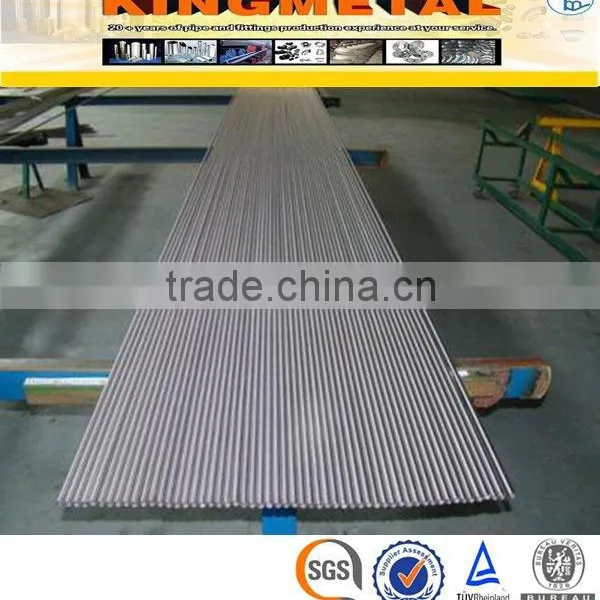

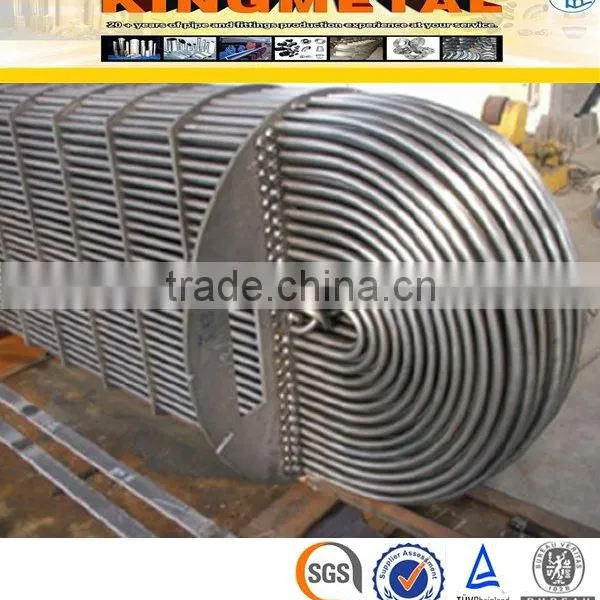

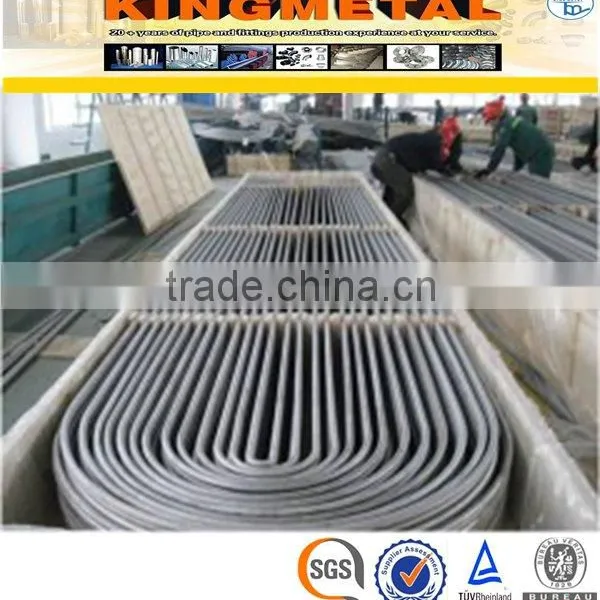

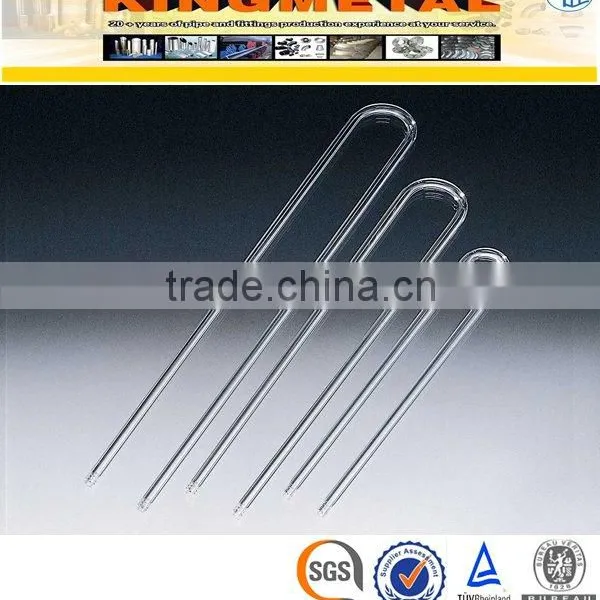

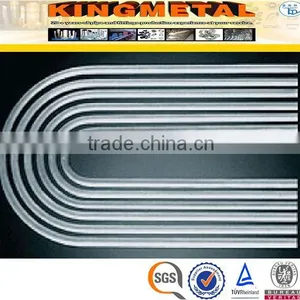

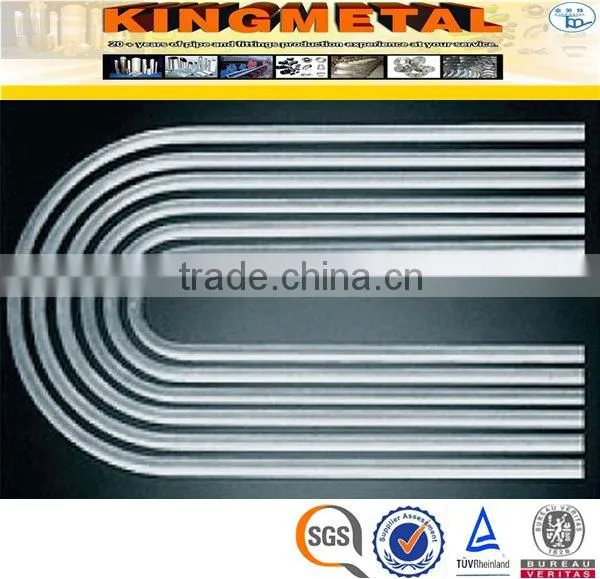

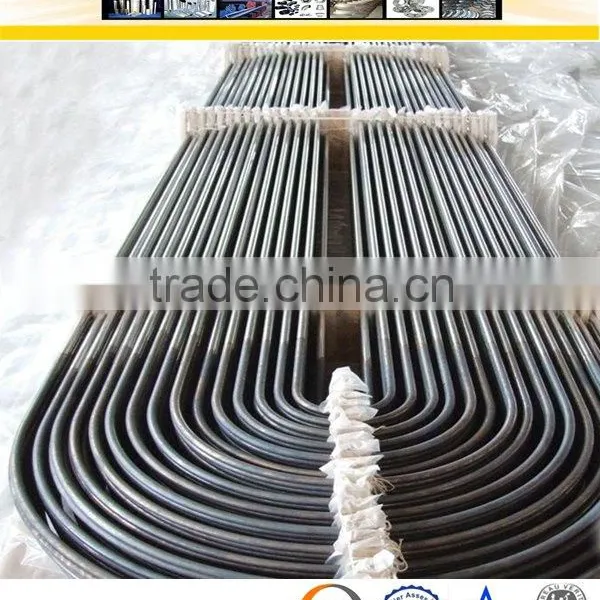

ASTM A312 304/316 Seamless Stainless Steel Heat Exchanger U Tube
US$ 3,000 - 5,000
MOQ: 1 Ton
Key Specifications
Get Latest Price
Standard:
ASTM, AISI, DIN, EN, GB, JIS
Place of Origin:
China
Brand Name:
Kingmetal
Payment & Shipping
Payment Methods:
Port of Shipment:
China main port
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
304 Seamless Stainess Steel U Tube/ Heat Exchanger U TubeUS$ 2,000 - 5,000MOQ: 100 Tons -
SS 304,316L SA213 Heat Exchanger U Bent Tubes/u Bend PipeUS$ 2,000 - 3,000MOQ: 3 Tons
-
ASTM A312, 304/321/310S Price Stainless Seamless Steel Food Grade Pipe FactoryUS$ 3,500 - 8,000MOQ: 1 Ton
-
ASTM A500 RECTANGULAR PIPE SQUARE PIPEUS$ 500 - 900MOQ: 10 Tons
-
7 Inch Oil Well Casing Pipe, Gas and Petroleum Pipe/TubeUS$ 500 - 700MOQ: 5 Tons
Standard
ASTM, AISI, DIN, EN, GB, JIS
Place of Origin
China
Brand Name
Kingmetal
Model Number
EL-UT
Type
Seamless
Steel Grade
300 Series
Application
Heat Exchanger, Heat Exchanger
Certification
ISO
Welding Line Type
Seamless
Thickness
0.5-3mm
Outer Diameter
6-101.6mm
Size:
O. D.: 6mm to 219mm
W. T.: 0.5mm to 3mm
Length: Max. 20meters
Material:
TP304,TP304L,TP304H,TP304/304L,TP316,TP316L,TP316/316L,TP310,TP317, TP317L,TP321,TP321H,TP347,TP347H,S31803,S32205(Duplex),904L etc
Process method: Cold drawn / cold rolled
Surface finish: Annealed & Pickled /Bright Annealed,
180G, 320G, 400G Satin / Hairline 400G, 500G, 600G or 800G Mirror finish and so on.
Standards: ASTM A213,ASTM A312,ASTM A269,ASTM A778,ASTM A790,DIN 17456,DIN 17458,JIS G3459,JIS G3463 etc
Applications:
Stainless steel pipe applies to construction field,
ships building industry, petroleum & chemicalindustries,
war and electricity industries,food processing and
medical industry, boiler heat exchanger,machinery
andhardware fields. Stainless steel pipe can be made
accordingto the customers requirements.
Packing: Seaworthy Wooden Cases / Steel Framed Cases / Bundle
| Material | ASTM A213 Chemical Composition % Max | ||||||||||
| C | Mn | P | S | Si | Cr | Ni | Mo | N B | Nb | Ti | |
| TP304 | 0.08 | 2.00 | 0.045 | 0.030 | 1.00 | 18.0-20.0 | 8.0-11.0 | ^ | ^ | ^ . | ^ |
| TP304L | 0.035 | 2.00 | 0.045 | 0.030 | 1.00 | 18.0-20.0 | 8.0-12.0 | ^ | ^ | ^ | ^ |
| TP316 | 0.08 | 2.00 | 0.045 | 0.030 | 1.00 | 16.0-18.0 | 10.0-14.0 | 2.00-3.00 | ^ | ^ | ^ |
| TP316L | 0.035 D | 2.00 | 0.045 | 0.030 | 1.00 | 16.0-18.0 | 10.0-15.0 | 2.00-3.00 | ^ | ^ | ^ |
| TP321 | 0.08 | 2.00 | 0.045 | 0.030 | 1.00 | 17.0-19.0 | 9.0-12.0 | ^ | ^ | ^ | 5C -0.70 |
| TP347 | 0.08 | 2.00 | 0.045 | 0.030 | 1.00 | 17.0-19.0 | 9.0-12.0 | 10C -1.10 | ^ | ||
| Material | Heat treatment | Temperure F (C) Min. | Hardness | |
| Brinell | Rockwell | |||
| TP304 | Solution | 1900 (1040) | 192HBW/200HV | 90HRB |
| TP304L | Solution | 1900 (1040) | 192HBW/200HV | 90HRB |
| TP316 | Solution | 1900(1040) | 192HBW/200HV | 90HRB |
| TP316L | Solution | 1900(1040) | 192HBW/200HV | 90HRB |
| TP321 | Solution | 1900(1040) F | 192HBW/200HV | 90HRB |
| TP347 | Solution | 1900(1040) | 192HBW/200HV | 90HRB |
| OD, inch | OD Tolerance inch(mm) | WT Tolerance % | Length Tolernace inch(mm) | |
| + | - | |||
| ≤ 1 / 2 | ± 0.005 ( 0.13 ) | ± 15 | 1 / 8 ( 3.2 ) | 0 |
| > 1 / 2 ~1 1 / 2 | ± 0.005(0.13) | ± 10 | 1 / 8 (3.2) | 0 |
| > 1 1 / 2 ~< 3 1 / 2 | ± 0.010(0.25) | ± 10 | 3 / 16 (4.8) | 0 |
| > 3 1 / 2 ~< 5 1 / 2 | ± 0.015(0.38) | ± 10 | 3 / 16 (4.8) | 0 |
| > 5 1 / 2 ~< 8 | ± 0.030(0.76) | ± 10 | 3 / 16 (4.8) | 0 |
| 8~< 12 | ± 0.040(1.01) | ± 10 | 3 / 16 (4.8) | 0 |
| 12~< 14 | ± 0.050(1.26) | ± 10 | 3 / 16 (4.8) | 0 |
