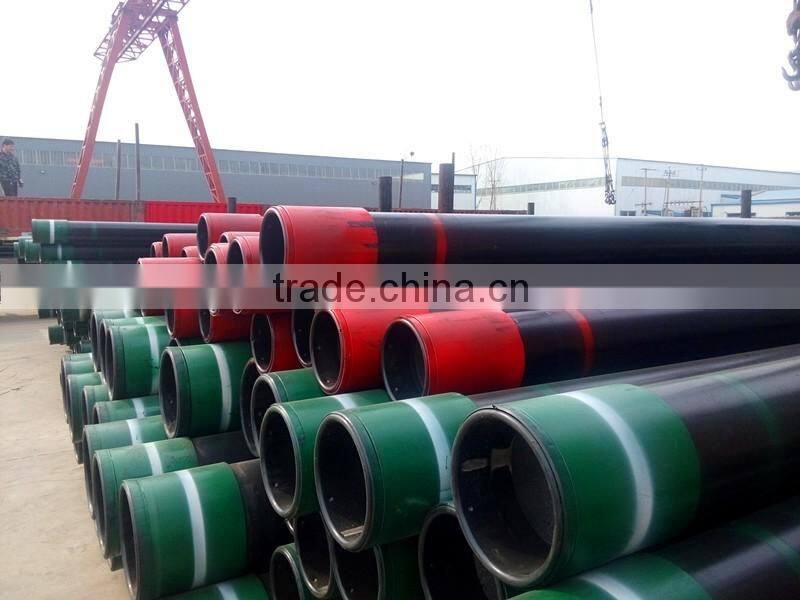

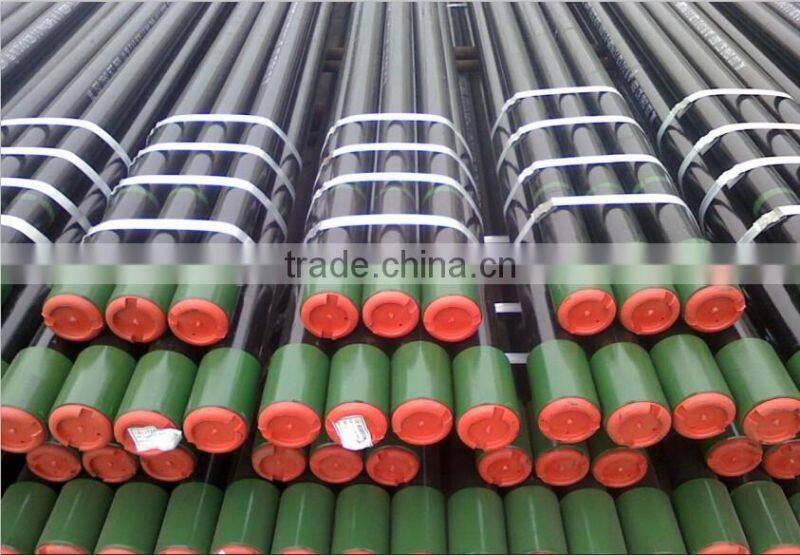

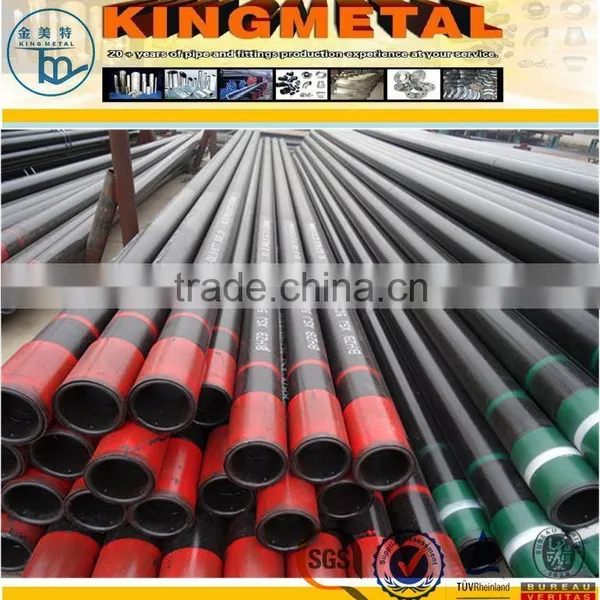

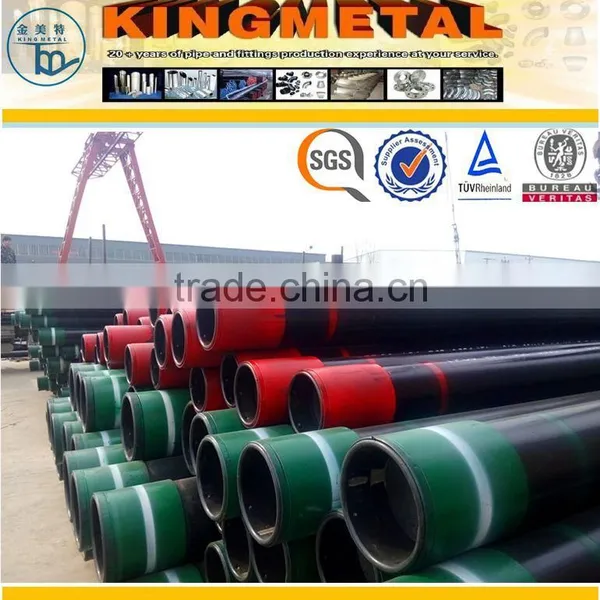

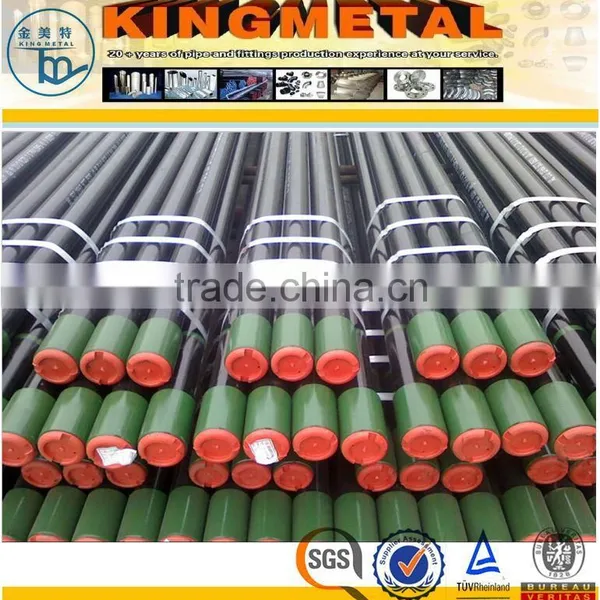

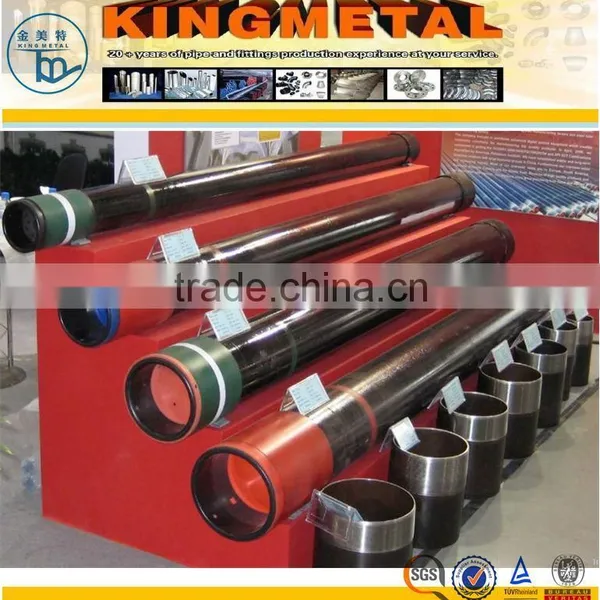

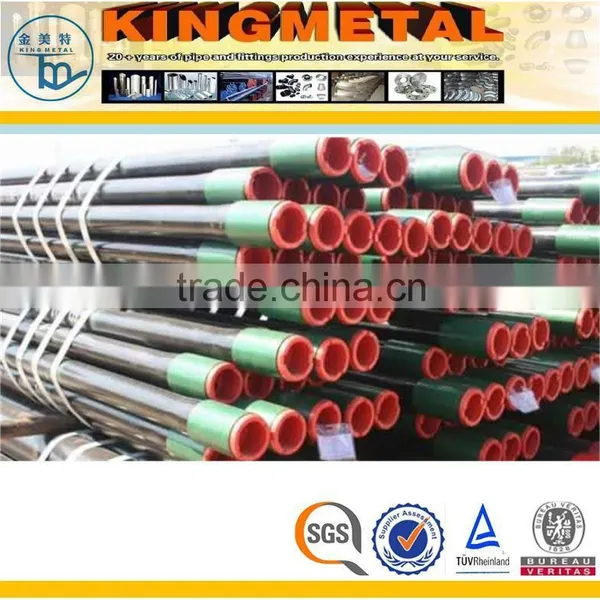

7 Inch Oil Well Casing Pipe, Gas and Petroleum Pipe/Tube
US$ 500 - 700
MOQ: 5 Tons
Key Specifications
Get Latest Price
Thickness:
4.24, 16.13
Section Shape:
Round
Outer Diameter:
60.3 - 508 mm
Payment & Shipping
Payment Methods:
Port of Shipment:
China Main Port
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
STB340 Seamless Boiler Steel Tube and PipeUS$ 1,000 - 1,000MOQ: 5 Tons -
ASTM A269 TP304/316L Seamless Stainless Steel Tube/PipeUS$ 3,200 - 4,500MOQ: 1 Ton
-
Seamless Alloy Steel 34crmo4 TubeUS$ 600 - 2,500MOQ: 1 Ton
-
Hot Rolled 200x200 Square/Rectangular Hollow Section PriceUS$ 450 - 1,200MOQ: 1 Ton
-
Q345 Welded Carbon Steel Rectangular/Square Hollow Section PriceUS$ 450 - 1,500MOQ: 1 Ton
Thickness
4.24, 16.13
Section Shape
Round
Outer Diameter
60.3 - 508 mm
Place of Origin
China
Secondary Or Not
Non-secondary
Application
Other, Oil Pipe, Gas Pipe
Technique
Hot Rolled
Certification
Other, API 5CT
Surface Treatment
Other, Oiled, Black Painted, Varnish Coated, 3PE
Special Pipe
API Pipe
Alloy Or Not
Non-alloy
Oil Well Casing Pipe, Gas and Petroleum Pipe/Tube
1) Standard: GB/T9711.2, API 5CT
2) Grade/Material: P110, j55, k55, l80, C90, C95, T95, n80, l80
4) Size Range:
Tubing OD: 2 3/8''-4 1/2'' (60.3mm - 114.3mm)
WT: 4.24mm- 16mm
Casing/ OD: 4 1/2 ''-20" (114.3mm-508mm)
WT: 0.205"-0.635" (5.12mm-16.13mm)
5) Length:
Tubing/R1(6.10m-7.32m), R2(8.53m-9.75m), R3(11.58m-12.80m)
Casing/R1(4.88m-7.62m), R2(7.62m-10.36m), R3(10.36m-14.63m)
6) Thread Type: LTC, STC, BTC, VAM, EUE, NUE
| API 5CT Casing Pipe Specification | |||||||
| Outsider Diameter | Wall Thickness | Grade | Thread | Length (range) | |||
| Inch | mm | kg/m | 1b/ft | J55/K55/N80/L80/P110 | STC/LTC/BTC | R1/R2/R3 | |
| 4 1/2" | 114.3 | 14.14-22.47 | 9.50-15.10 | J55/K55/N80/L80/P110 | STC/LTC/BTC | R1/R2/R3 | |
| 5" | 127 | 17.11-35.86 | 11.50-24.10 | J55/K55/N80/L80/P110 | STC/LTC/BTC | R1/R2/R3 | |
| 5 1/2" | 139.7 | 20.83-64.14 | 14.00-43.10 | J55/K55/N80/L80/P110 | STC/LTC/BTC | R1/R2/R3 | |
| 6 5/8" | 168.28 | 29.76-47.62 | 20.00-32.00 | J55/K55/N80/L80/P110 | STC/LTC/BTC | R1/R2/R3 | |
| 7" | 177.8 | 25.30-84.98 | 17.00-57.10 | J55/K55/N80/L80/P110 | STC/LTC/BTC | R1/R2/R3 | |
| 7 5/8" | 193.68 | 35.72-82.30 | 24.00-55.30 | J55/K55/N80/L80/P110 | STC/LTC/BTC | R1/R2/R3 | |
| 8 5/8" | 219.08 | 35.72-72.92 | 24.00-49.00 | J55/K55/N80/L80/P110 | STC/LTC/BTC | R1/R2/R3 | |
| 9 5/8" | 244.48 | 48.07-112.51 | 32.30-75.60 | J55/K55/N80/L80/P110 | STC/LTC/BTC | R1/R2/R3 | |
| 10 3/4" | 273.05 | 48.74-126.94 | 32.75-85.30 | J55/K55/N80/L80/P110 | STC/LTC/BTC | R1/R2/R3 | |
| 11 3/4" | 298.45 | 62.50-105.66 | 42.00-71.00 | J55/K55/N80/L80/P110 | STC/LTC/BTC | R1/R2/R3 | |
| 13 3/8" | 339.73 | 71.43-107.15 | 48.00-72.00 | J55/K55/N80/L80/P110 | STC/LTC/BTC | R1/R2/R3 | |
| 16" | 406.4 | 96.73-162.21 | 65.00-109.00 | J55/K55/N80/L80/P110 | STC/LTC/BTC | R1/R2/R3 | |
| 18 5/8" | 473.08 | 130.22 | 87.5 | J55/K55/N80/L80/P110 | STC/LTC/BTC | R1/R2/R3 | |
| 20" | 508 | 139.89-197.93 | 94.00-133.00 | J55/K55/N80/L80/P110 | STC/LTC/BTC | R1/R2/R3 | |
Length Range
|
Length Range |
Range1 | Range 2 | Range 3 |
| Tubing | 6.10-7.32m | 8.53-9.75m | 11.58-12.80m |
| Casing | 4.88-7.62m | 7.62-10.36m | 10.36-14.63m |
| Pup Joint | 2-20 feet 0.5-6m | ||

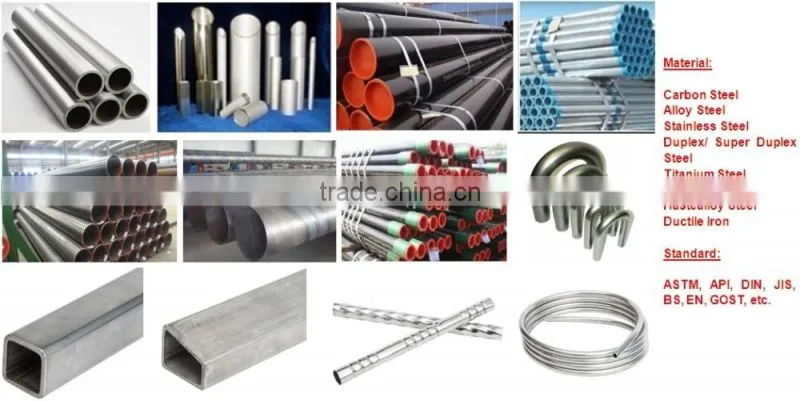

Steel Pipe & Tube
Seamless, ERW, LSAW, DSAW, SSAW, Galvanized
Cold Drawn Precision Tube, Mechanical Tube, Automobile Tube
OCTG, Drill Pipe, Piling Pipe
U-Shaped Tube, Coiled Tube, Finned Tube
Ductile Iron Casting Pipe
