QF-QD2600 Automatic Stitching Machine (stitcher for corrugated carton box)
- 20 Set / Sets per Month
- China port
- T/T
Product Details
| Condition: | New | Automatic Grade: | Automatic | Usage: | Other Forming Machine |
| Place of Origin: | China | Brand Name: | AMC | Model Number: | QF-QD |
| Voltage: | 380V(or Customization) | Power(W): | 32kw | Dimension(L*W*H): | 11600 x 3900 x 1870mm |
| Weight: | 11000kg | Certification: | CE Certificate | Warranty: | 12 Months |
| After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
QF-QD2600 Automatic Stitching Machine

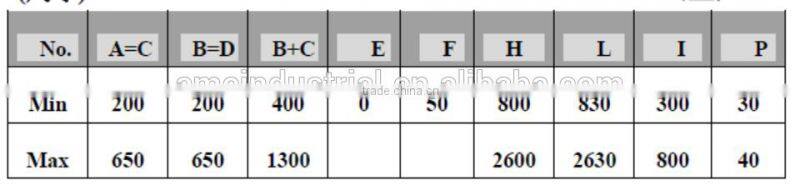

Sheet size:
Distinguishing feature:
After service: | Engineers available to service macinery overseas |
Machine weight | 11000KG |

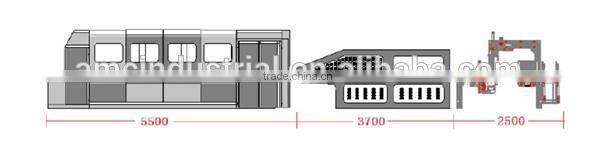

Machine dimension | 11600 x 3900 x 1870mm |
Driving type | Servo motor drive |
Automation | Automatic control |
Package | Covered with plastic film |
Machine status | 100% NEW |
HS Code | 84413090 |
Delivery time | 55 days |
Operator quantity | 3 persons |
Technician quantity for commissioning | 1 technician |
Time for commissioning | 7-10 days |
Brief Introduction:
l This automatic gluer stitcher machine can be used for stitching 3-ply corrugated box and 5-ply corrugated box.
l It can stitch single piece box.
l Customer first do printing, slotting and die cutting with flexo printer slotter die cutter machine, then use this automatic gluer stitcher machine to make sheet into boxes.
Characteristics:
- 1. 1 or 2 wire stitching at the same time in 45°
- 2. Change stitching size in one minute
- 3. Automatic counter, PLC control, touch screen operate
- 4. Require three operators only
- 5. 8 pcs servo motor for controlling the feeding, folding and stitching.
- 6. Main electric parts use SIEMENS.
Machine configuration:
Item | Name of each unit | Quantity |
1 | Feeding unit | 1 |
2 | Folding unit | 1 |
3 | Stitching unit | 1 |
4 | Collecting unit | 1 |
5 | Turning binding unit | 1 |
6 | Transmitting part | 1 |
7 | Wire feeding device | 1 |
Technical Specification:
Model | QF-QD2600 |
Max. stitching speed | 1100 nails/min |
Stitching space | 30-100mm |
Stitching quantity | 1-99 stitches |
Sheet request | A,B,C,E,F flute, 3ply / 5ply corrugated sheet |
Stitching type | Single stitch/double stitch/ strengthening stitch |
Max. sheet size | 800x2600mm |
Min. sheet size | 300x800mm |
Feeding table stacking height | 900mm |
Creasing accuracy | ±0.5mm |
Deviation | ±1.5mm |
Total power | 32 KW |
Machine weight | 11000KG |
Required corrugated sheet | 3-ply / 5-ply corrugated sheet |
Wire specification | 2mm width, 0.65-0.75mm thickness |

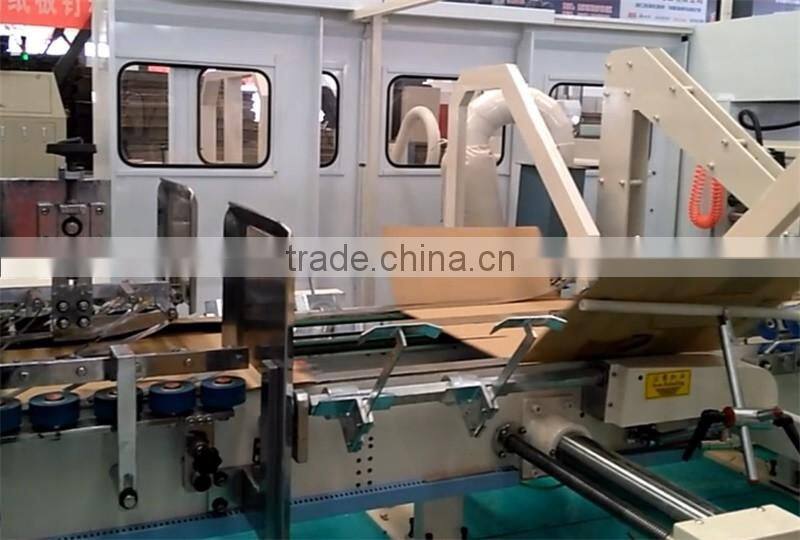

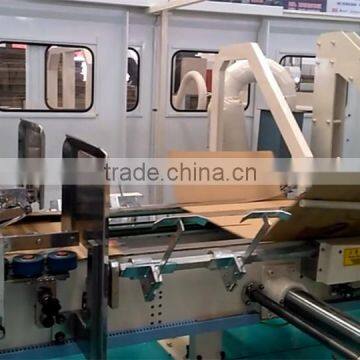

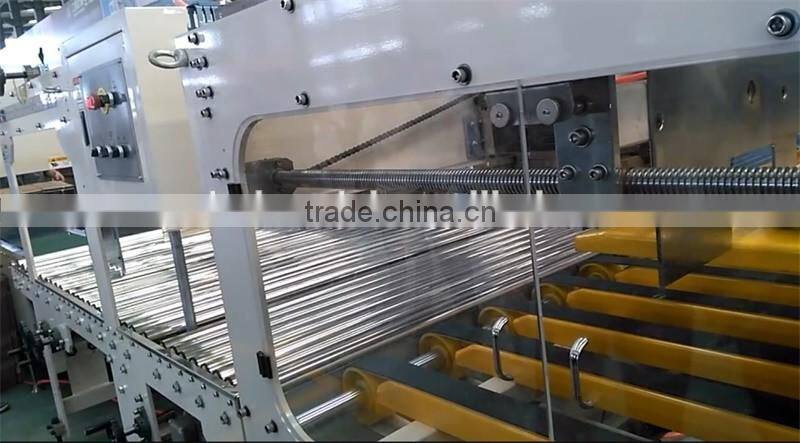

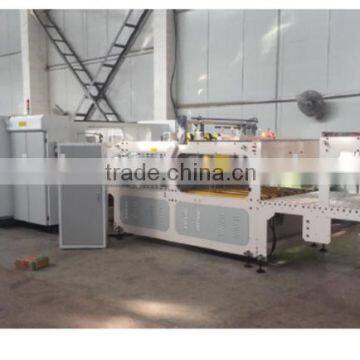

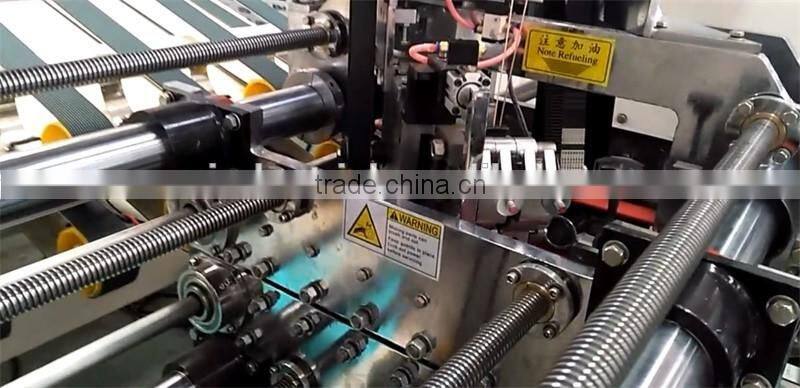

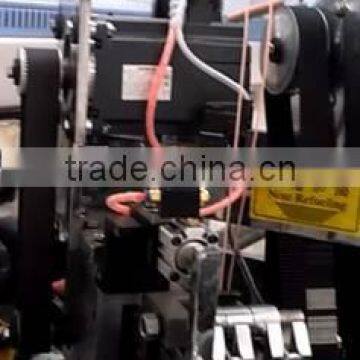

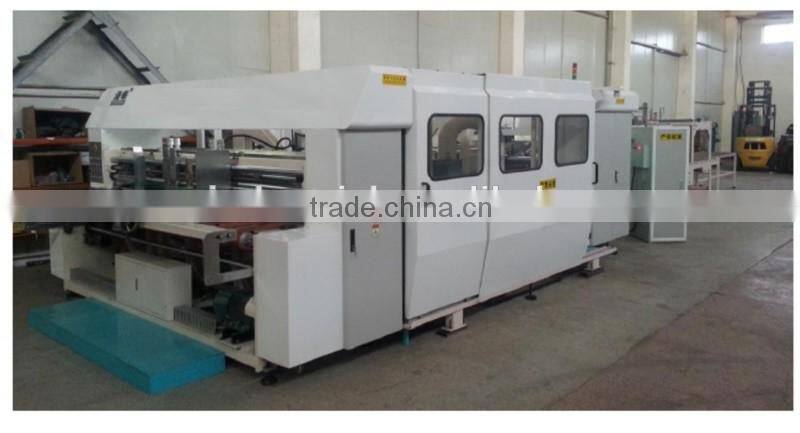

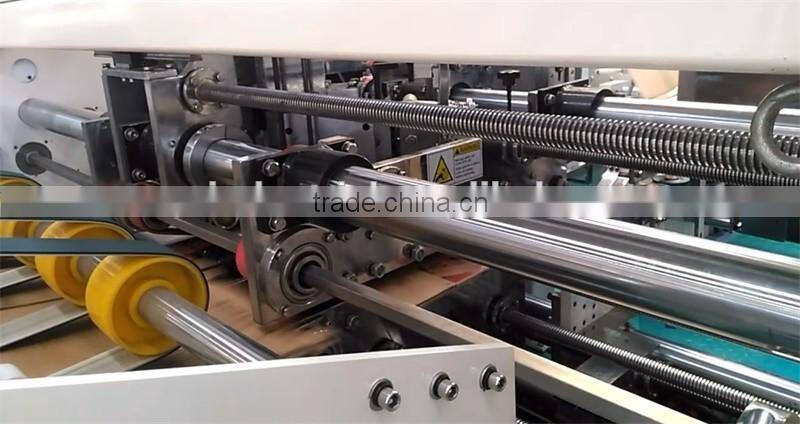

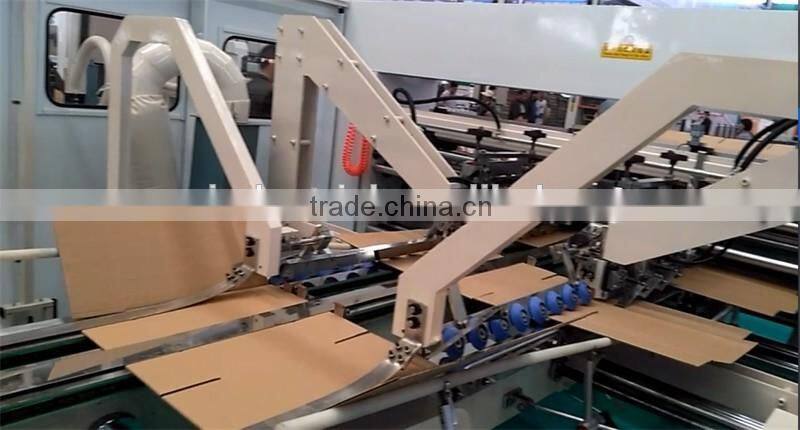

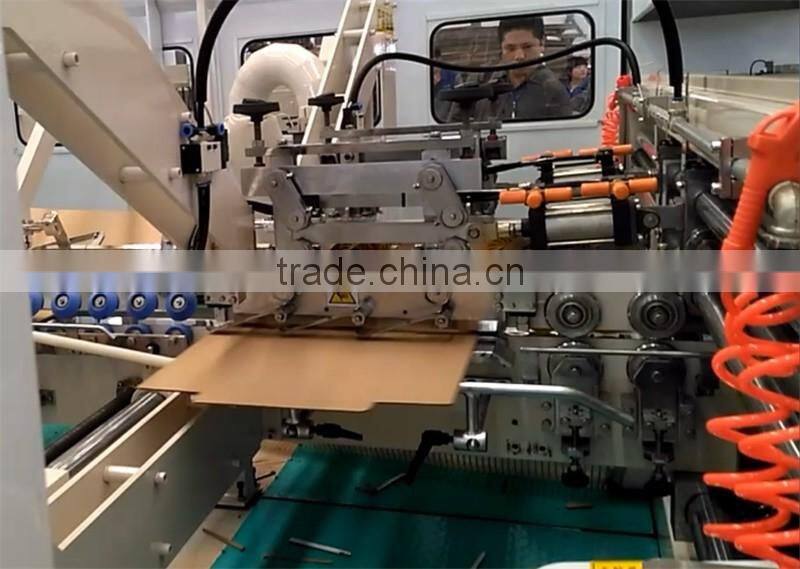

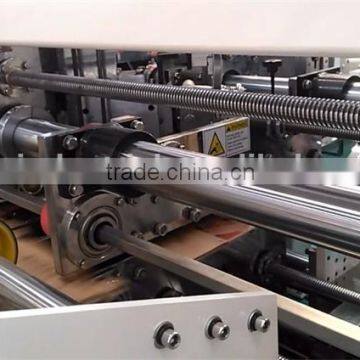

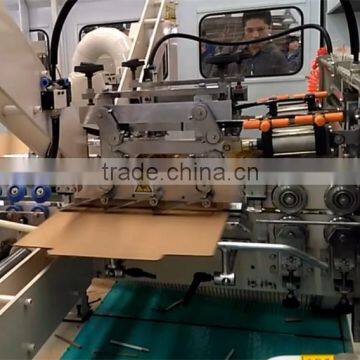

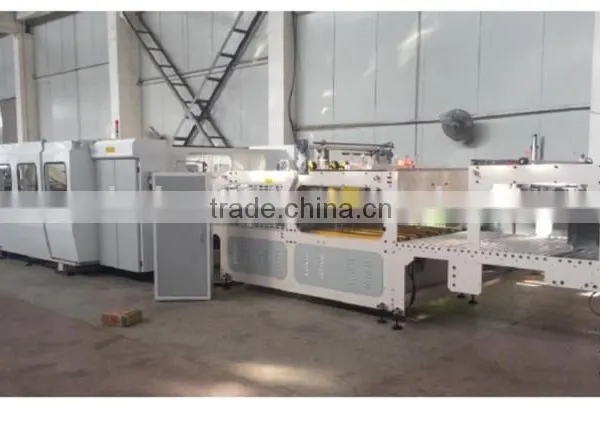

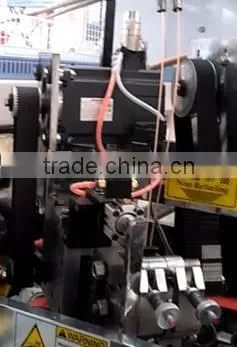

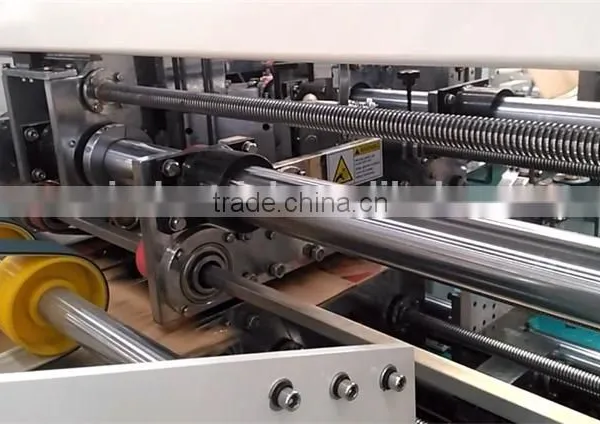

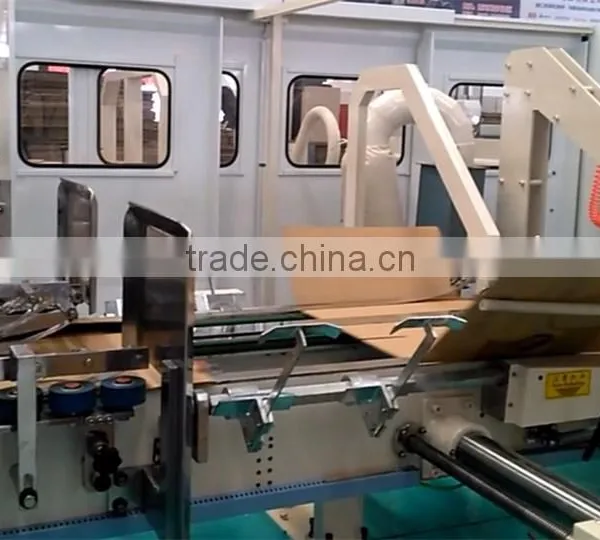

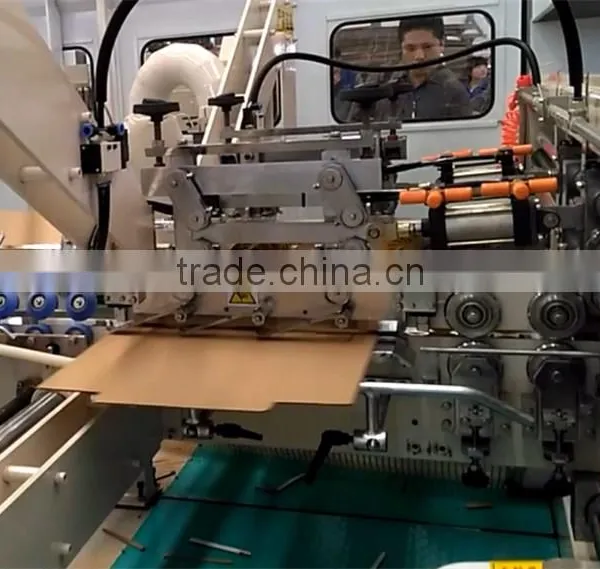

Photos:
Contact Us
- Amc (Shanghai) Industrial Development Company Limited
- Contact nameAndy Ton
- Phone086-21-60936125
- Address(Jiafuhui Plaza) Rm. 208, Bldg. 2, Lane 777, Fuhai Road
