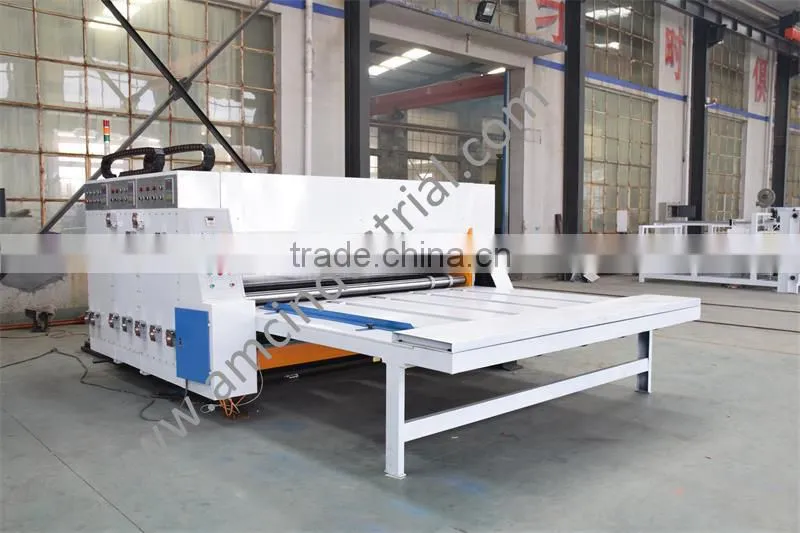

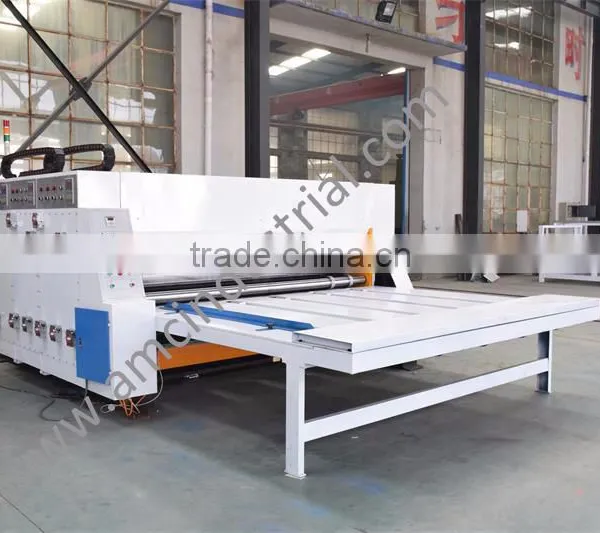

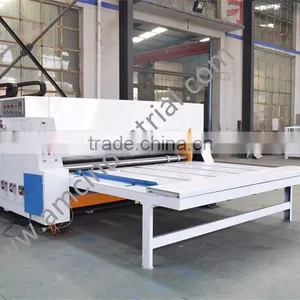

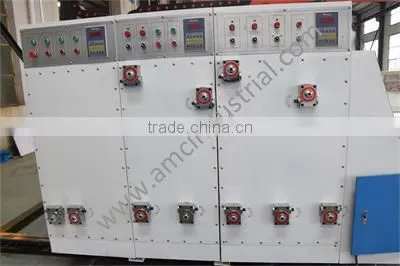

Chain Feeder Flexo Printer Slotter Die cutter
Specification:
Item | BYK 1400×2600 | BYK 1600×2600 |
Max. machine speed | 60 pcs/min | 60 pcs/min |
Economic machine speed | 20-40 pcs/min | 20-40 pcs/min |
Max. feeding size (L x W) | 1400×2600mm | 1600×2600mm |
Min. feeding size (L x W) | 380×600mm | 420×700mm |
Corrugated board thickness | 3-10mm | 3-10mm |
Max. printing size | 1350×2400mm | 1550×2400mm |
Standard printing forme thickness | 7.2mm | 7.2mm |
Feeding precision | ±1mm | ±1mm |
Printing precision | ±0.75mm | ±0.75mm |
Slotting precision | ±1.5mm | ±1.5mm |
Power required | 4KW | 4KW |
Dimension | 5200x3400x1800mm | 5200x4000x1800mm |
Machine body thickness | 40mm | 40mm |

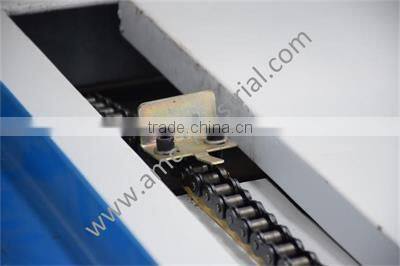

Feeding Unit
l Chain feeder
l Three rows chain can make sure stable feeding.
l Left/Right stop can be installed as per sheet size and to make sure sheet moving in right lengthways direction for precise printing.

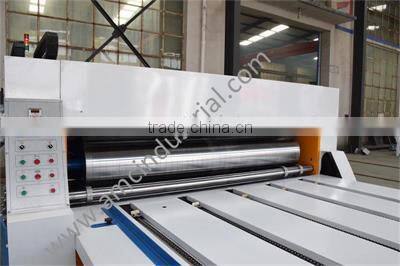

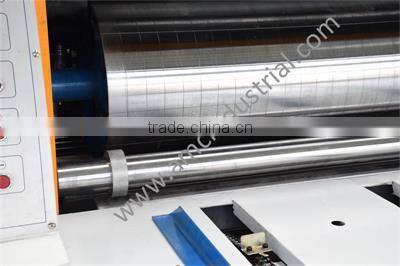

Printing Unit
l Top printing system
l Motorized control of register. Digital display
l Manual control of printing cylinder transverse movement: 10mm
l Manual impress roll nip control, , Dial display
l Automatic to go down and up of Anilox / Printing cylinder when feeder starts and stops
l Pneumatic locking system, motorized section close/open system

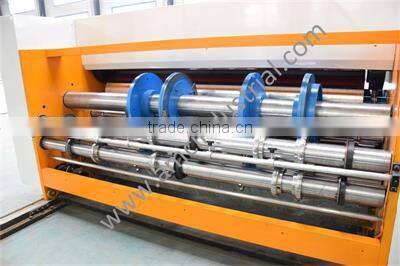

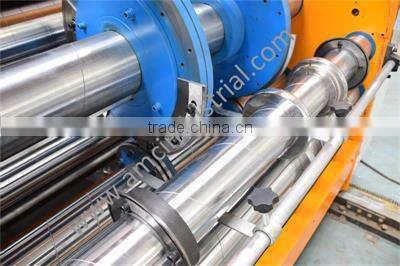

Slotting Unit
l Panel size: Manual control, Dial display
l Slot depth: Electric control, Touch screen display
l Box height: Manual control, Dial display
l Creaser nip control: Manual control, Dial display
l Slotter nip control: Manual control, Dial display
l Pneumatic locking system, motorized section close/open system
l Single slot system

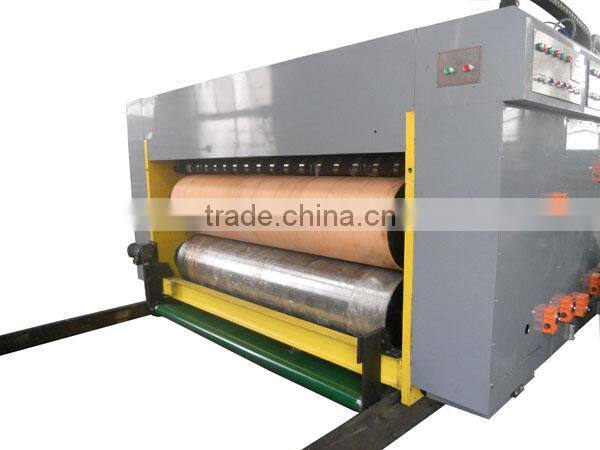

Die cutting Unit
l Die cylinder register: Motorized control, Touch screen display
l Die cylinder transverse moving: Range of 50mm
l Anvil roll nip control: Manual control, Dial display
l Pneumatic locking system, motorized section close/open system
l With compensation function, can effectively extend the using life of rubber anvil
